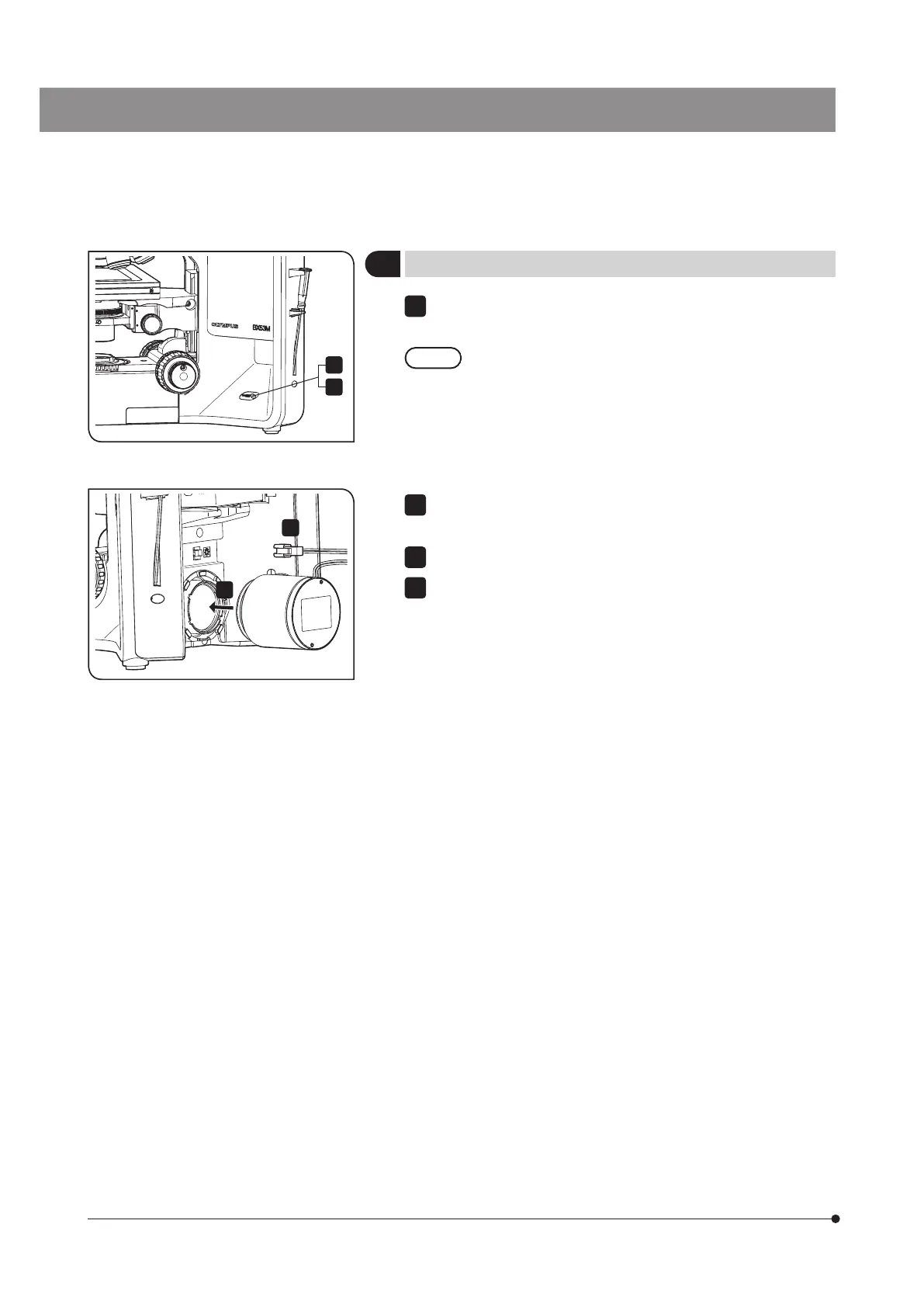

Attaching the light source for transmitted light illumination
2
4
Loosen the mounting screw on the right side of the microscope frame
using the Allen screwdriver.
Be careful, if the mounting screw is loosened too much, it
may be come off.
1
Insert the transmitted LED lamp housing in the light source mounting
hole until it touches the end.
Tighten the mounting screw using the Allen screwdriver.
Connect the cable for the transmitted LED lamp housing to the
connector on the back of the microscope frame. For details, see Cable
connections (page 115).
2
3
4
