Olympus BX53M - Inserting the MIX Slider for Reflected Light Observation; Turning on the Illumination of the MIX Slider for Reflected Light Observation

66

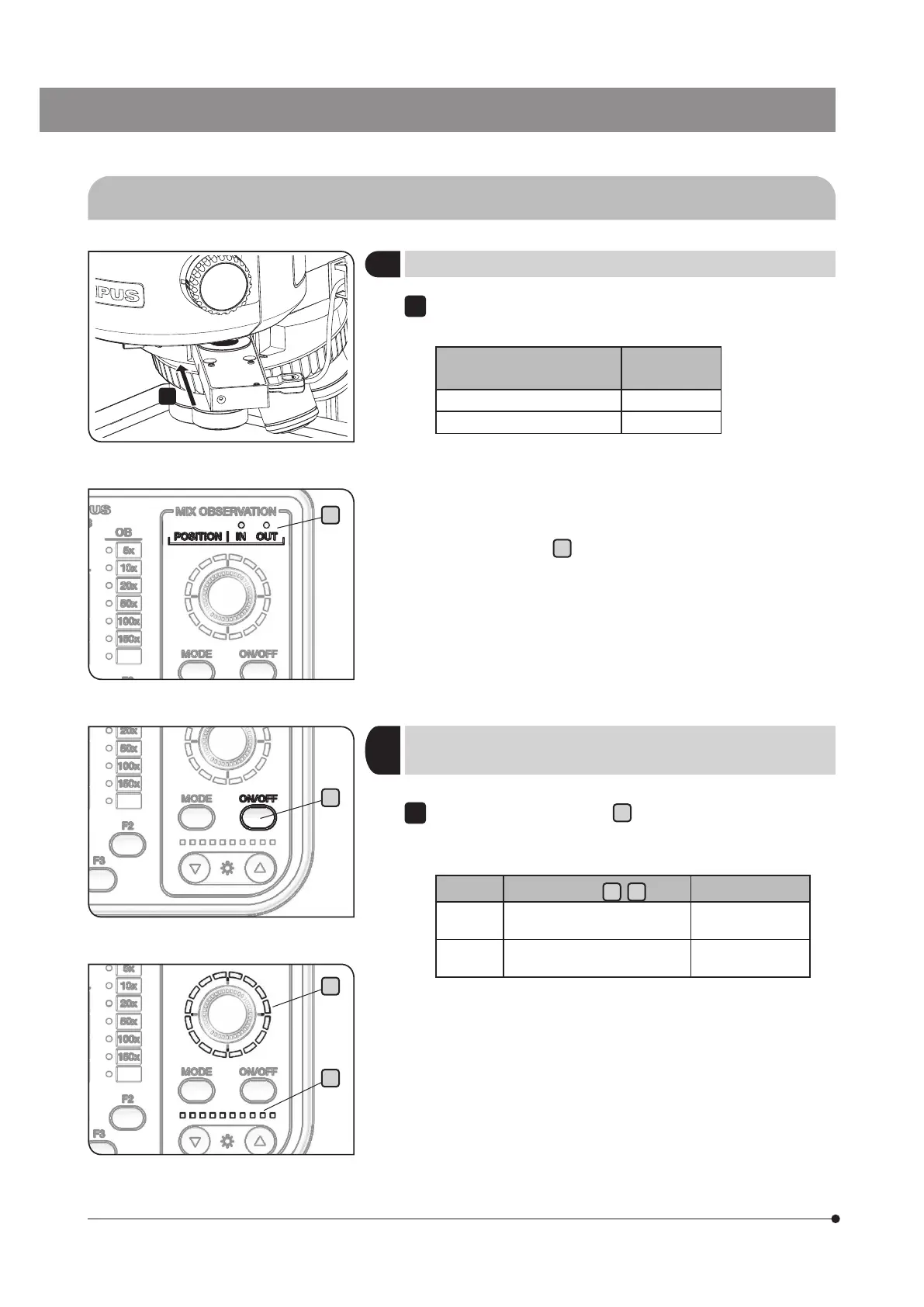

4-13 Inserting the MIX slider for reflected light observation
Push the MIX slider for reflected light observation (U-MIXR) in the
second level (position where the clicking sound is heard).
MIX slider for reflected light
observation position
Light path
First level (pulled out) OUT
Second level (pressed in) IN
1
1
Inserting the MIX slider for reflected light observation
1
a
a
b
c
The state whether the MIX slider for reflected light observation is
engaged in or removed from the light path can be checked by the
POSITION indicator
a
of the hand switch (BX3M-HS).
If you press the ON/OFF button
a
of the hand switch (BX3M-HS) to set
it to ON, the illumination of the MIX slider for reflected light observation
(U-MIXR) turns ON.
State
Indicator (
b
,
c
)
Function
ON Turns ON.
The illumination
turns ON.
OFF Turns OFF.
The illumination
turns OFF.
1
2
Turning ON the illumination of the MIX slider for
reflected light observation
