Olympus BX53M - When BX3 M-URAS-S Is Combined

18

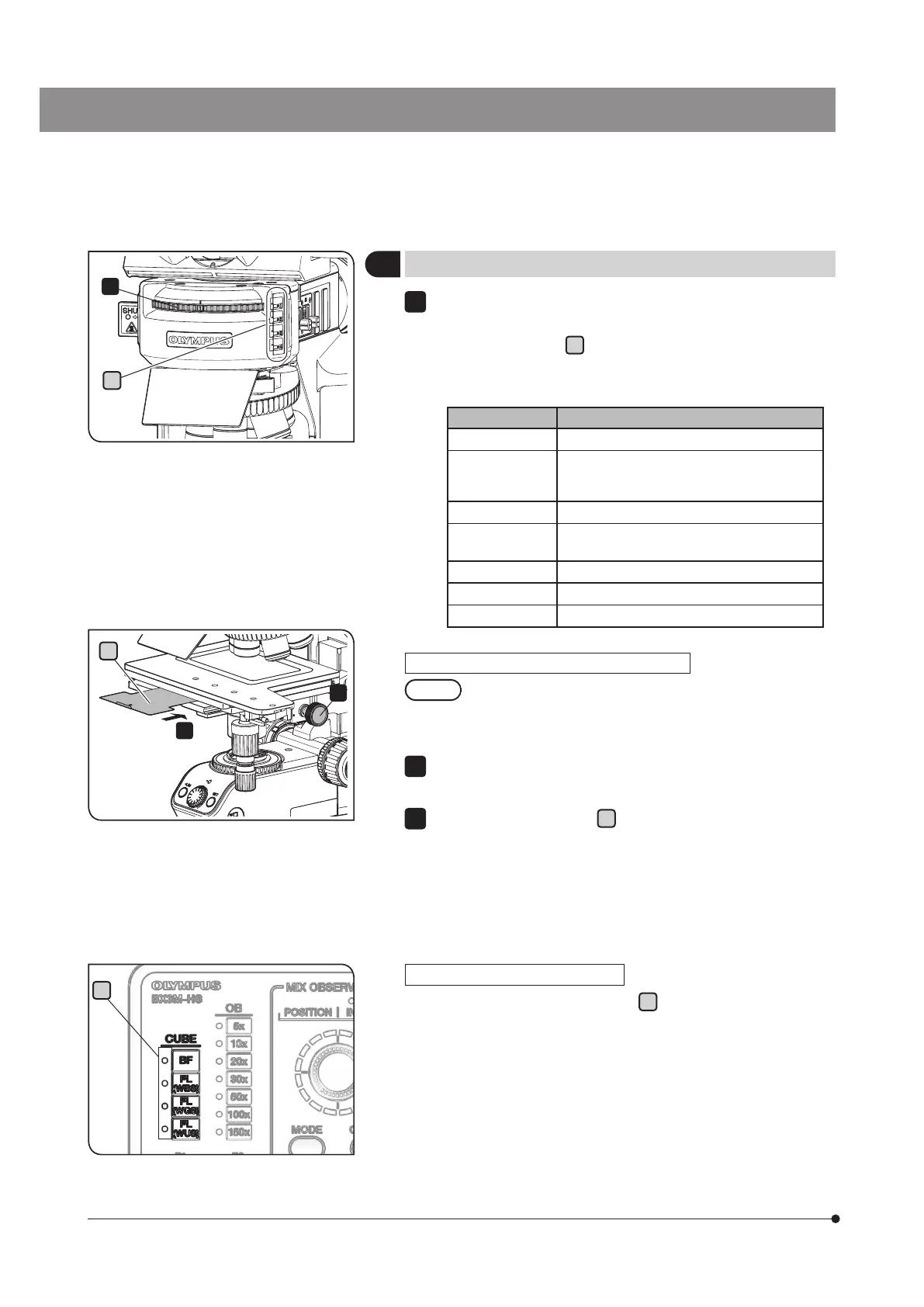

Turn the turret to select the observation method.
You can check which No. selects which observation method by
the inscription pocket
a
. Note that the indicator sheet should be
inserted properly in the inscription pocket when attaching the mirror
unit.
Indicator sheet Function
BF Brightfield observation
BFL
Brightfield observation
(Use when the mercury lamp housing is
combined.)
DF Darkfield observation
DIC/PO
Differential interference contrast observation
/ Polarization observation
FL(WBS) Fluorescence observation with B excitation
FL(WGS) Fluorescence observation with G excitation
FL(WUS) Fluorescence observation with U excitation
When performing the fluorescence observation
If you perform the fluorescence observation with the
microscope frame (BX53MTRF-S), attach the provided light
shield sheet to prevent the in-house fluorescence caused
by the transmitted light illumination optical system.
Turn the condenser height adjustment knob to lower the condenser
sufficiently.
Insert the light shield sheet
a
into the space of the stage.
1
NOTE
1
2
1
a
a
4
When BX3M-URAS-S is combined
When the hand switch is combined
The lighting of the CUBE indicator
a
of the hand switch (BX3M-HS)
is changed according to the selection of the turret.
a
1
2
