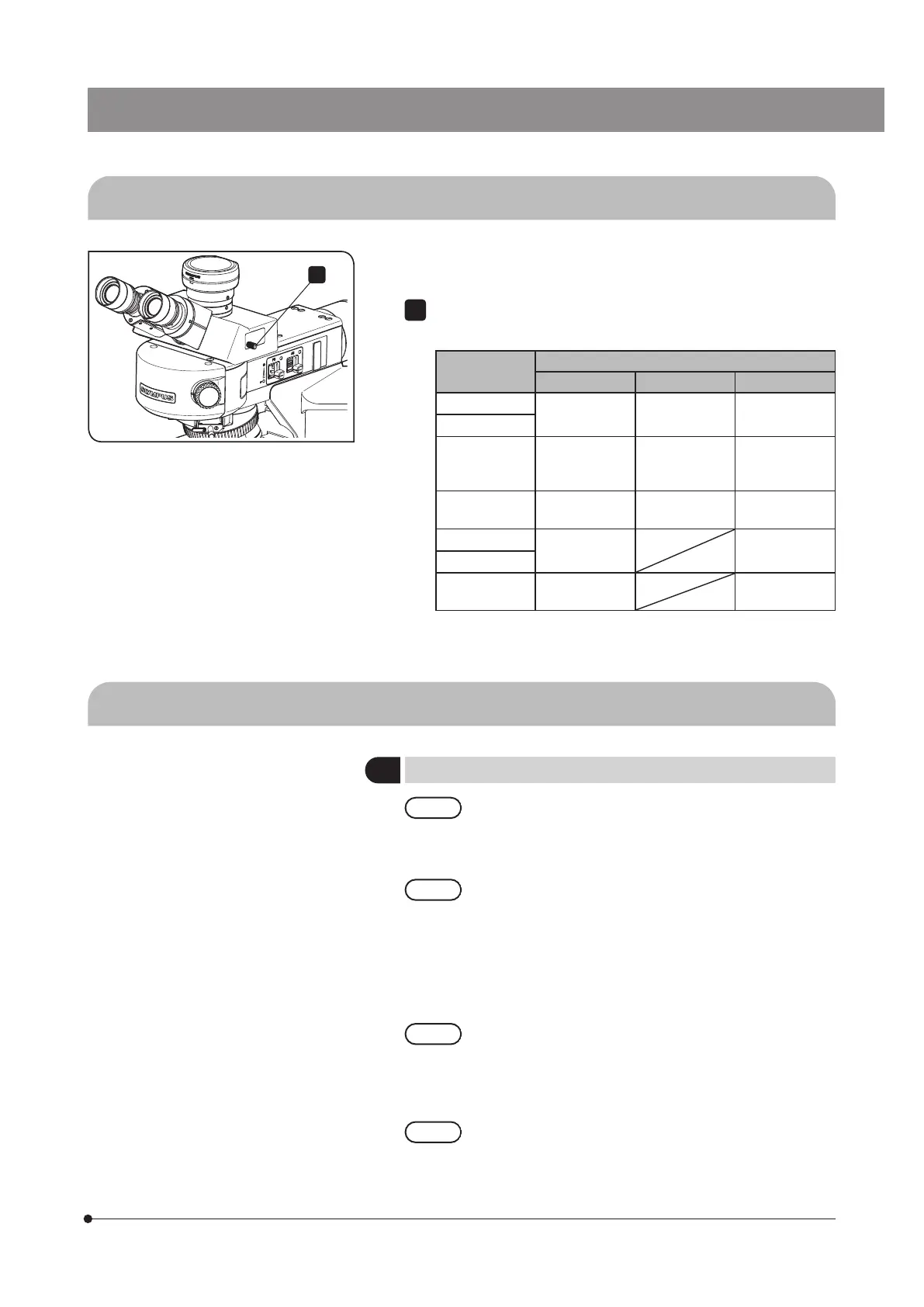

3-5 Changing between the eyepiece light path and the camera light path
You can select the light path for observing with the eyepiece or the
light path for observing with the display, etc. through the camera.
Slide the light path selection lever of the trinocular tube to select the
light path.
Trinocular tube
Light path selection lever position
Pressed in Middle Pulled out
U-TR30-2
Eyepiece 100%
Eyepiece 20%
Camera 80%
Camera 100%
U-SWTR-3
U-TR30IR Eyepiece 100%
Eyepiece 0%
Camera 0%
(Shutter)
Camera 100%
U-TTR-2
Eyepiece 50%
Camera 50%
Eyepiece 100% Camera 100%
U-ETR-4
Eyepiece 100% Camera 100%
U-SWETR
U-SWETTR-5 Eyepiece 100%
Eyepiece 20%
Camera 80%
1
1
The maximum load weight when the stage plate is combined
with the stage with coaxial knobs on the bottom right (left)
(U-SVRM/U-SVLM) is described as follows:
· Combination with U-MSSP : 500 g
The maximum load weight when the stage plate is combined
with the 4x4 inch stage (U-SIC4R2/U-SIC4L2) is described as
follows:
· Combination with U-MSSP4*
1
: 1 kg
· Combination with U-MSSPG : 500 g
*
1
If the stage plate is removed, the sample with the maximum
weight of 1.5 kg can be placed on the stage directly.
The maximum load weight when the right hand control
150 mm x 100 mm stage (U-SIC64) is combined with the
microscope is described as follows:
· U-SIC64 : 3 kg
· Combination with U-SIC64 and U-SPG64 : 500 g
If the sample exceeding the specified weight is placed
on the stage, the feeling of stage movement will be
worsened or the stage will be worn.
TIP
TIP
TIP
NOTE
3-6 Placing a sample on the stage
1
Placing a sample
