Olympus BX53M - When BX3 M-RLAS-S Is Combined

61
BX53M
b
a
4
6
3
7
5
c
d
Insert a stick with a fine point, such as a precision screwdriver, etc. in
the notch
a
and catch the cover to remove it.
3
Loosen the screw
b
to unlock.
4
2

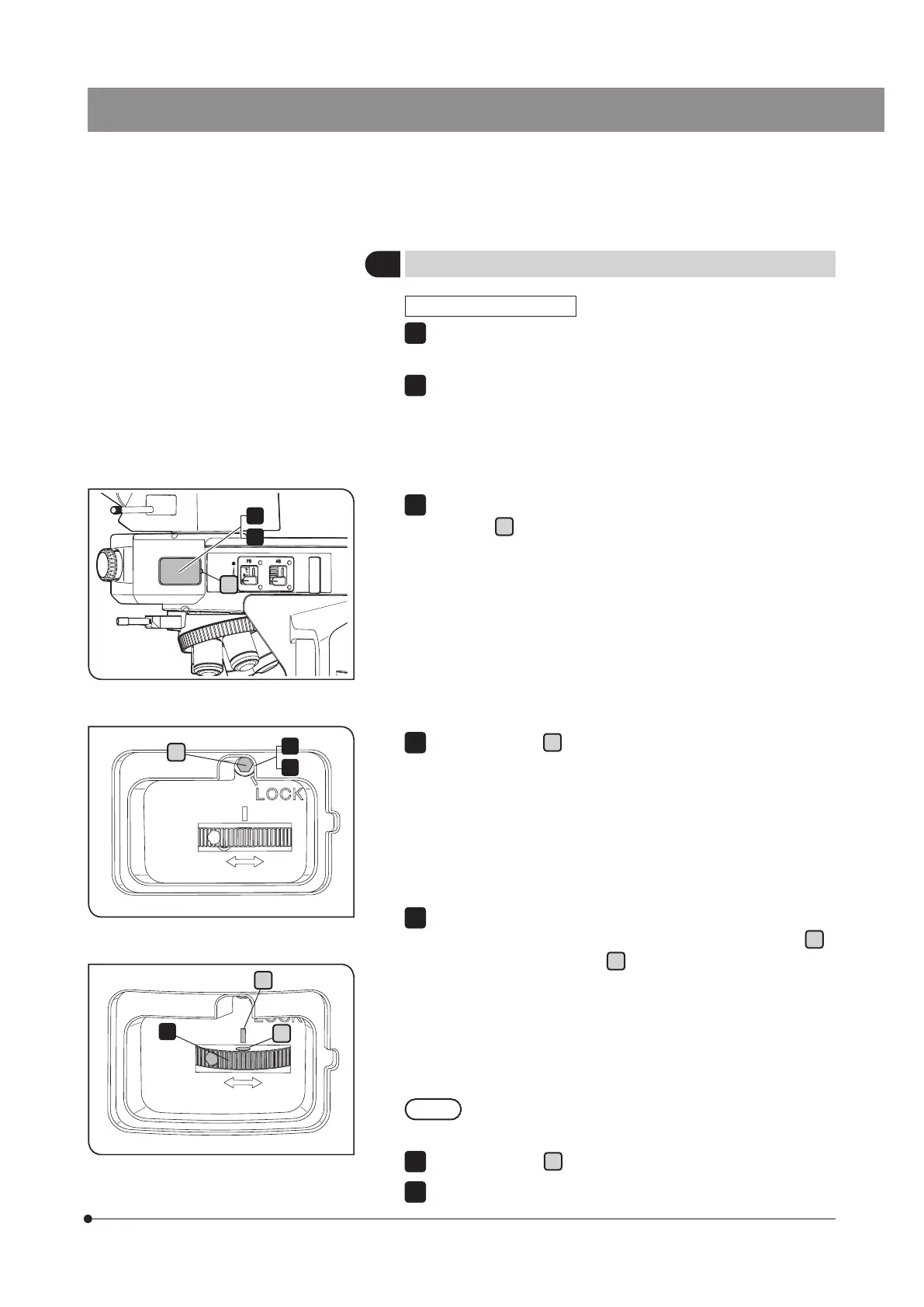

When BX3M-RLAS-S is combined
Adjusting the analyzer finely
If the DIC slider is engaged in the light path, remove it from the light
path. For details, see "4-10 Inserting the DIC slider" (page 62).
Engage the 10X objective or 20X objective in the light path and bring
the sample into focus approximately.
1
2
Turn the dial to adjust the analyzer.
Observation with crossed Nichols*: Align the white circle index
c
of the dial with the white line
d
.
Observation without crossed Nichols*: Turn the dial while looking at
the observation image and align it with the position where you can
view the desired observation image.
*
The crossed Nichols means the state that the field of view becomes the
darkest.
During DIC observation, the analyzer rotation dial must be set
to the crossed Nichols state.
Tighten the screw
b
to lock the dial rotation.
Close the cover to return to the original state.
5
TIP
6
7
