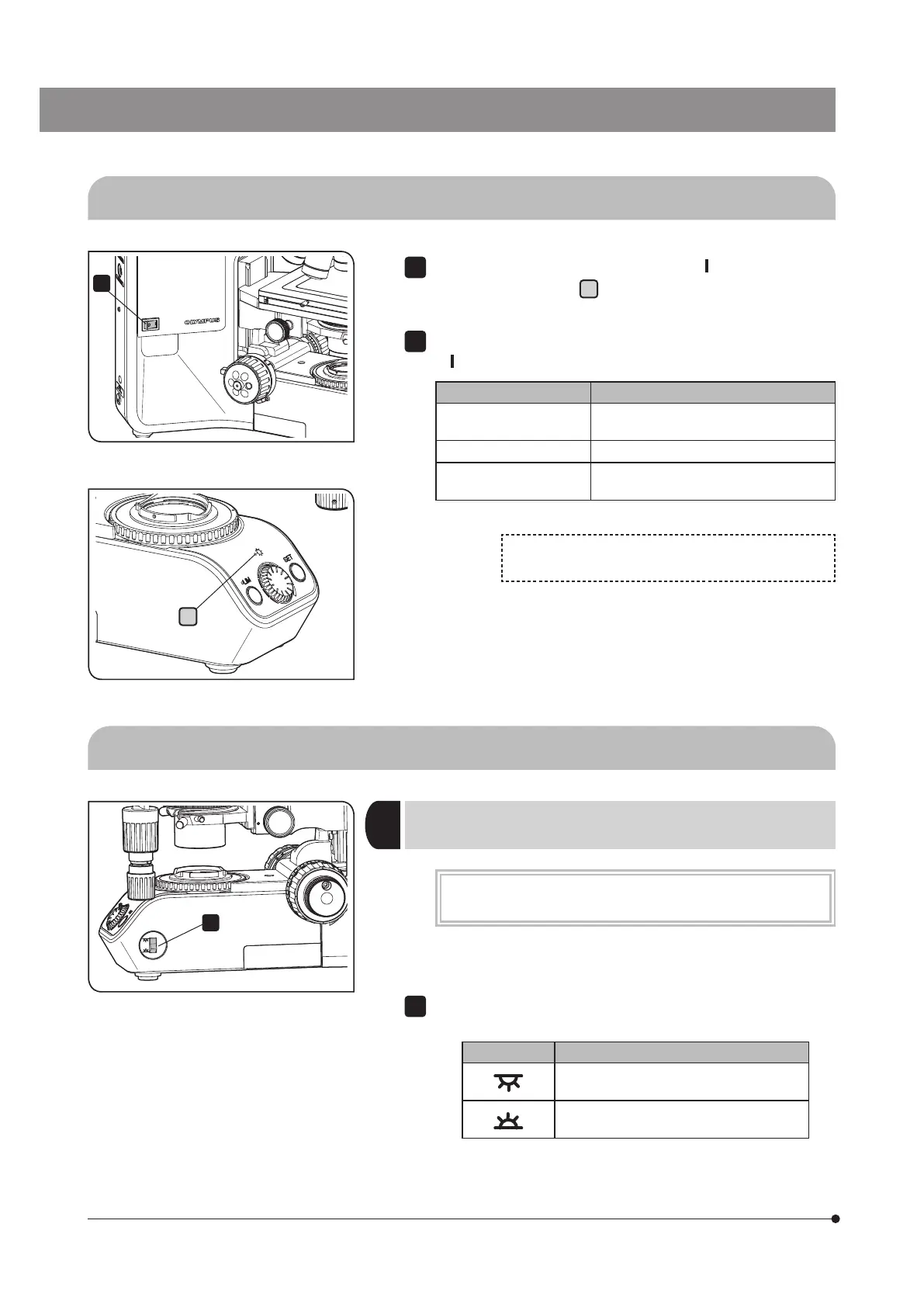

Olympus BX53M - Turning on the Main Switch; Selecting the Illumination; Changing between the Reflected Light Illumination and the Transmitted Light; Illumination

16
Set the main switch of the microscope frame to (ON). When the power
is ON, the pilot indicator
a
turns ON. In addition, the beep sound is
heard once if the control box (BX3M-CB) is combined.
If following units are combined, set the main switch of respective unit
to
(ON).
Combinable units Unit to set to ON
Mercury lamp housing
Main switch of the power supply for
mercury burner (U-RFL-T)
Light source LED and LDP light source (U-LGPS)
Halogen lamp housing
Main switch of the halogen lamp power
supply unit (TH4)
For details, refer to the instruction manual provided
with the respective unit.
1
2
This function is available only with the microscope frame
(BX53MTRF-S).
Changing between ON and OFF of the reflected LED lamp housing and
the transmitted LED lamp housing allows you to select the reflected
light illumination or the transmitted light illumination.
Select the LED lamp housing lighted using the transmitted/reflected
light switch.
Display Function
The LED lamp housing on the reflected
light illumination side turns ON.
The LED lamp housing on the transmitted
light illumination side turns ON.
1
1
Changing between the reflected light illumination
and the transmitted light illumination
3-3 Selecting the illumination
3-2 Turning ON the main switch
1
1
a
