33
BX53M
1
a

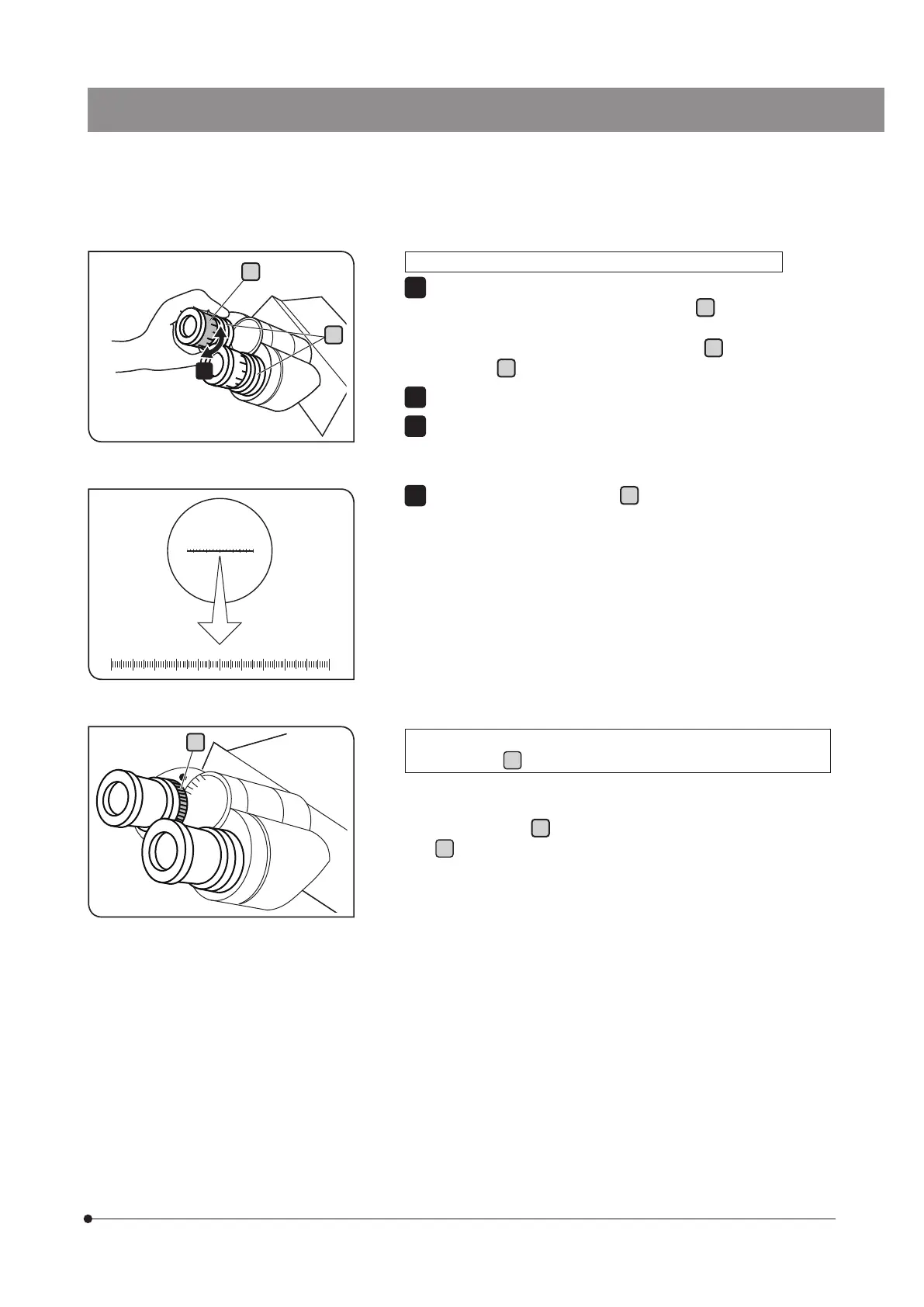

When the eyepiece is equipped with the eyepiece micrometer
While looking into the eyepiece equipped with the eyepiece
micrometer, turn the diopter adjustment ring
b
to adjust so that the
scales or lines of the eyepiece micrometer in the field of view are clearly
visible. If you turn the diopter adjustment ring
b
, keep pressing the
lower part
a
of the eyepiece.
Place the sample.
Engage the 10X objective in the light path. While looking into the
eyepiece equipped with the eyepiece micrometer, turn the coarse/
fine focusing knobs to bring the sample into focus.
Turn the diopter adjustment ring
b
of the eyepiece not equipped with
the eyepiece micrometer to bring the sample into focus.
1
3
4
When the observation tube is equipped with the interpupillary distance
adjustment ring
c
Perform the same operation as described above.
However, since the eyepiece is not equipped with the diopter
adjustment ring
b
, use the interpupillary distance adjustment ring
c
of the observation tube.
b
c
