17
Getting Started
3
3.4 CONNECTING SENSOR INPUTS (Continued)

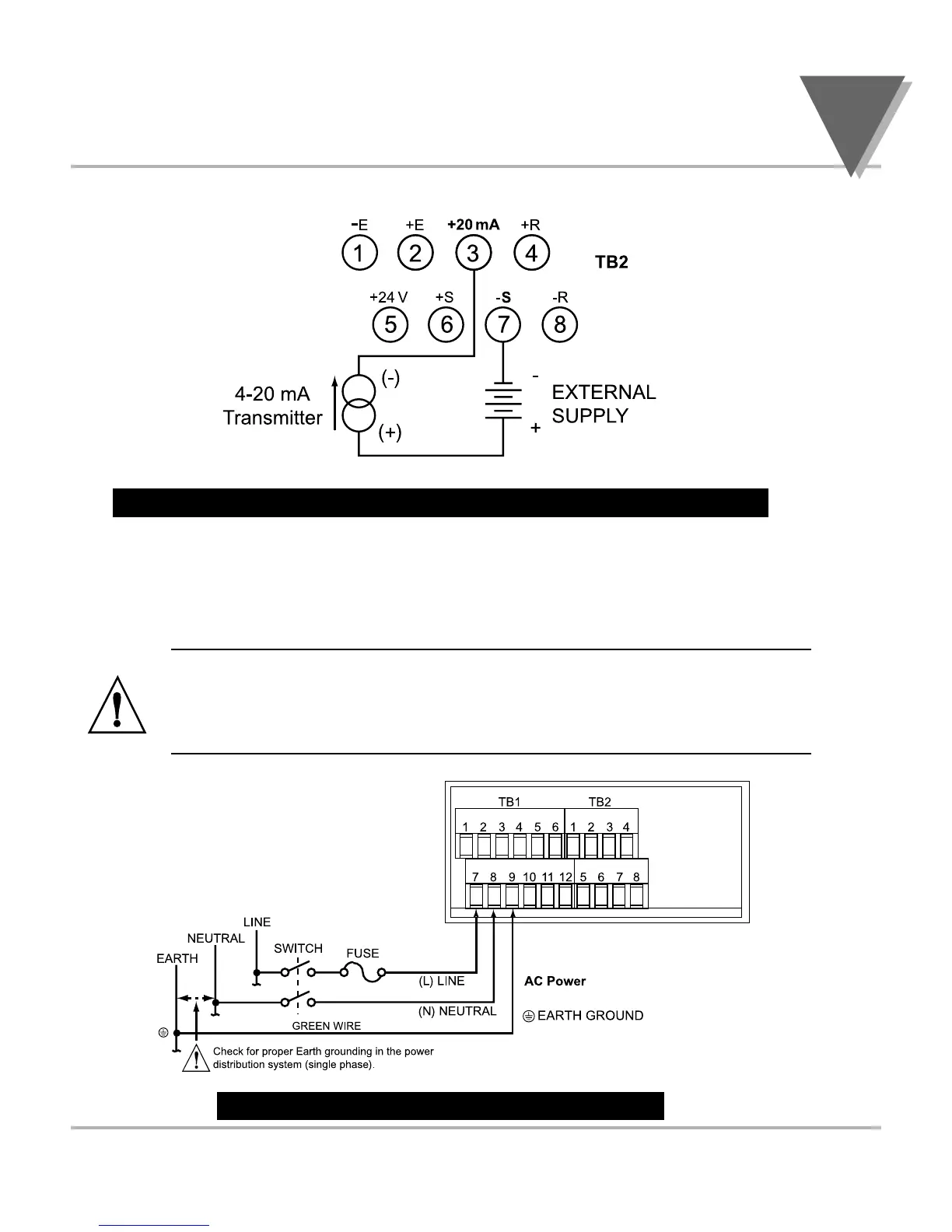

Figure 3-10. Current Input Connections with External Excitation
3.5 CONNECTING MAIN POWER
Connect the AC main power connections as shown in Figure 3-11.
WARNING: Do not connect AC power to your device until you have
completed all input and output connections. This device must only be
installed by a specially trained electrician with corresponding qualifications.
Failure to follow all instructions and warnings may result in injury!
Figure 3-11. Main Power Connections - AC
To Next Page
