3.6 CONNECTING EXTERNAL TARE SWITCH
Connect external tare connections as shown in Figure 3-13.

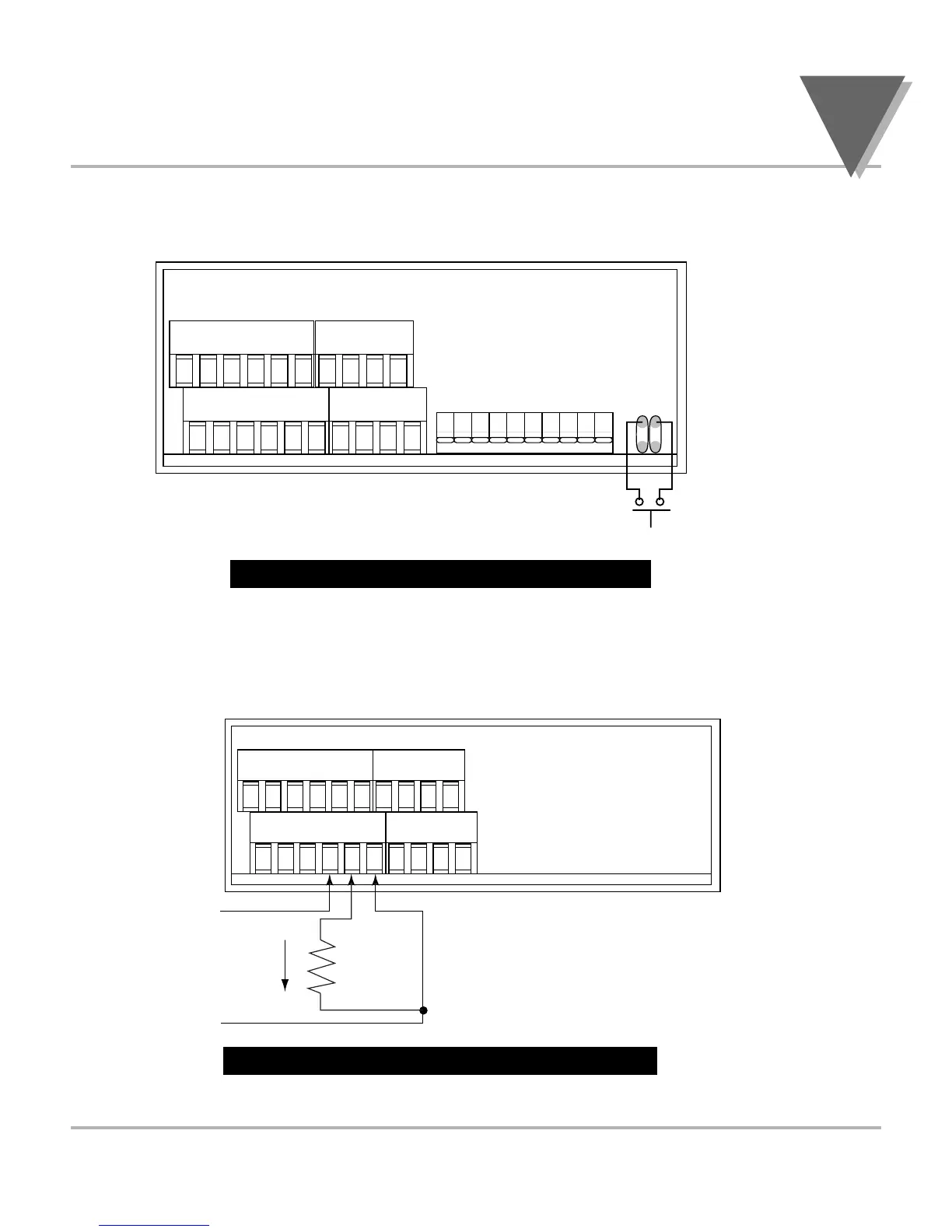

Figure 3-13. External Tare Connections
3.7 CONNECTING ANALOG AND RELAY OUTPUTS
If you have purchased a meter with analog or dual relay or isolated analog output, refer
to the following drawings for output connections.
Figure 3-14. Analog Output Connections
TB1 TB2
ANALOG
VOLTAGE
1234 123456
78910 567811 12
+
-
+
-
0-10V dc
ANALOG
CURRENT
0-20mA
or
4-20mA
ANALOG
RTN
TB1 TB2
1234 123456
78910 567811 12
J1
1 2
3 4
EXTERNAL TARE SWITCH
CLOSED
OPEN
S1
