Omega MICROMEGA CN77000 series User Manual

part
2
S ETUP
6
Round Mount Micro Controller Mounting Instructions
1. Separate the display from the meter by squeezing the case (where shown) and then
unplugging the cable from the meter.
2. Slide the retainer over the rear of the case, but do not engage serrations on
case.
3. Pass the cable (from the display) thru a 1
3
/
4
" diameter hole in the mounting
panel and connect to the meter (take care to center the
connector on the mating pins). While squeezing the case,
press the display and meter squarely together
until they connect.
4. Check the display and gasket for proper
alignment, then slide the retainer tight against
the backside of the mounting panel.

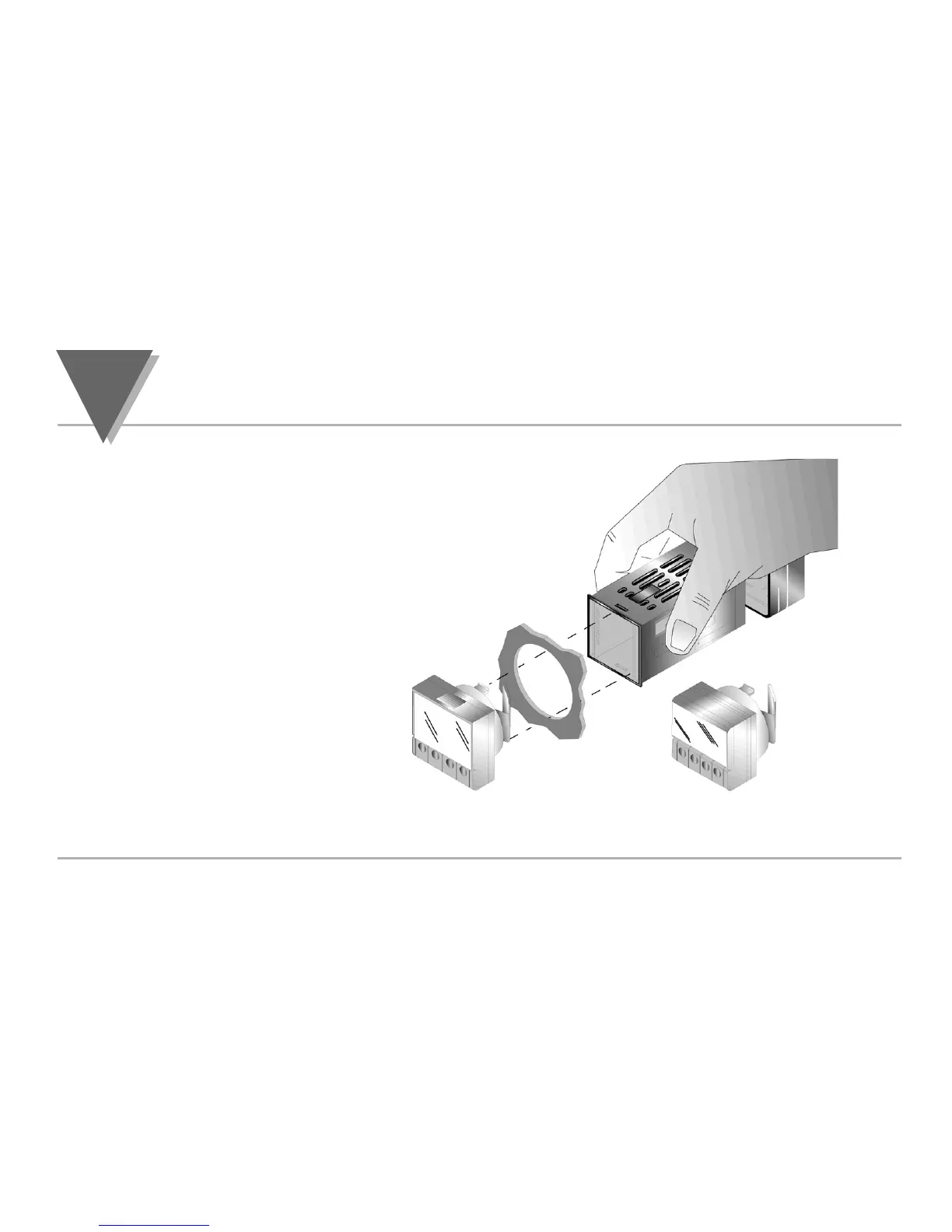

Figure 2.1b Ñ Mounting the Round Mount Controller
Round Mount
