PLATINUMTM Series Navigation
4.3 Level 1 Menu
Initialization Mode: These settings are rarely changed after initial setup. They include
transducer types, calibration, etc. These settings can be password-protected.
Programming Mode: These settings are frequently changed. They include Set points,
Control Modes, Alarms, etc. These settings can be password-protected.
Operating Mode: This mode allows users to switch between Run Mode, Standby Mode,
Manual Mode, etc.
4.4 Circular Flow of Menus
The following diagram shows how to use the LEFT and RIGHT buttons to navigate around a menu.

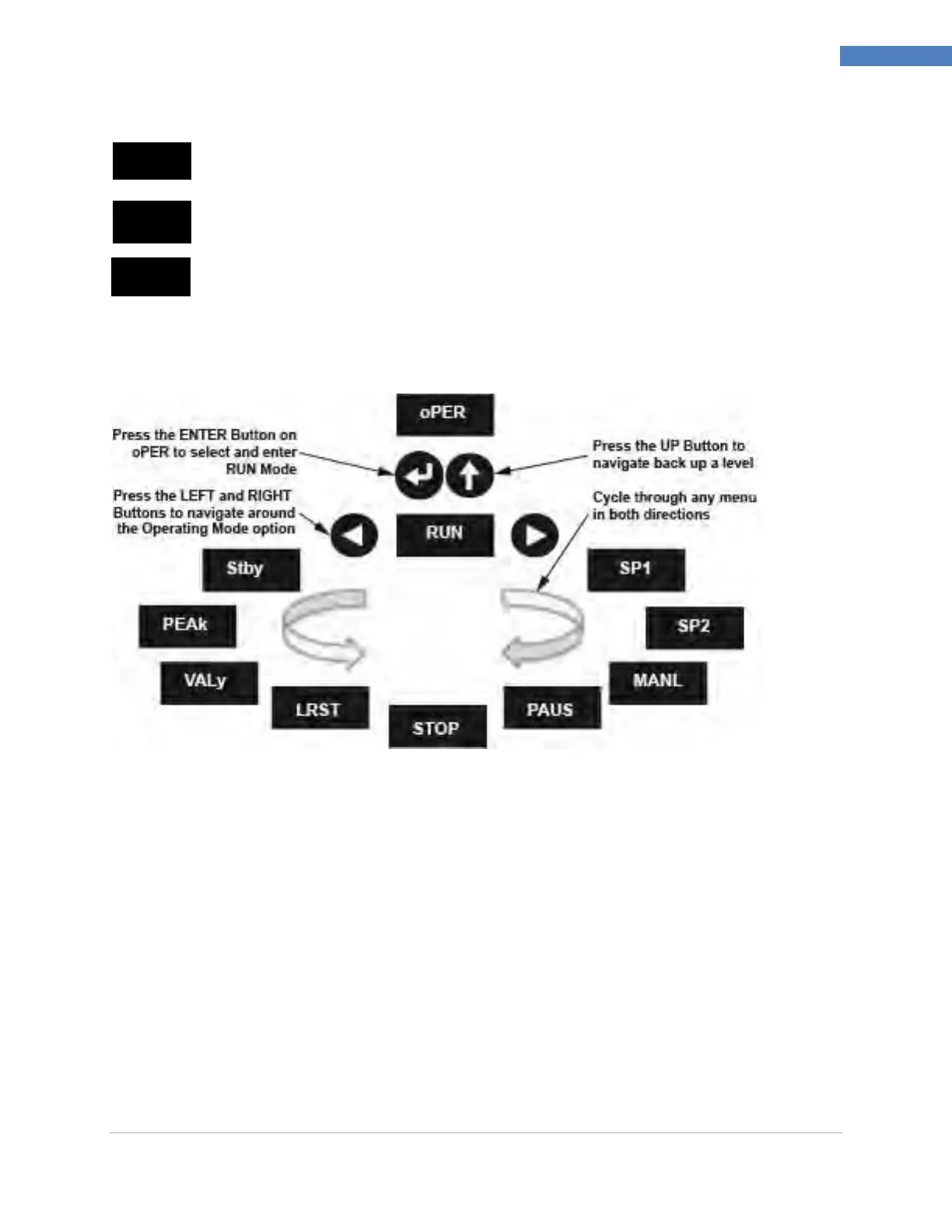

Figure 9 Circular Flow of Menus.
INIt
PRoG
oPER
