PLATINUM

Series Controllers User’s Guide

M5451 Omega Engineering | www.omega.com

Reference Section: Initialization Mode (INIt)

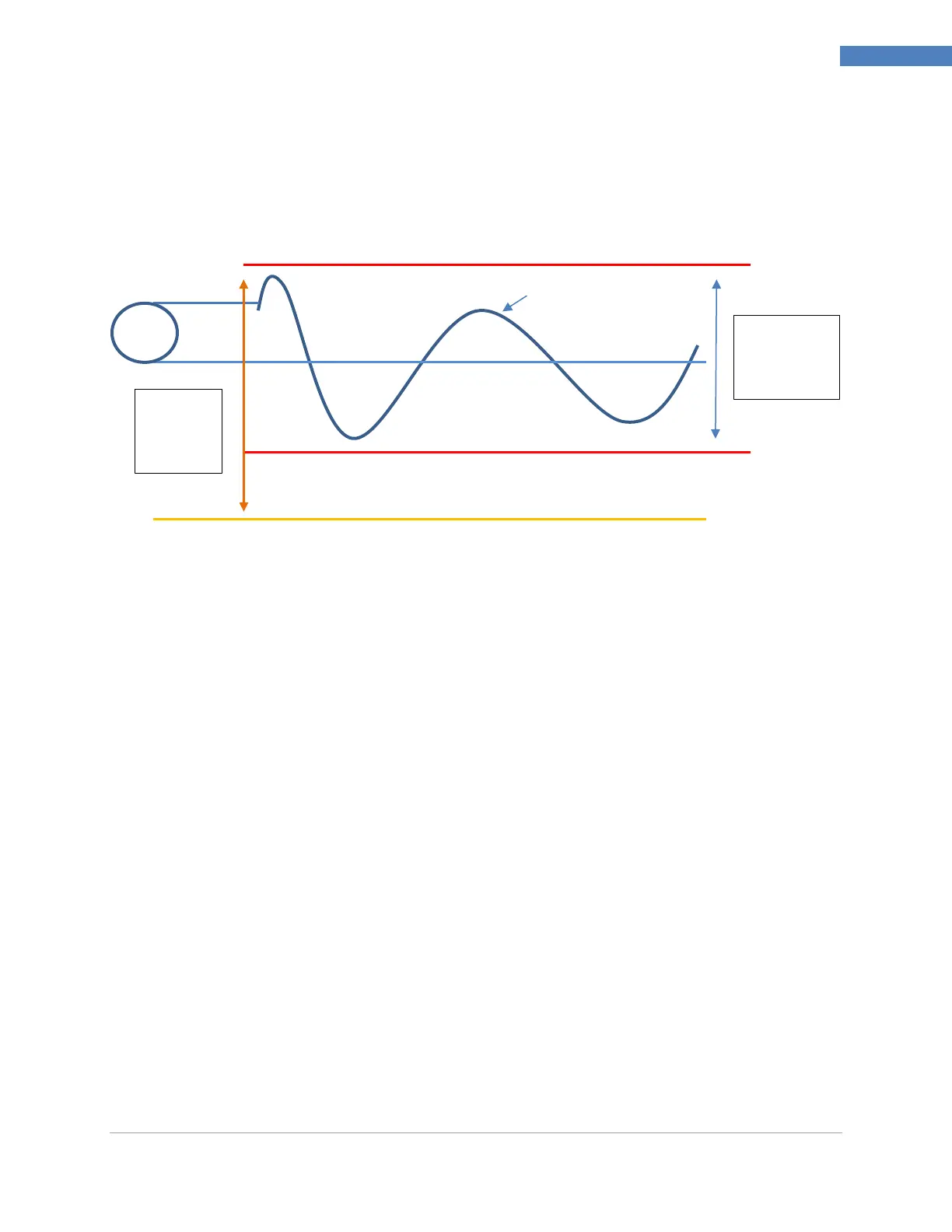

6.1.4.1 Ratiometric Inputs

Ratiometric inputs allow applying an external reference voltage (Vref) used by the Analog / Digital

converter and the measured signal level directly proportional to the reference voltage. The external

reference voltage must be in the range of 1.5 – 2.5 Vdc and applied between APWR and ARTN. An

internal 2.0 k ohm resistor is applied between the APWR and ARTN terminals.

Reference

Voltage

Common

Mode

Voltage

ARTN

AIN +

AIN -

Measured Signal as %

of Reference Voltage
