Advanced Functions
By applying the Copy from Zoom function the frequency span is narrower,
resulting in a higher resolution of the measured curve.

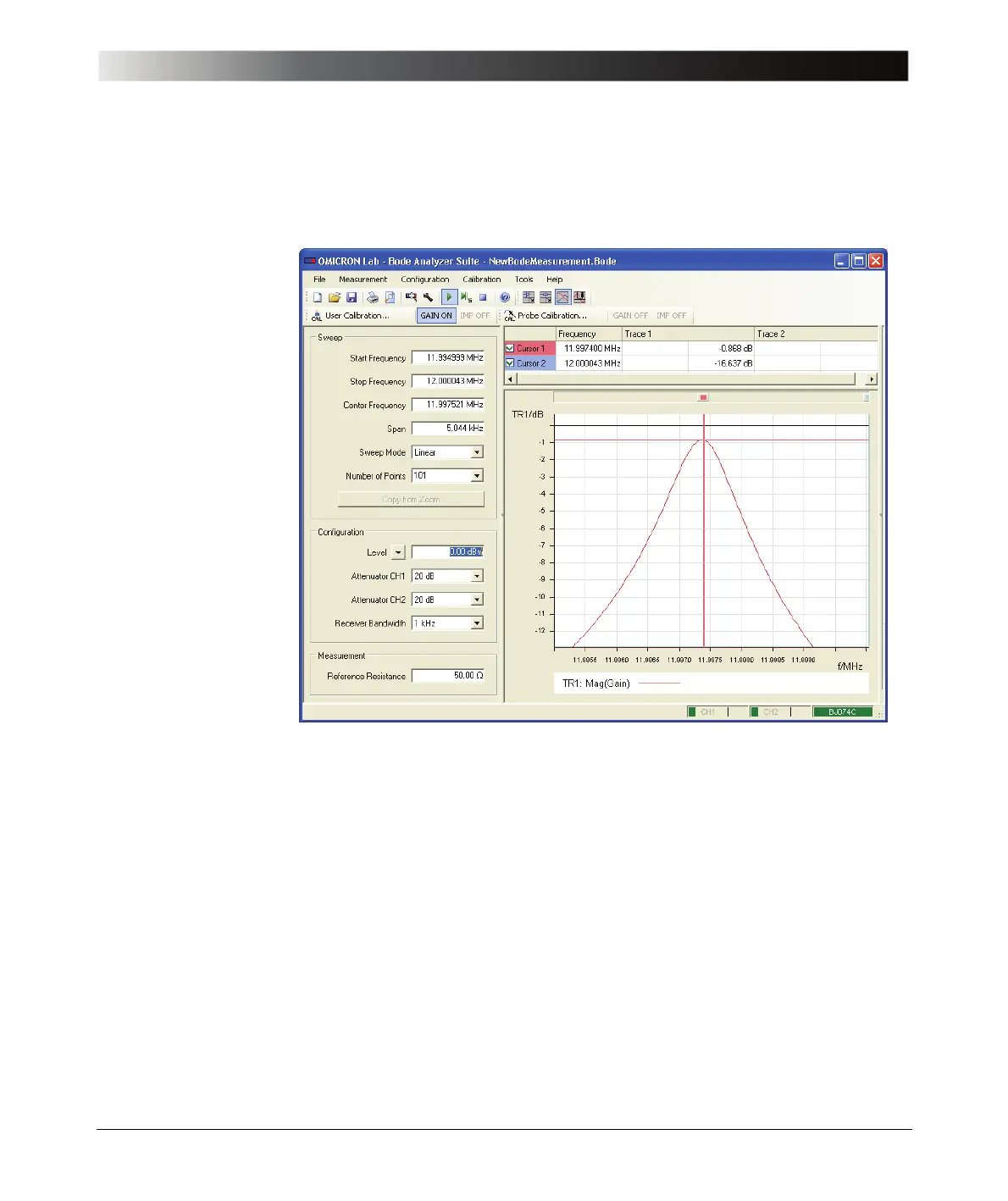

Figure 9-11:
Measured curve with
sweep settings copied
from the zoom area
After using the Copy from Zoom function, the original sweep settings are lost.
If used, the User Calibration is switched off, too.
Hint: Compare the frequency sweep settings before (see Figure
9-10: "Measured curve with initial sweep settings" on page 108) and after
applying the Copy from Zoom function (see Figure 9-11: "Measured curve with
sweep settings copied from the zoom area" above).
