Bode 100 User Manual

110

Special Zoom

Function

In the Zoom Mode, when moving the pointer over an axis the pointer becomes

a double-headed arrow. Then click the left mouse button to zoom in and the right

mouse button to zoom out respectively.

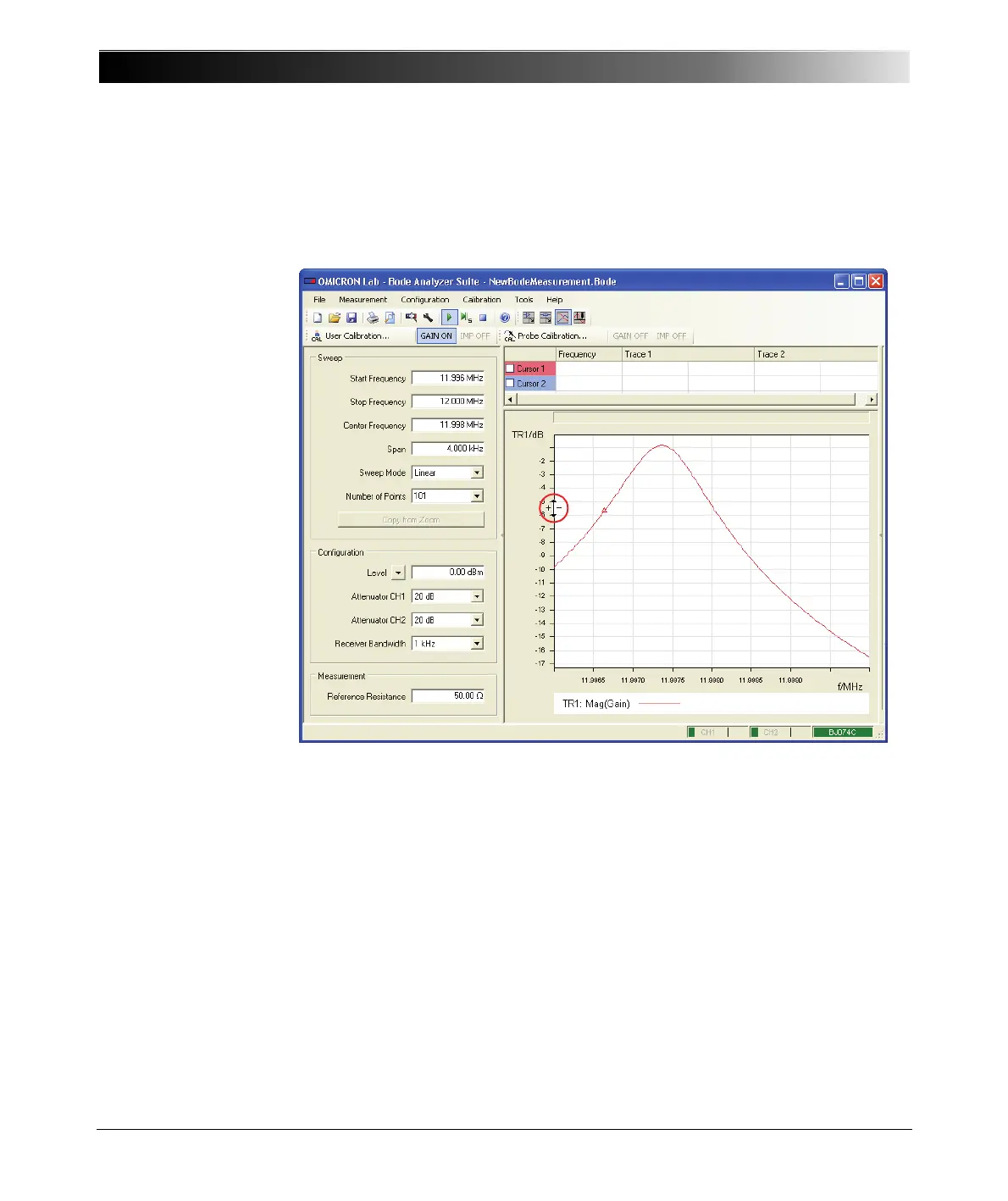

Figure 9-12:

Special zoom function

applied on Y-axis

Hint: This function is also available in the Gain/Phase mode and in the

Impedance/Reflection mode.
