Omicron Bode 100 User Manual

111
Advanced Functions
Data and Memory With the Bode 100 you can copy the current measurement data into the trace
memory and display it.
To store and display the measurement data:
1. Click the button to store the current measurement data into
the trace memory.
2. In the Display list, select one of the following:
- Data to display the current measurement data
- Memory to display the stored measurement data
- Data/Memory to display the difference between the current and the
stored measurement data
- Data & Memory to display the current and stored measurement data as
two curves in the same diagram
Hint: The Data/Memory option is particularly useful to compare two
electrical components of the same type because even smallest differences
in the frequency behavior can be detected easily.

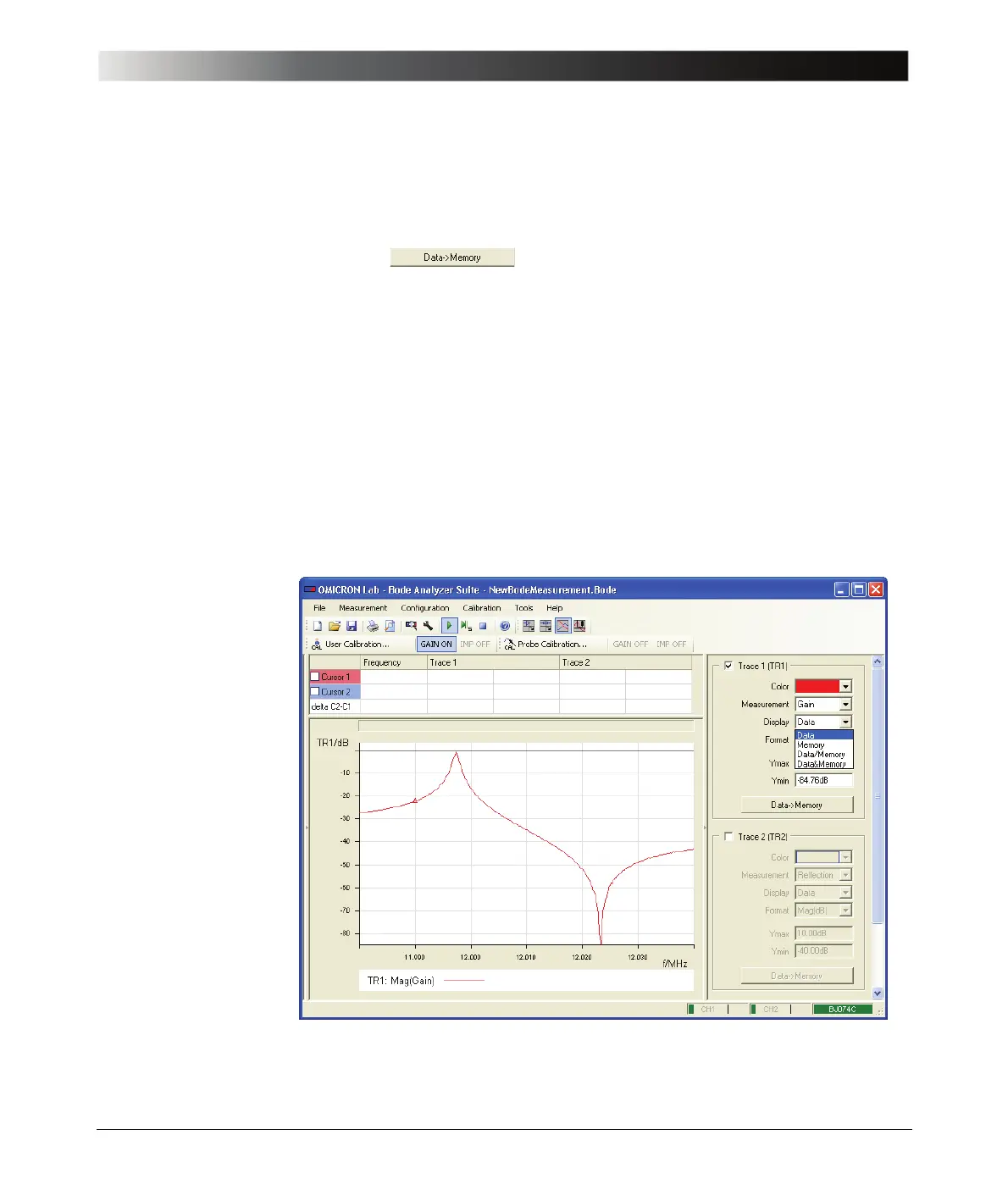

Figure 9-13:
Selecting Display
function
