In the Frequency Sweep mode you can perform a sequence of Gain/Phase
and/or Impedance/Reflection measurements and examine the results in
different types of diagrams.

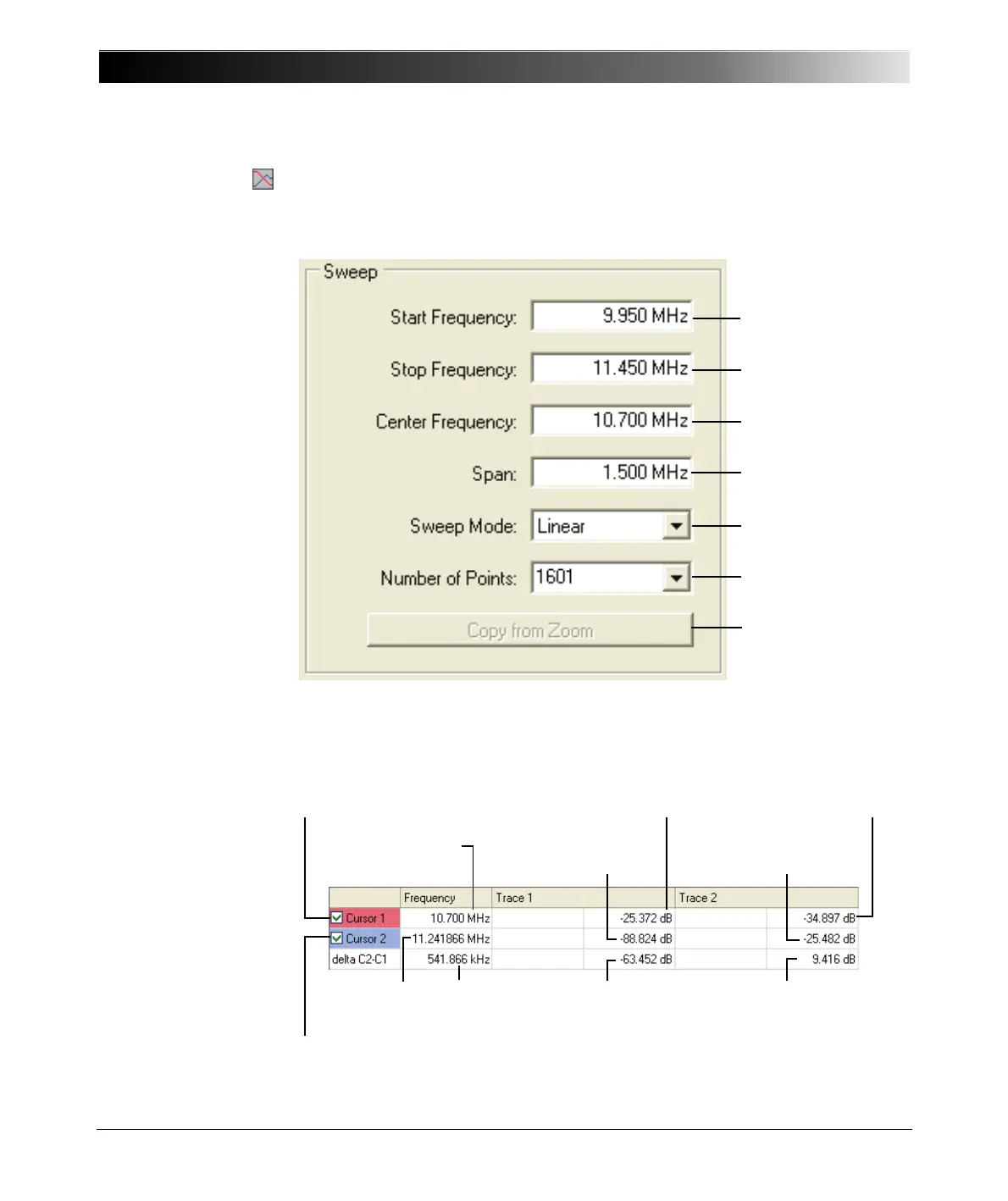

Figure 5-2:
Sweep settings
Hint: The start frequency, stop frequency, center frequency and span are
mutually dependent. After one of them has been changed, the others settings
are recalculated by the Bode Analyzer Suite.
Figure 5-3:
Cursor settings
Set the frequency sweep
start frequency.
Set the frequency sweep
stop frequency.
Set the frequency sweep
center frequency.
Set the frequency sweep
span.
Click Linear or
Logarithmic to select
the respective scale of
measurement points.
Set the number of
measurement points.
Copy from Zoom
See "Copy from Zoom"
on page 107.
Select the check box
to activate cursor 1.
Select the check box
to activate cursor 2.
Frequency marked
by cursor 1
Frequency marked
by cursor 2
Trace 1 measurement result
marked by cursor 1.
Trace 2 measurement result
marked by cursor 1.
Difference of trace 1
measurement results
Difference of cursor
frequencies
Trace 1 measurement result
marked by cursor 2.
Trace 2 measurement result
marked by cursor 2.
Difference of trace 2
measurement results
