Omicron Bode 100 - Page 79

79

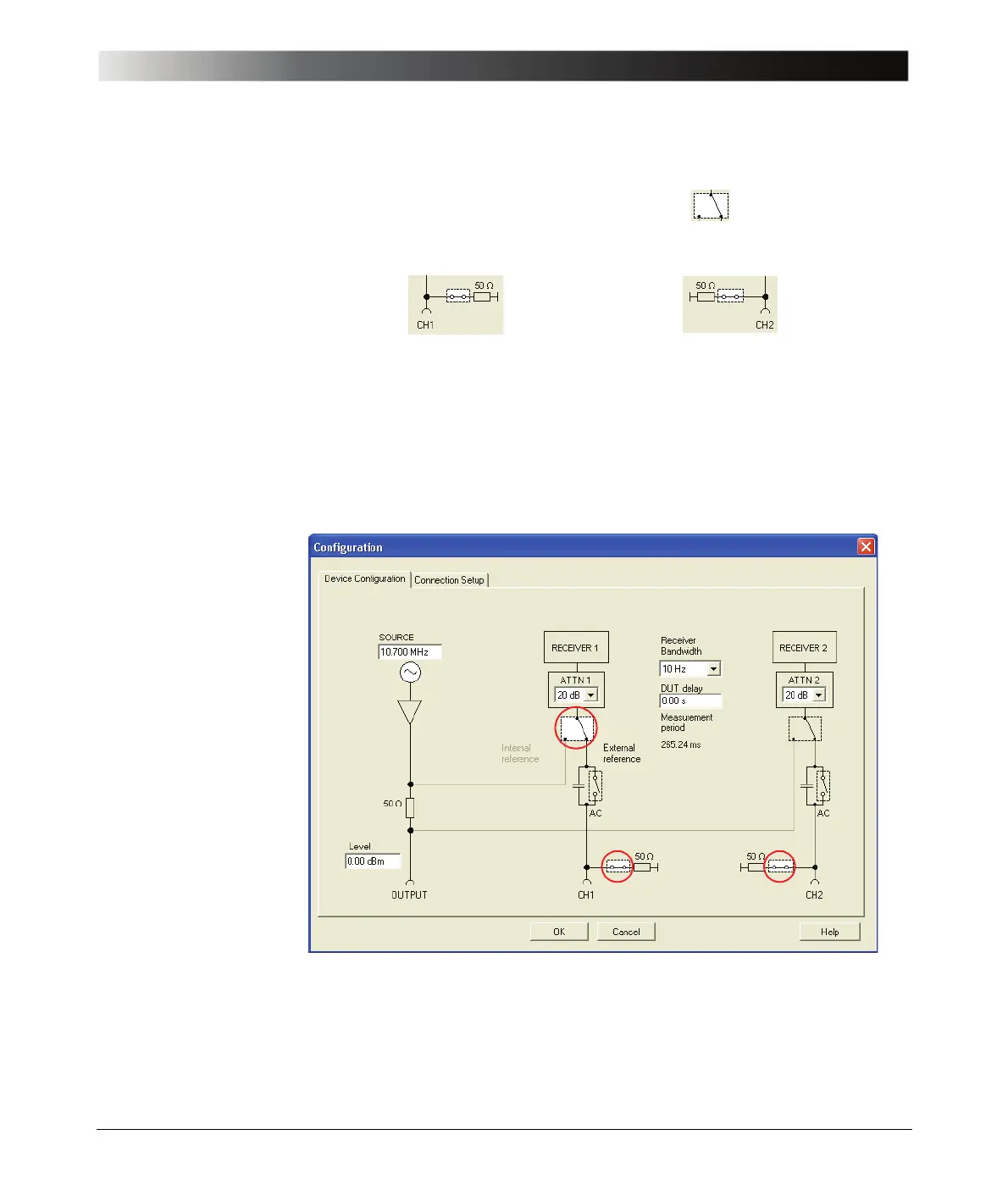

Calibrating the Bode 100
3. Set:
• External reference CH1 (Click the switch symbol .)
• CH1 and CH2: 50 Ω (Click the switch symbols.)
• SOURCE: 10.7 MHz
• Receiver bandwidth: 10 Hz
• ATTN 1: 20 dB
• ATTN 2: 20 dB
• Level: 0 dBm
