Bode 100 User Manual
80
4. Click the Connection Setup tab.

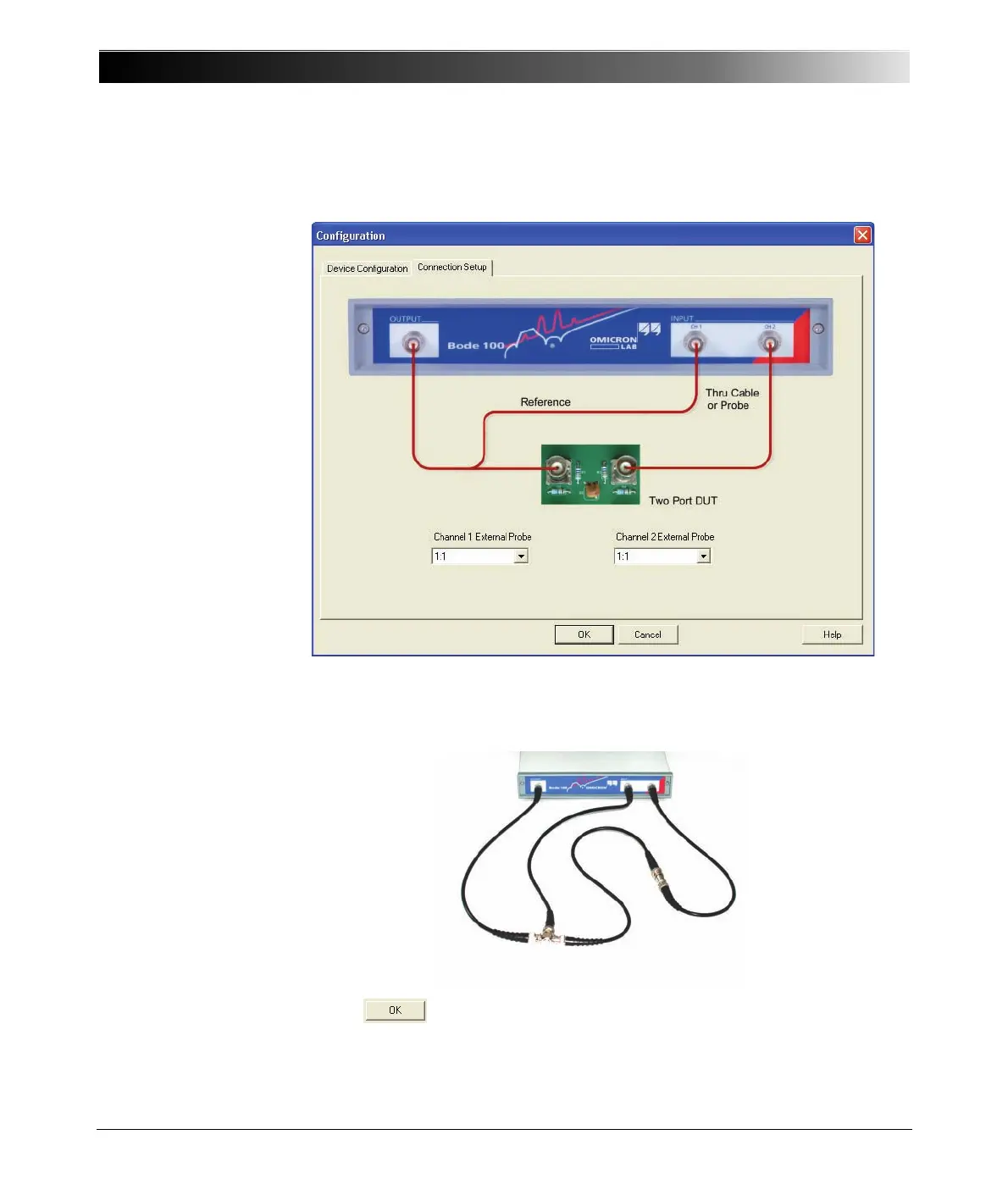

The connection diagram shows how to connect the DUT to the Bode 100.
5. Connect the cables you want to use for the measurement as shown below.
6. Click to close the Configuration window.
7. Choose either the Probe Calibration or the User Calibration and click the
respective toolbar button.
