81
Power Transformers
A third test file is used for the tests wit
h the tertiary winding co
nnected to the
CP
TD1
high-voltage output. 6-11 shows t
he connection instructio
ns for the
tests with en
ergized
tertiary winding.
Figure
6-11

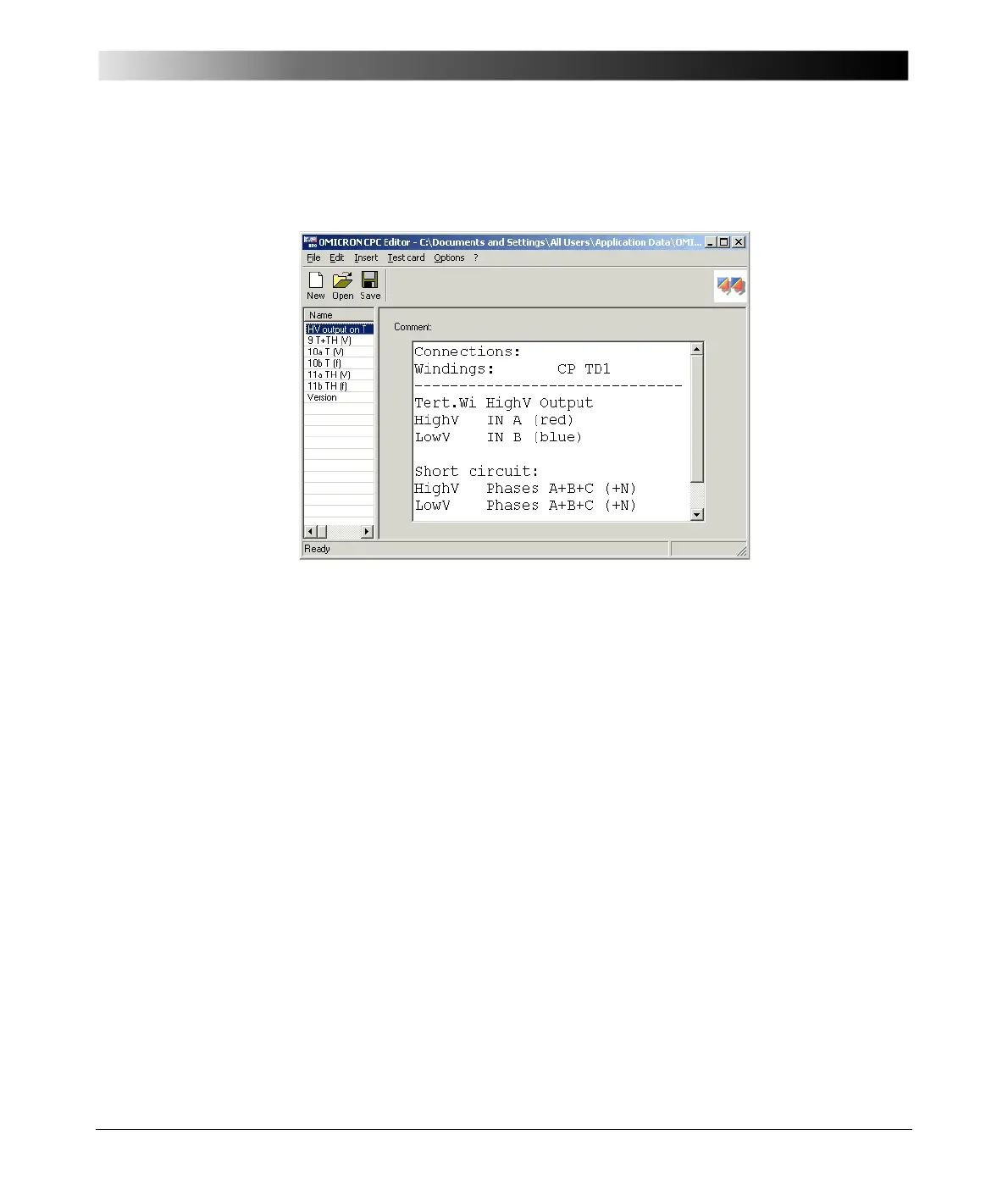

Connection instructions for
the tests with energized tert
iary
winding
80
