Introduction to capacitance and dissipation factor measurement
4 Introduction to capacitance and
dissipation factor measurement
Capacitance (C) and Dissipation Factor (DF) measurement is an established and important insulation
diagnosis method. It can detect:
Insulation failures
Aging of insulation
Contamination of insulation liquids with particles
Water in solid and liquid insulation
Partial discharges
4.1 Theory
In an ideal capacitor without any dielectric losses, the insulation current is exactly 9leading according
to the applied voltage. For a real insulation with dielectric losses this angle is less than 90°. The angle
δ
= 90° -
ϕ is called loss angle. In a simplified diagram of the insulation, C
p
represents the loss-free
capacitance and R
p
the losses (see Figure 4-1). Losses can also be represented by serial equivalent
circuit diagram with C
s
and R
s
. The definition of the dissipation factor and the vector diagram are shown
in Figure 4-2 on the following page.

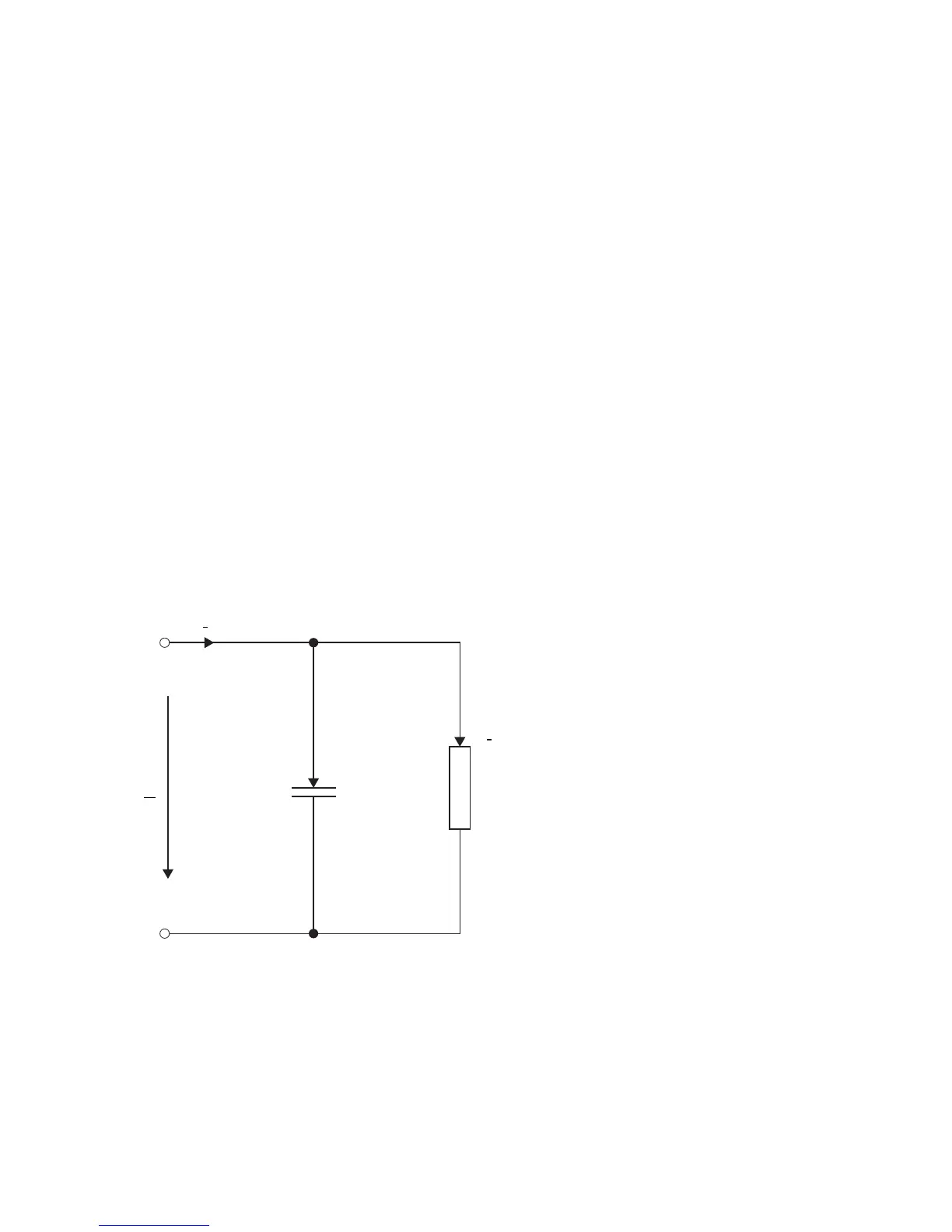

Figure 4-1: Simplified circuit diagram of a capacitor
I
CP
U C
P
I
RP
R
P
I
