Omicron CP TD1 User Manual

OMICRON 13
Introduction

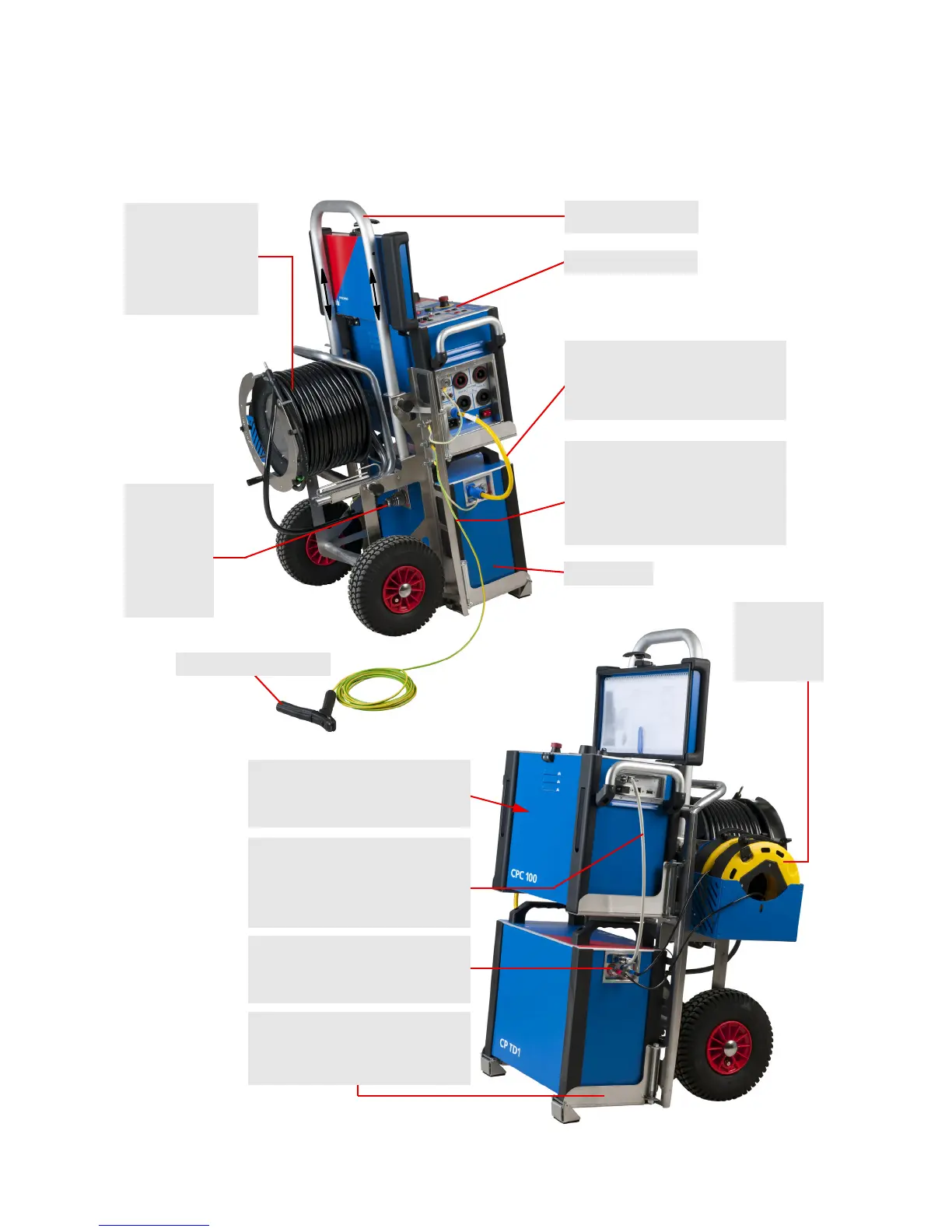

2.3 CPC 100 and CP TD1 equipment trolley
High-voltage
output with
attached
screw plug
and yellow
grounding
plug.
Cable drum with
double-shielded
output cable to feed
the high voltage to the
test object.
Equipment trolley
Booster cable CPC 100 ⇔ CP TD1
(short type). Via this cable CPC 100
controls the CP TD1 output voltage.
CPC 100
CPC 100, CP TD1 and the equipment
trolley connected to the trolley’s
grounding bar and led to earth.
Grounding cable min. 6mm².
CP TD1
Grounding terminal
Data cable CPC 100 ⇔ CP TD1
(short type). Via this data cable, the
CPC 100 software (test card
TanDelta) controls the CP TD1.
CP TD1’s measuring inputs IN A and
IN B, connected to the cable drum for
the measuring cables.
Swiveling mounting brackets for the
CPC 100 (top) and CP TD1 (bottom).
To secure the CPC 100 while pulling
the trolley, a safety belt is available
(not shown).
Cable drum for
measuring
cables
