OMICRON 51
Power transformers
5.6.1 Measurements on a three-winding transformer with the
CPC 100 and CPC 80
This example shows the preparation of a three-winding transformer measurement with the CPC Editor.
Due to the high amount of measuring data, the test is split into three single test files. The first file contains
the tests with the high-voltage winding connected to the high-voltage output of the CP TD1.
First file

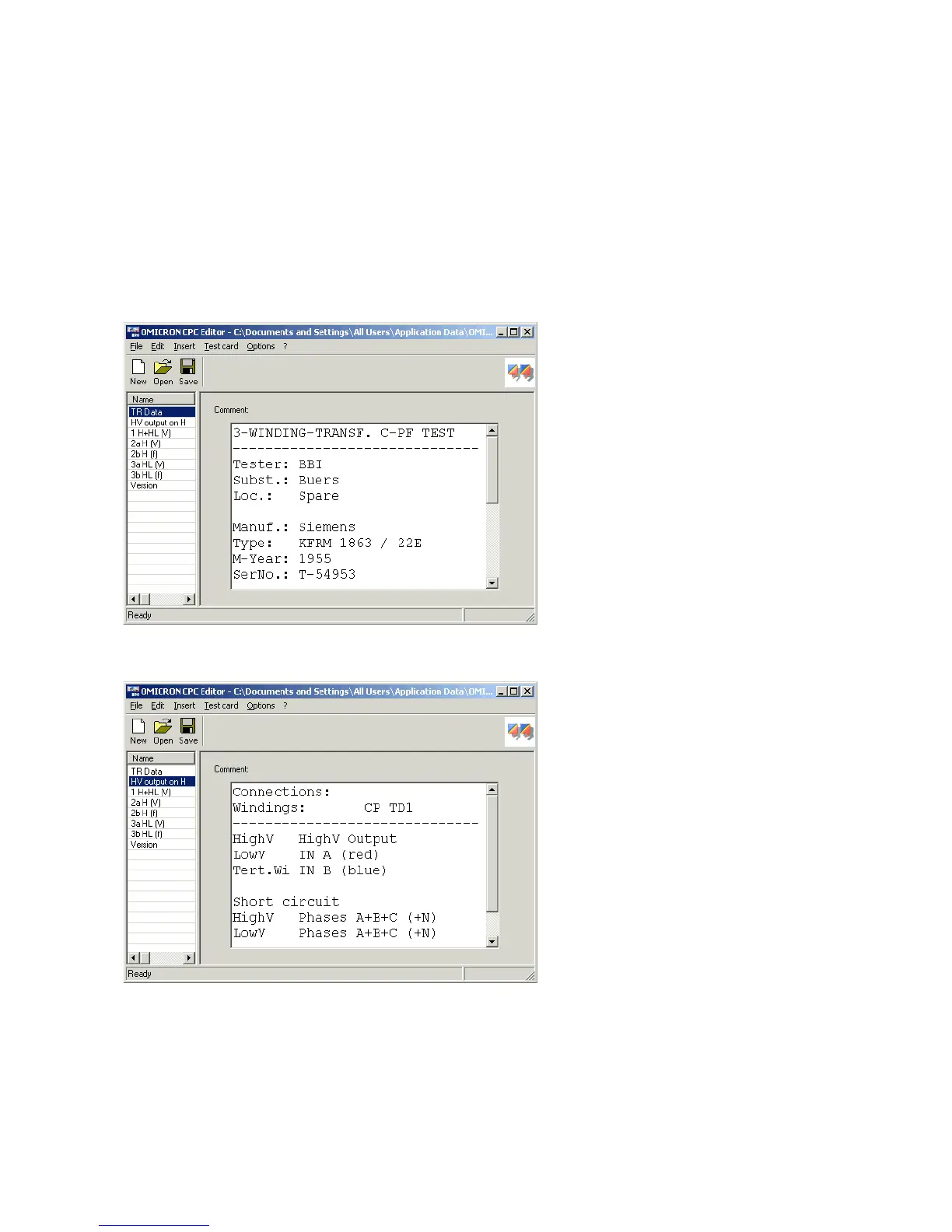

Figure 5-13: Input of transformer data
Figure 5-14: Instruction about test lead connections
