Introduction
2.4.2 CPC 100 High-voltage and High-current outputs
When the CPC 100 outputs high current, observe the allowed duty cycles that may apply to the selected
AC output range. For more information please refer to ”CPC 100 outputs” on page 14-288.

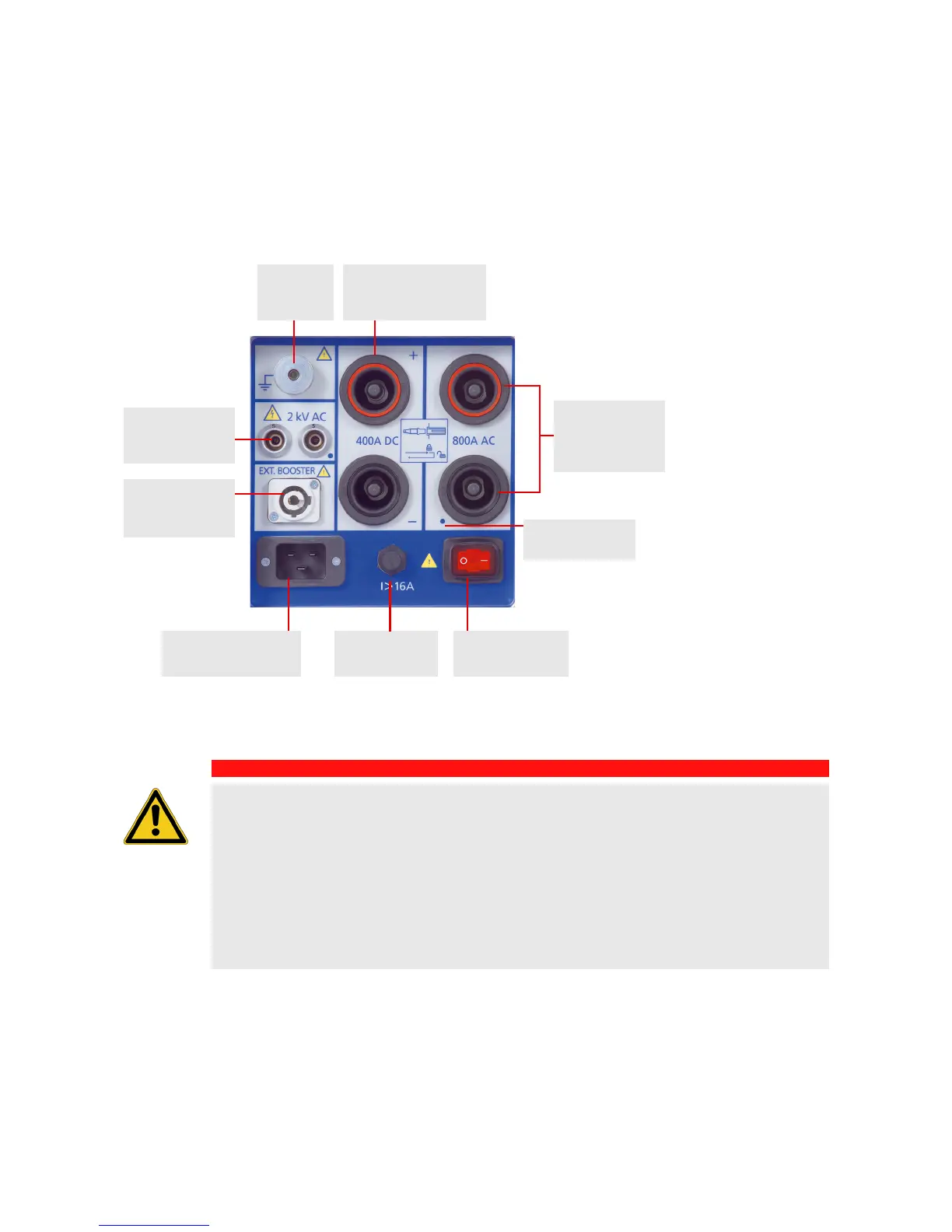

Figure 2-2: High-voltage and high-current outputs on left-hand side of the CPC 100
DANGER
Death or severe injury caused by high voltage or current
The connector "Ext. Booster" is always galvanically connected to mains, regardless
whether or not an external booster is selected on the software tab Options | Device
Setup, the green warning light (0) is on, the outputs are turned off or the Emergency Stop
button is pressed.
► Do not use any other booster cables than the ones supplied by OMICRON.
► Do not use booster cables that are frayed or damaged in any way
► Handle with extreme caution.
POWER ON /OFF
switch
Mains power supply,
1 phase, 85V-264V AC
2kV AC
High-voltage
output
Ext. Booster
for example, to
power the CP TD1
Automatic circuit
breaker I > 16A
Reference point
400A DC
(4-4.5V DC)
High DC current output
Grounding
terminal
800A AC
(6.1-6.5V AC)
High AC current
output
