2.4 Functional components of the CPC 100
2.4.1 CPC 100 Front panel

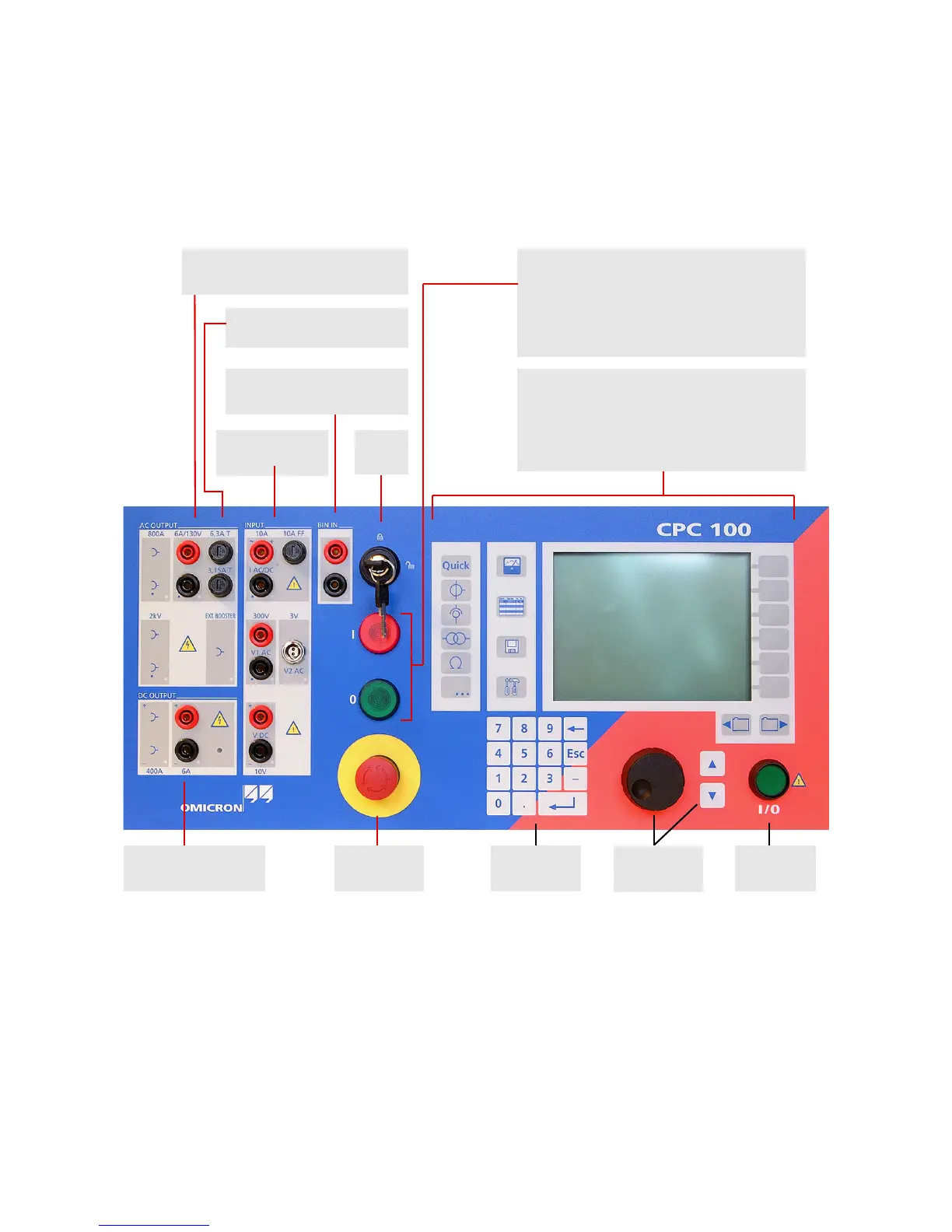

Figure 2-1: CPC 100 Front panel
Note: With the CPC 100 V0, the number of test cards in one test procedure should be limited to 15 to
avoid memory problems. The CPC 100 V1 allows using more test cards in one test procedure but we
recommend not to use more than 15 test cards or more than 50 test results to keep the tests clearly
structured.
Soft-touch
keyboard
Built-in ePC
Built-in ePC with front-panel control
We recommend not to use more than 15 test cards
or 50 test results in one test procedure
(see Note below).
I / 0
Warning lights that indicate either a safe operation,
that is, no voltage at the CPC 100 outputs (green
light "0" on), or an operation with possibly
hazardous voltage and/or current levels at the
CPC 100 outputs (red light "I" flashing).
Safety
key lock
Emergency
stop button
Navigation
elements
DC OUTPUT
6A DC output
Test
Start/Stop
BIN IN
Binary trigger input
INPUT
Measuring inputs
AC OUTPUT
Fuse-protected 6A or 130V output
Fuses for 6A AC and 6A DC
outputs
