CP TD1 User Manual
8 OMICRON
1.2.3 Safety accessories
OMICRON offers a range of accessories for added safety during the operation of our test systems. For
further information and specifications, refer to the corresponding Supplementary Sheet or contact
OMICRON Support.
1.3 Operating the measurement setup
The CP TD1 works as an add-on device to the CPC 100, CPC 80 or TESTRANO 600 which controls the
measurement. In this manual, those devices are collectively named Control Device if no specific device
is referred to. Do not connect the CP TD1 to any other device than the CPC 100, CPC 80 or the
TESTRANO 600.
Only personnel qualified in electrical engineering and trained by OMICRON are authorized to operate
the CP TD1.
► Before starting the work, clearly establish the responsibilities.
Personnel receiving training, instructions, directions, or education on the CP TD1 must be under
constant supervision of an experienced operator while working with the equipment.
The operator is responsible for the safety requirements during the whole test.
► Do not enter the high-voltage area if the red warning light of the Control Device is on since all outputs
can carry dangerous voltage or current!
► Always obey the five safety rules and follow the detailed safety instructions in the respective user
manuals.

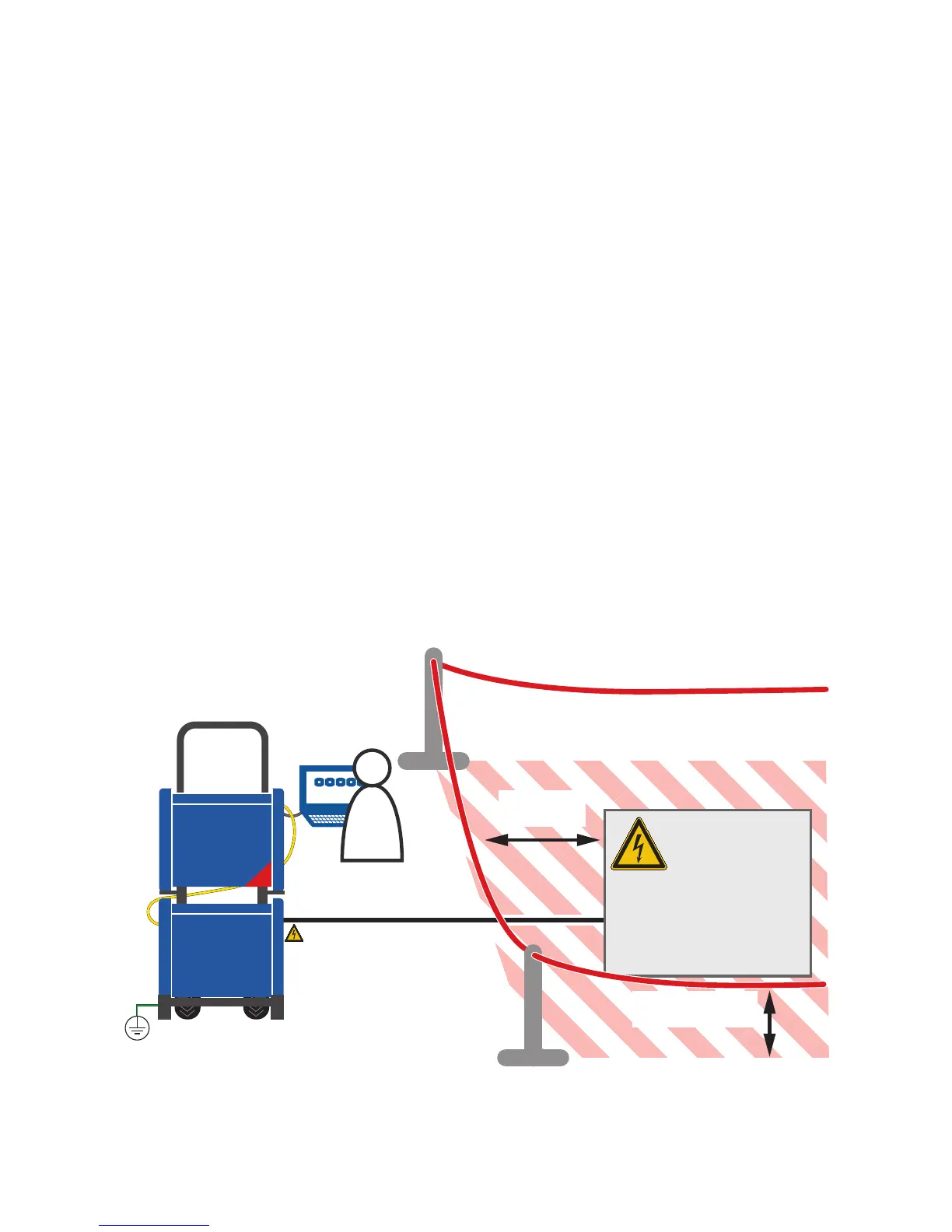

Figure 1-1: Example of the separation of safe and high-voltage area using the CP TD1 with
TESTRANO 600
CP TD1
CPC 100
TESTRANO 600
Device under test
Safe area
High-voltage test area
Barrier height:
1 - 1.4 m / 3.3 - 4.6 ft
Distance:
min. 1.5 m/5 ft
