CP TD1 User Manual
26 OMICRON
3.2 Connecting the CP TD1 to the Control Device

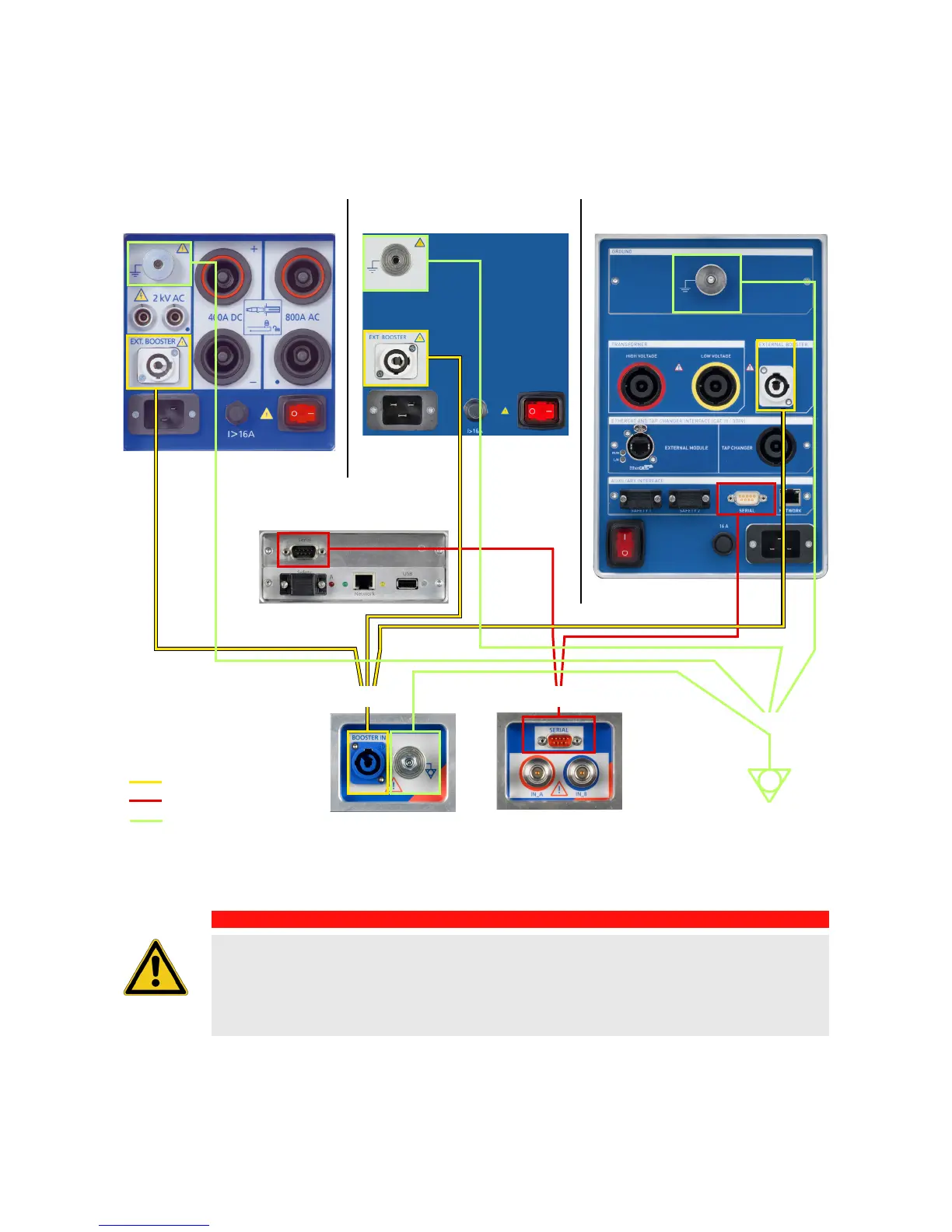

Figure 3-1: Connecting the CP TD1 to the CPC 100, CPC 80 or TESTRANO 600
DANGER
Death or severe injury caused by high voltage or current
► Never use the CP TD1 without a solid connection to ground with at least 6 mm².
► Use a ground point as close as possible to the test object.
► Make sure to position the test object or CP CAL in the high-voltage area.
CPC 100 CPC 80 TESTRANO 600
Left side panel
Left side panel
Side panel
CPC 100/CPC 80 right side panel
CP TD1
Left side panel Right side panel
Booster cable
Serial data connection
Grounding cable
oror
or
