16 OMICRON
2.4.3 CPC 100 ePC interfaces
The ePC interfaces are located on the right-hand side of the CPC 100 housing. The PC and network
interfaces differ depending on the CPC 100 version as described below.

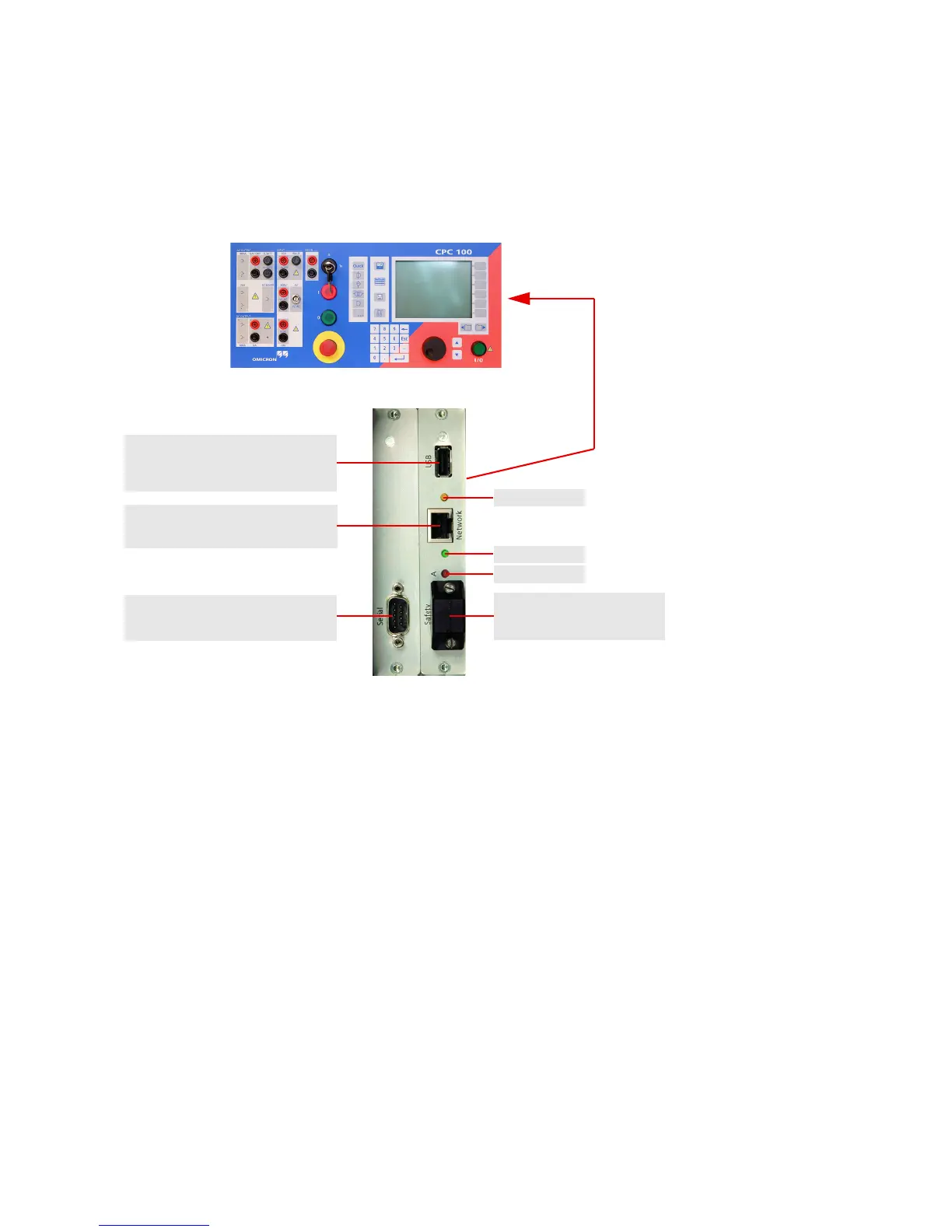

Figure 2-3: ePC interfaces of the CPC 100 V1
The CPC 100 V1 supports the USB interface 1.1 and 2.0 for connecting the USB memory stick shipped
with the CPC 100.
Note: The full functionality is guaranteed only for the stick delivered with the CPC 100.
The serial and safety interfaces are identical with the CPC 100 V0 version (see above). The network
interface is an auto-crossover Ethernet connector that can be connected to a network hub or directly to
a PC or a notebook.
The CPC 100 V1 provides the following LEDs on the ePC interface:
• Green LED lights if the CPC 100 is properly connected to a PC or network.
• Yellow LED lights if data is transferred from or to the network.
• Red LED serves for diagnosis purposes.
USB connector for connecting
OMICRON USB memory sticks
(see below)
RJ-45 socket for connecting the
CPC 100 to a PC or a network hub
Serial interface connector for
connecting the CP TD1
Connector for external safety
functions
Red LED
Yellow LED
Green LED
