Omron CK3W-GC 00 Series User Manual

3-8-2

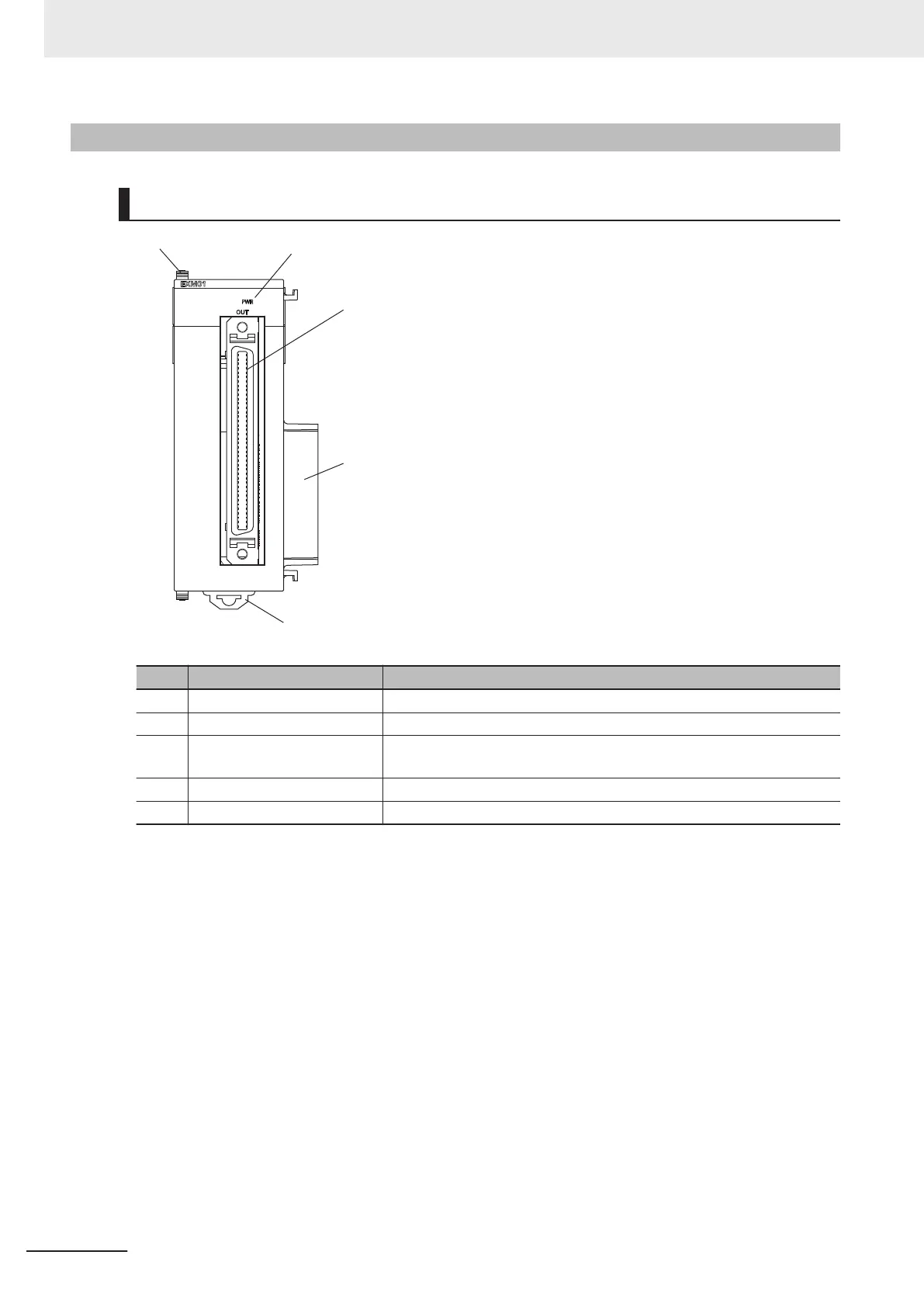

Part Names and Functions
CK3W-EXM01
(A)
(B)
(C)
(D)
(E)
Letter Name Function
A Slider Holds the Units together.
B Power supply status indicator Shows the power supply status.
C Expansion connector (OUT) Connector that connects to the expansion connector (IN) on the Expan-
sion Slave Unit.
D Unit connector Connector that connects to the Unit.
E DIN Track mounting hook Used to mount the Unit to a DIN Track.
3 Configuration Units
3-88
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
