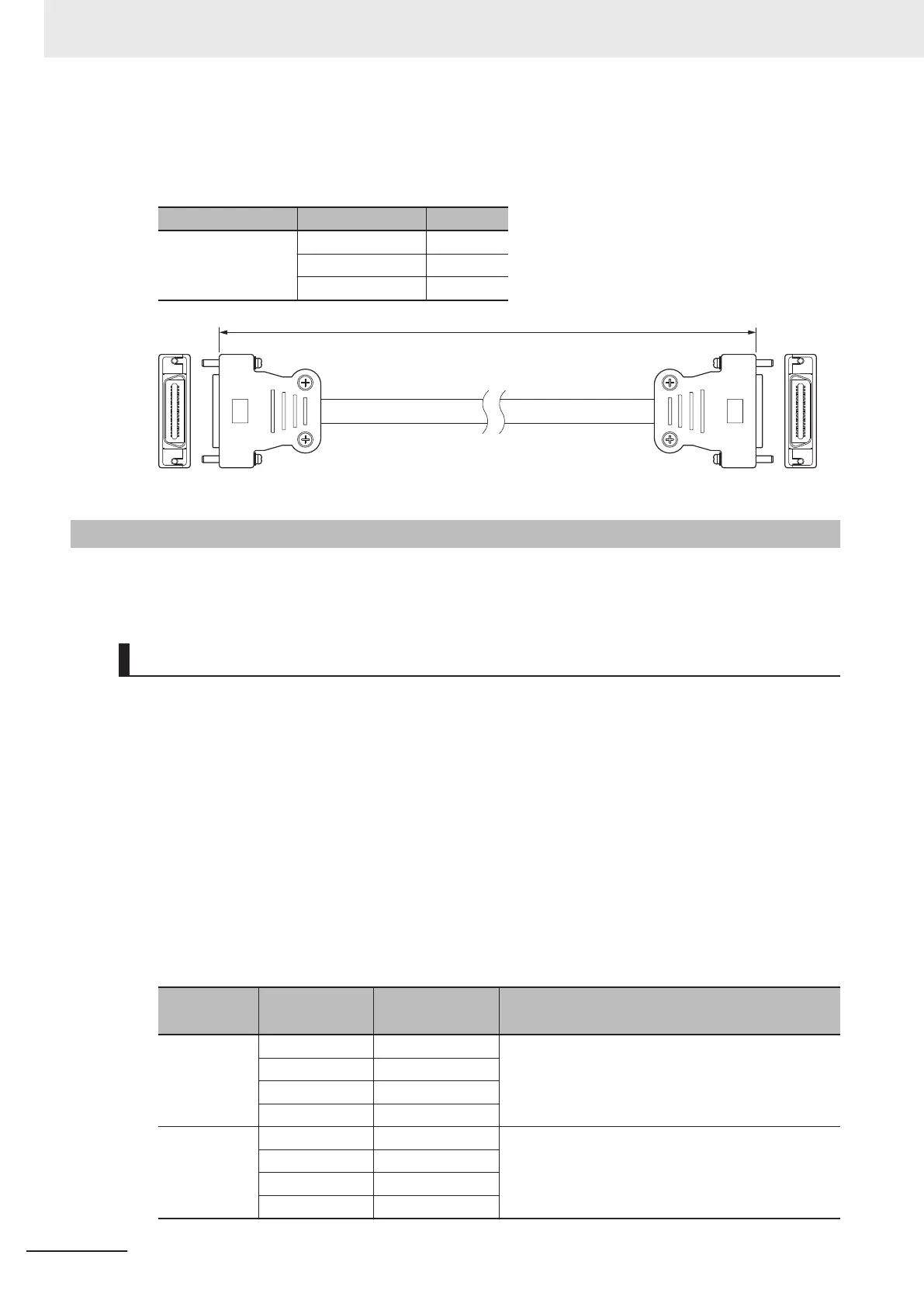

For DirectPWM type
This section describes cables used for the CK3W-AX1313£/-AX2323£ Units.
Be sure to use the following cables for the DirectPWM type amplifier connector.
Type Model Length (L)
For DirectPWM type CK3W-CAAD009A 0.9 m
CK3W-CAAD018A 1.8 m
CK3W-CAAD036A 3.6 m
L
5-3-3
Flag Terminal Block/General I/O Terminal Block Wiring
This section describes the wiring for the flag connection terminal block and the general digital I/O con-
nection terminal block.
Wiring the Terminals
Applicable Wires
The wires that you can connect to the terminal block are twisted wires, solid wires, and ferrules that
are attached to the twisted wires. The following section describes the dimensions and processing
methods for applicable wires.
Using Ferrules
If you use ferrules, attach the twisted wires to them.
Observe the application instructions for your ferrules for the wire stripping length when attaching
ferrules.
Always use plated one-pin ferrules. Do not use unplated ferrules or two-pin ferrules.
The applicable ferrules, wires, and crimping tools are listed in the following table.
Manufactur-
er
Ferrule model
Applicable wire
(mm
2
(AWG))
Crimping T
ool
(applicable wire size given in parentheses)
Phoenix Con-
tact
AI0,5-10 0.5 (#20) Phoenix Contact
CRIMPFOX 6 (0.25 to 6 mm
2
, AWG24 to 10)
AI0,75-10
0.75 (#18)
AI1,0-10 1.0 (#18)
AI1,5-10 1.5 (#16)
Weidmüller H0.5/16 0.5 (#20) Weidmüller
PZ6 Roto (0.14 to 6 mm
2
, AWG26 to 10)
H0.75/16
0.75 (#18)
H1.0/16 1.0 (#18)
H1.5/16 1.5 (#16)
5 Wiring
5-26
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
