• Has double or reinforced insulation between the input and output.
Recommended Power Supplies: S8VK-S series (manufactured by OMRON)
3-2-2

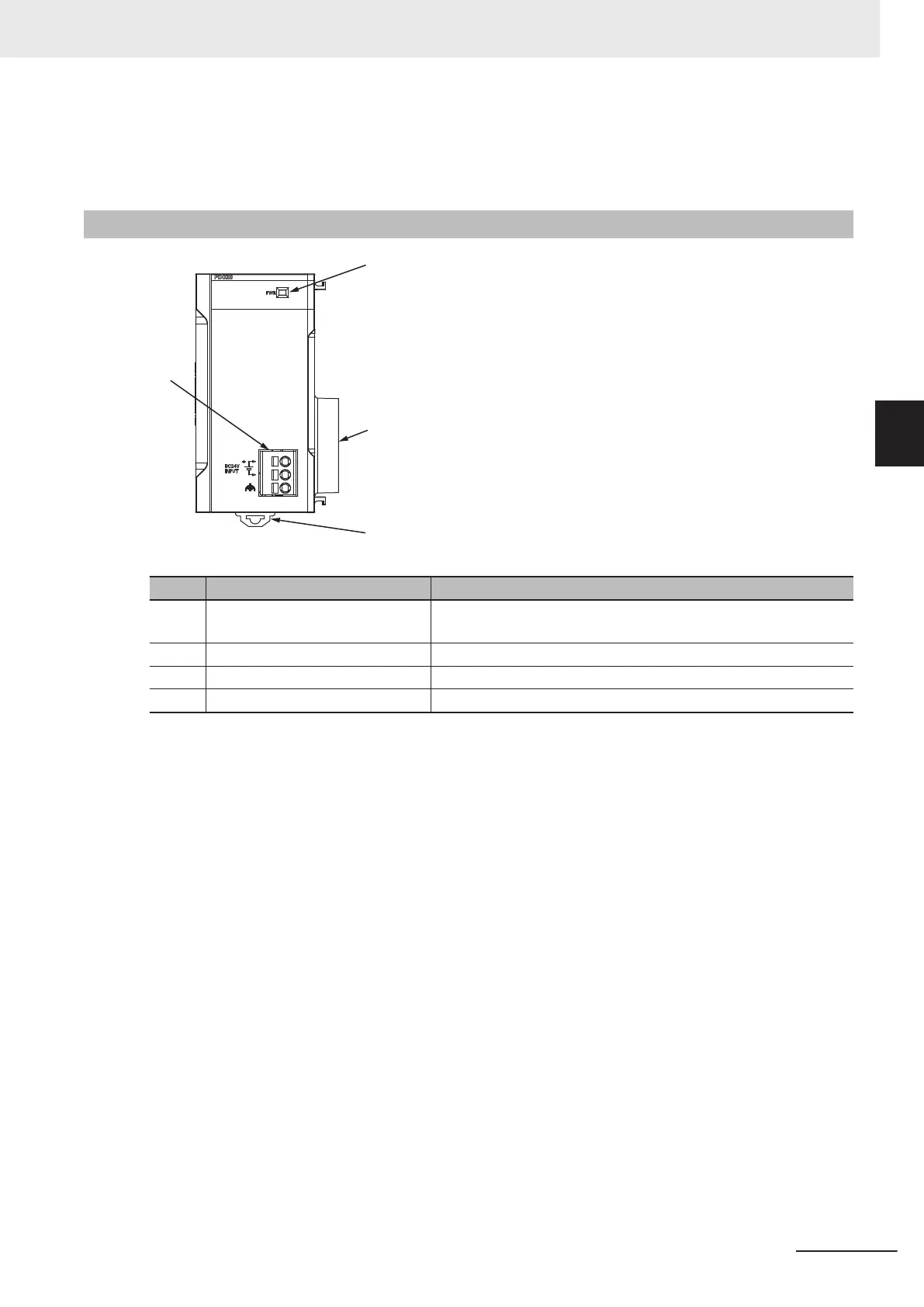

Part Names and Functions
Letter Name Function
A Power supply connection terminal
block
Connects the power supply.
B Power supply status indicator Lights when 5 V is output from the Power Supply Unit.
C CPU Unit connector Connector that connects to the CPU Unit.
D DIN Track mounting hook Used to mount the Unit to a DIN Track.
3 Configuration Units
3-11
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-2 Power Supply Unit
3
3-2-2 Part Names and Functions
