6-2
Using the Indicators to Check Errors
6-2-1
Indicator Types
TheMotion Controllerindicators used for error checks and their functions are as shown below.
Unit Indicator name Description
Power Supply Unit PWR Shows that power is being supplied to the Unit.
CPU Unit PWR Shows the CPU Unit internal power status.
RDY Shows whether the CPU Unit is in operation-ready status.
ERR Shows the CPU Unit watchdog timer error status.
ECAT LINK Shows the link status of EtherCAT communications.
ECAT ACT Shows the data communications status of EtherCAT communications.
Ethernet LINK Shows the link status of Ethernet communications.
Ethernet ACT Shows the data communications status of Ethernet communications.
CK3W Unit PWR Shows the Unit internal power status.
6-2-2
Procedure for Identifying Errors

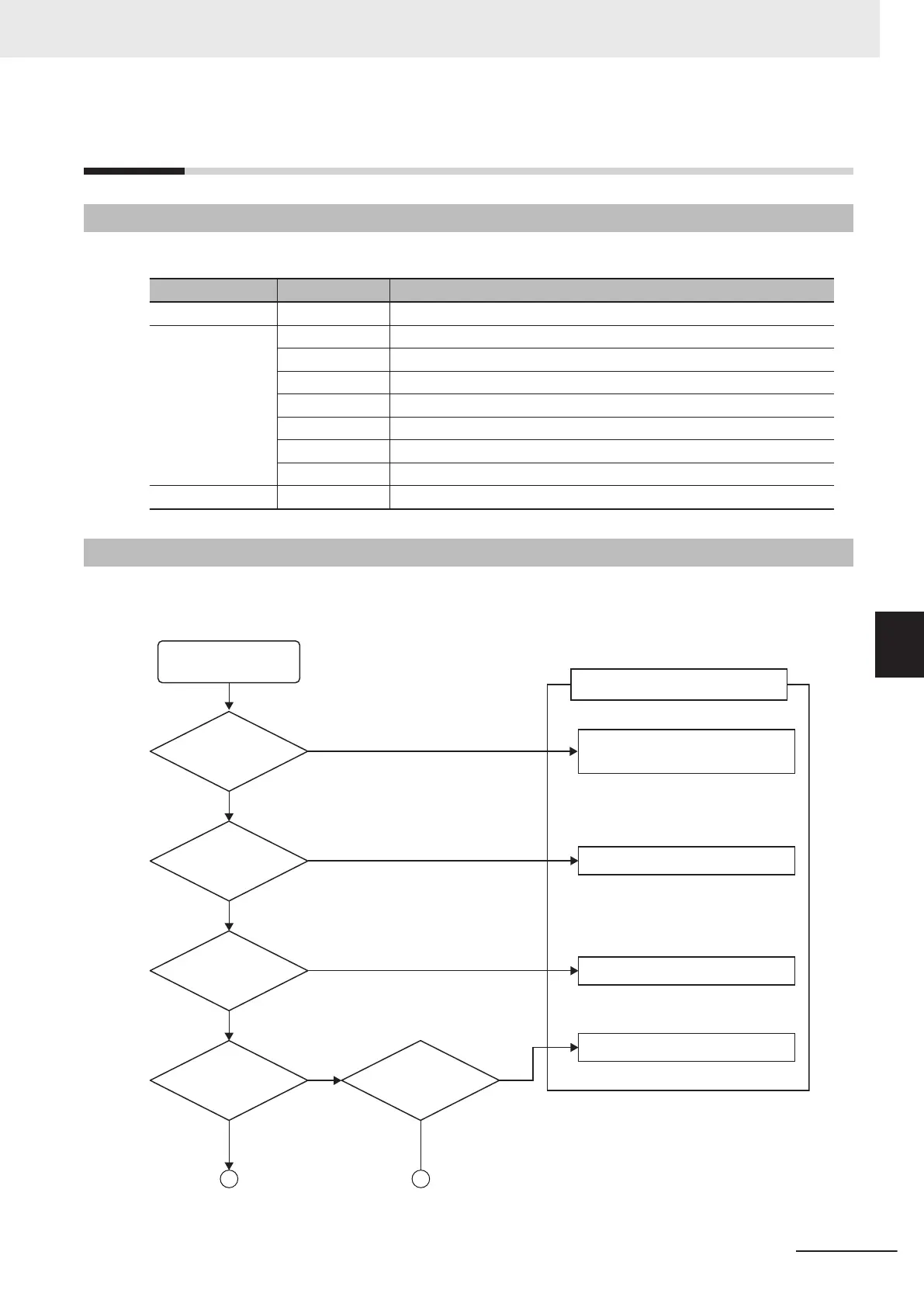

When an error occurs in the Motion Controller, check the indicators with the following flowchart to first
identify if either a "non-fatal error in the CPU Unit" or a "fatal error in the CPU Unit" has occurred.
A B
Po
wer
Supply Unit
PWR (green)
Error occurs.
OFF
OFF
ON
OFF
ON
ON
ON
OFF
CPU Unit
PWR (green)
CPU Unit
ERR (red)
CPU Unit
RDY (green)
Power PMAC IDE
Connectable?
YES
NO
Fatal errors in the CPU Unit
Power Supply Unit power supply
error
CPU Unit power supply error
Hardware watchdog timer error
Initial process error
6 Troubleshooting
6-3
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
6-2 Using the Indicators to Check Errors
6
6-2-1 Indicator Types
