Omron CK3W-GC 00 Series User Manual

DIN Track
(1)
(2)

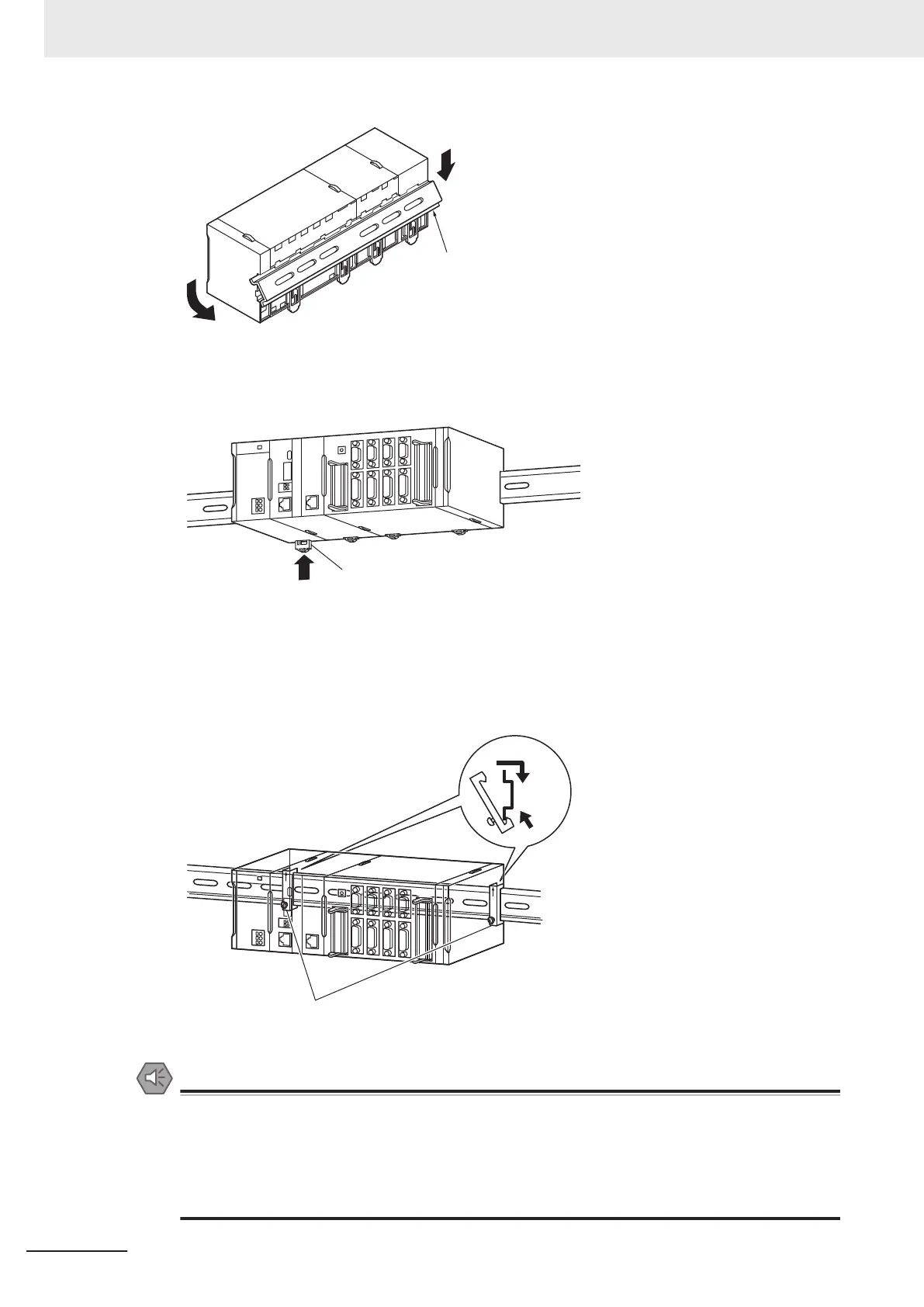

3 Lock all the DIN Track mounting hooks.
DIN Track mounting hook
4 Install a DIN Track End Plate on each end of the Controller.
To mount an End Plate, hook from the underside (1), hook to the upper side, and then pull
downward (2).
Then tighten the screw to lock the End Plate in place.
End plate
(1
)
(2)
Precautions for Safe Use
Always turn OFF the power supply to the Controller before attempting any of the following.
• Mounting or removing the Units.
•
Assembling the Units.
• Setting rotary switches.
• Connecting cables or wiring the system.
• Connecting or disconnecting the terminal blocks or connectors.
4 Installation
4-12
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
