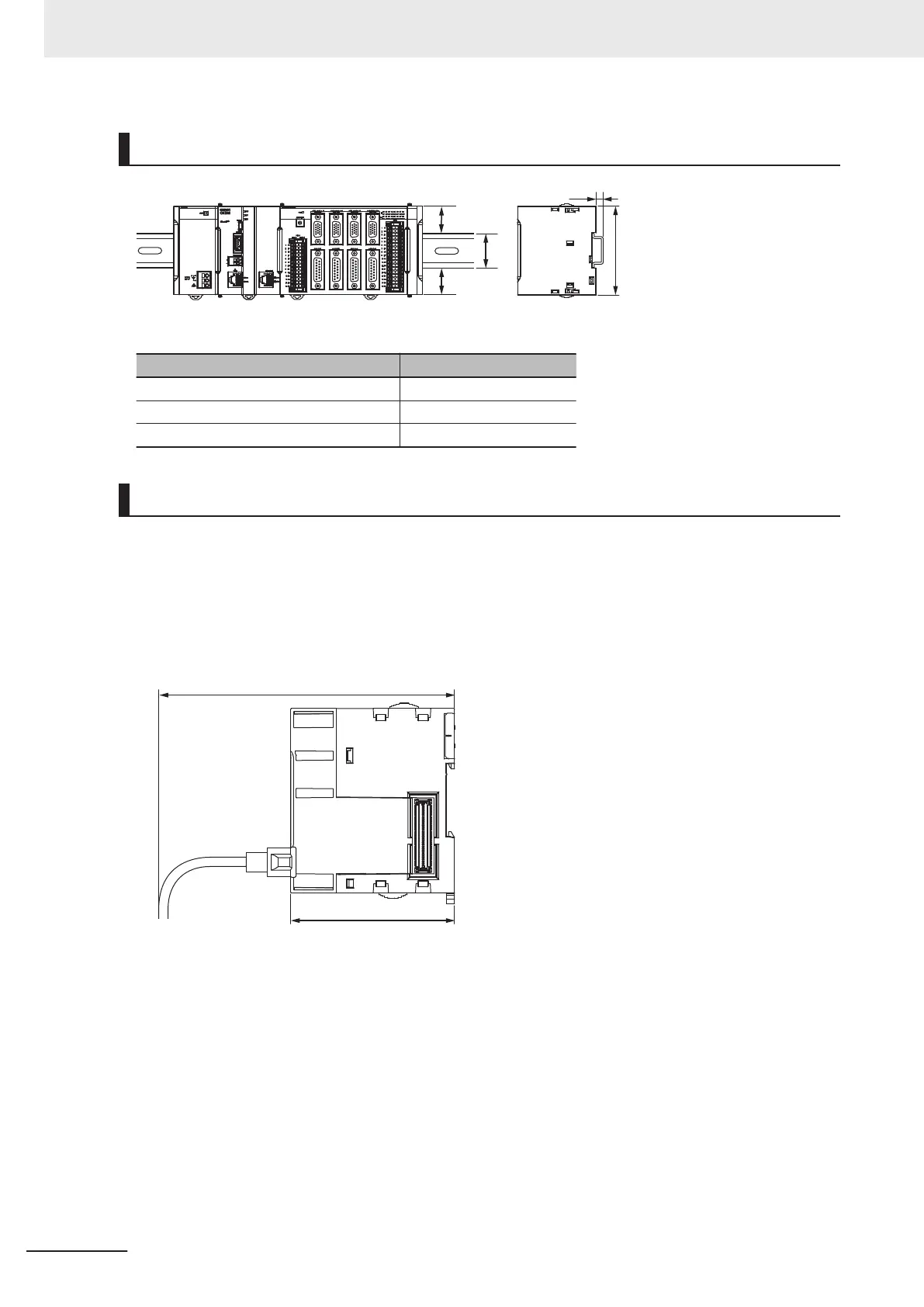

Installation Dimensions
27.5
3
5
90
A
27.5
CPU Rack
(Unit mm)
DIN Track A (mm)
PFP-100N2 16
PFP-100N 7.3
PFP-50N 7.3
Installation Height
The mounting height of the CK3M-series Controller is 80.0 mm.
When cables are connected (such as a connecting cable to Support Software, an encoder connection
cable, or an amplifier connection cable, etc.), however, even greater height is required. Allow suf
ficient
depth in the control panel containing the Controller.
CK3M-series CPU Unit
Approx. 165 to 180 mm
80mm
4 Installation
4-16
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
