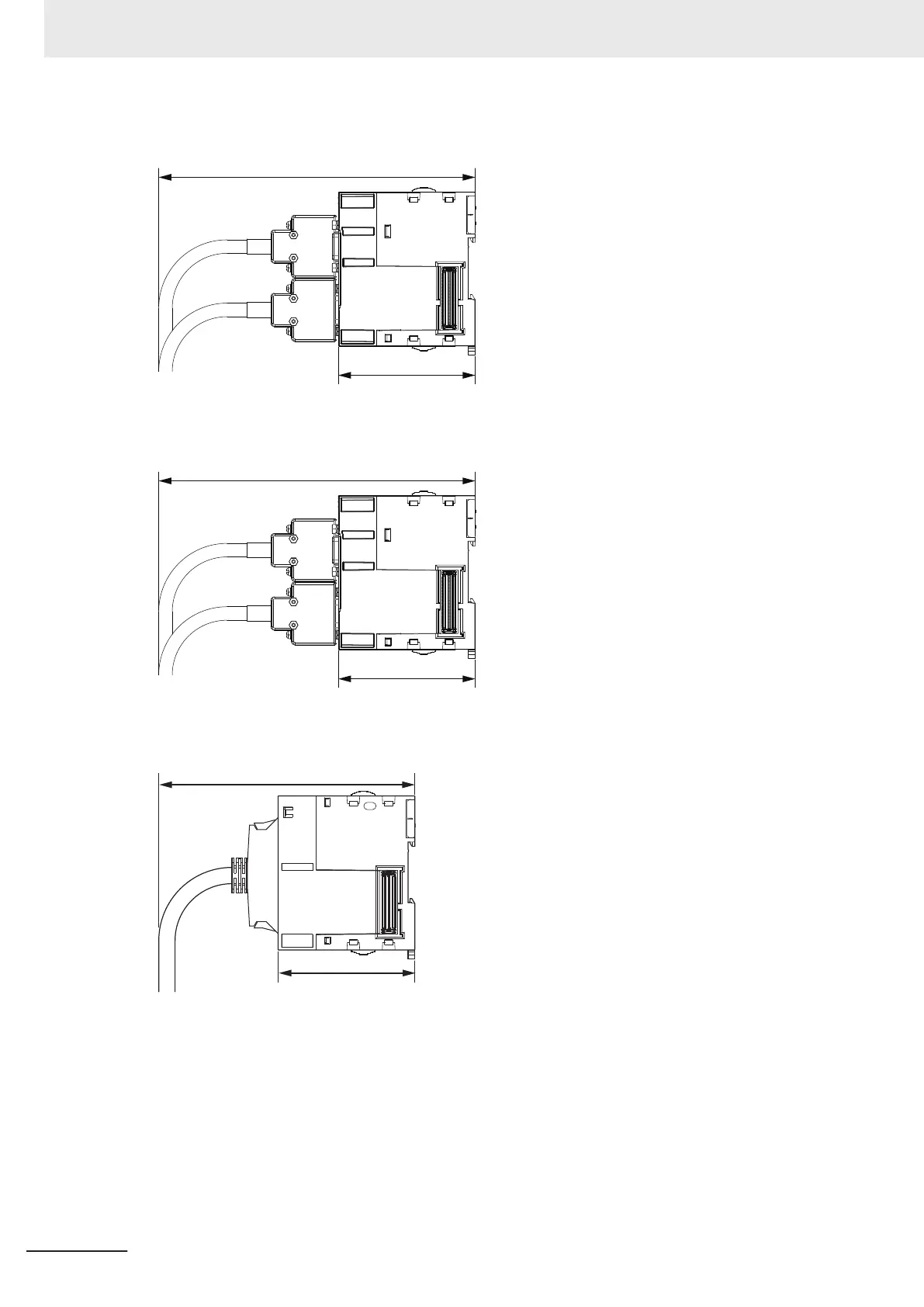

Omron CK3W-GC 00 Series

To Next Page

To Previous Page



CK3W-ECS Unit

185mm

80mm



CK3W-GC Unit

185mm

80mm



CK3W-EXM01 and CK3W-EXS02

155 mm

80 mm
