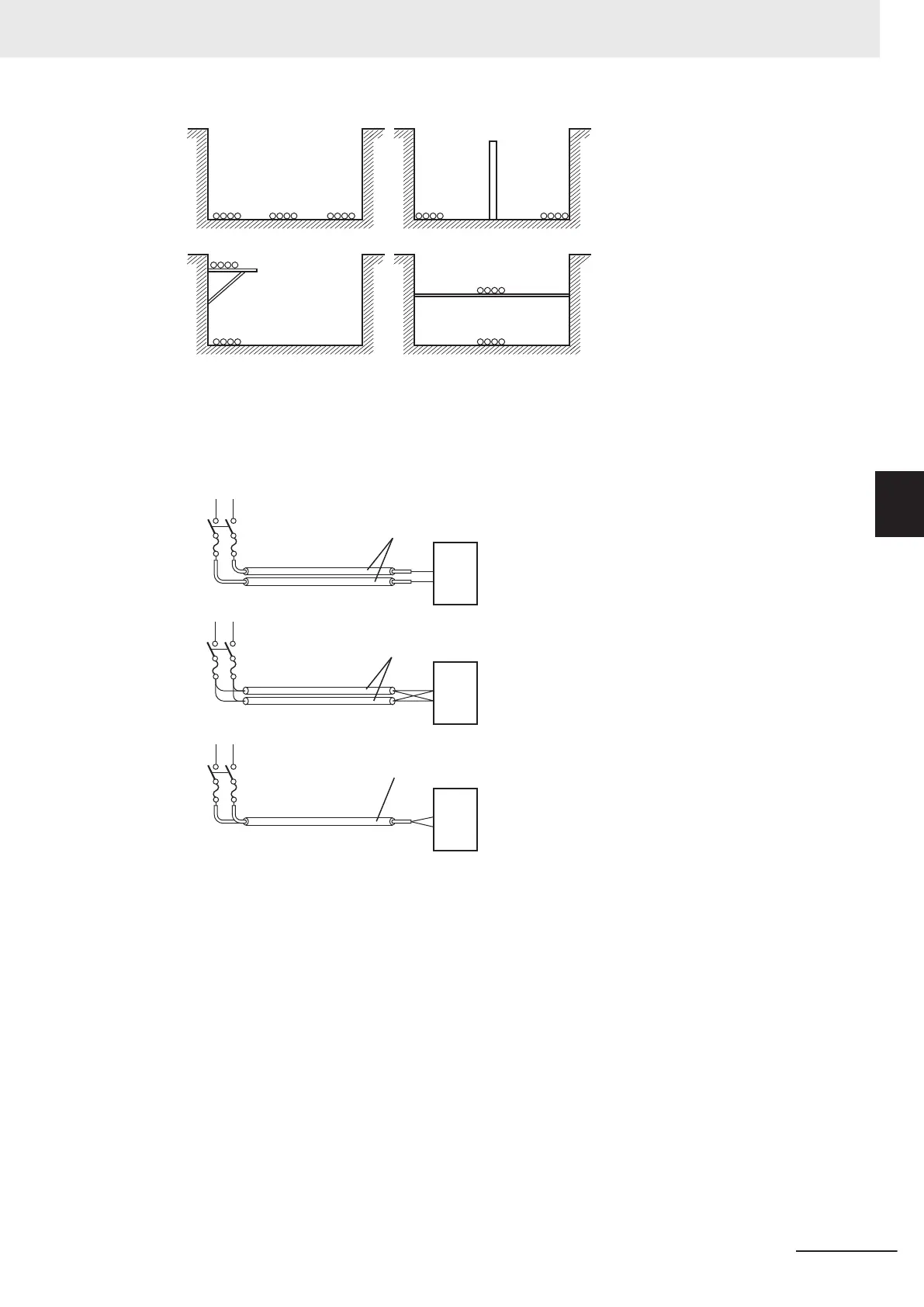

Partitioning Methods for Signal and Power Supply Cables
(a) (b)
(c) (d)
Signal cables
Signal cables
Signal cables
Power supply cables
Power
supply
cables
Power supply cables
Partition
Signal
cables
(group A)
Signal
cables
(group B)
Signal
cables
(group C)
• To avoid overheating the conduits when using conduits for wiring, do not place wires for a single
circuit in separate conduits.
Parallel Wiring (Single Phase)
Correct
Correct
Power supply
Incorrect
Power supply
Power supply
Load
Load
Load
Conduits
Conduits
Conduits
OK
OK
NG
• Power cables and signal cables adversely affect each other. Do not wire them in parallel.
• Noise induction may occur if the Controller is installed in a panel that includes high-voltage devi-
ces. Wire and install them as far apart as possible. (Refer to Controller Installation Location on
page
4-21.)
• Either install the Controller a minimum of 200 mm away from high-voltage lines or power lines, or
place the high-voltage lines or power lines in metal tubing and completely ground the metal tub-
ing to 100 Ω or less.
4 Installation
4-25
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
4-4 Control Panel Installation
4
4-4-5 Electrical Environment
