Manufactur-
er
Ferrule model
Applicable wire
(mm
2
(A
WG))
Crimping T
ool
(applicable wire size given in parentheses)
Phoenix Con-
tact
AI0,25-8 0.25 (#24) Phoenix Contact
CRIMPFOX 6 (0.25 to 6 mm
2
, AWG24 to 10)
AI0,5-8 0.5 (#20)
AI0,75-8
0.75 (#18)
Weidmüller H0.25/12 0.25 (#24) Weidmüller
PZ6 Roto (0.14 to 6 mm
2
, A
WG26 to 10)
H0.34/12
0.34 (#22)
H0.5/14 0.5 (#20)
H0.75/14 0.75 (#18)
Using Twisted or Solid Wires
Wire type Conductor cross-sectional area
Conductor length
(stripping length)
Solid wire
0.2 to 1.5 mm
2
8 mm
Twisted wire
Required Tools
Use a flat-blade screwdriver to remove wires.
The recommended screw driver is as follows.
Model Manufacturer
SZF 0-0,4X2,5 Phoenix Contact

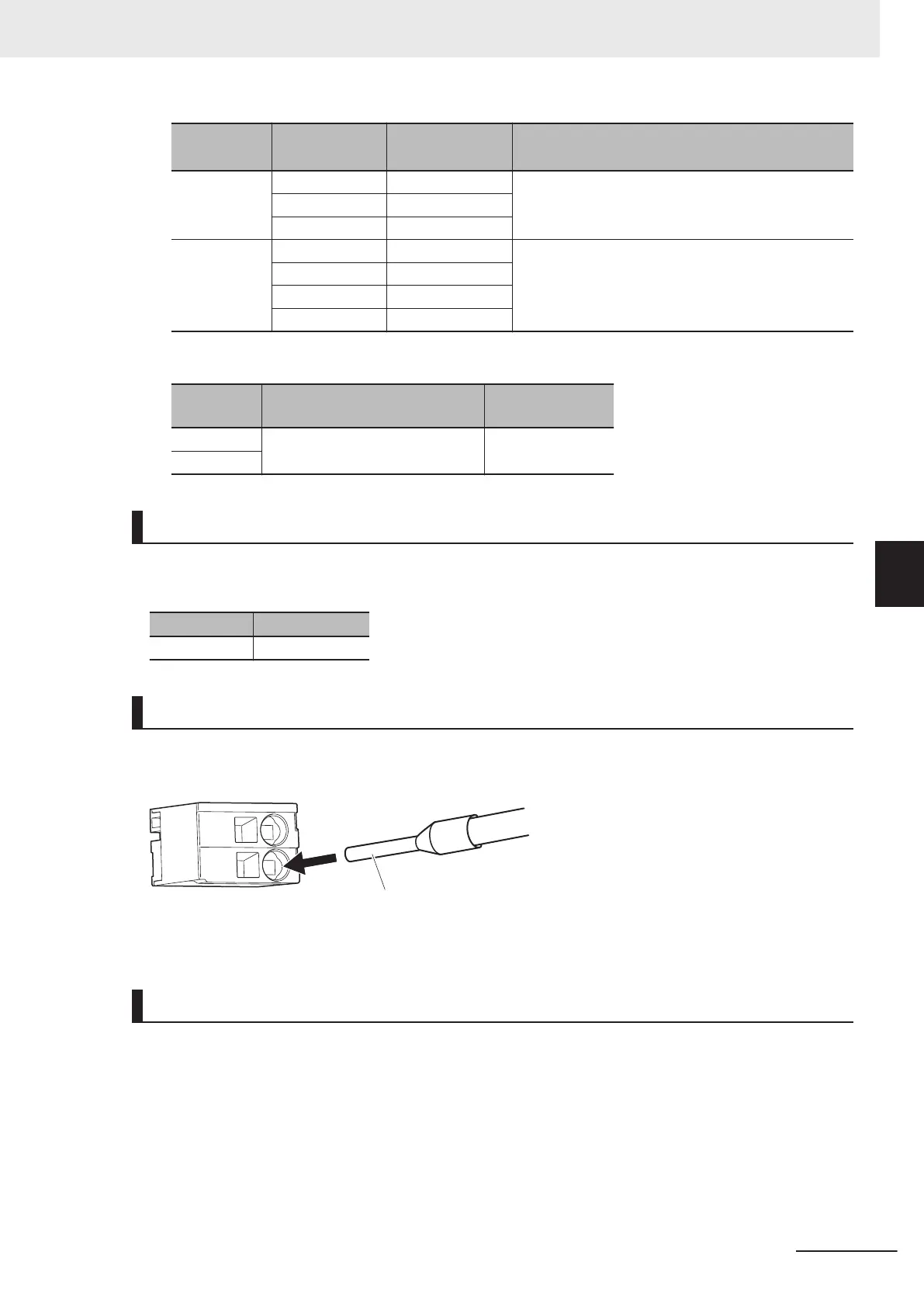

Connecting Ferrules
Insert the ferrule straight into the terminal hole.
It is not necessary to press a flat-blade screwdriver into the release hole.
After you make a connection, make sure that the ferrule is securely connected to the terminal block.
Connecting Twisted Wires/Solid Wires
Use the following procedure to connect the twisted wires or solid wires to the terminal block.
1 Press a flat-blade screwdriver straight into the release hole.
If you press in the screwdriver correctly
, you will feel the spring in the release hole, and the
screw driver will begin to incline.
5 Wiring
5-15
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-2 CPU Unit Wiring
5
5-2-3 Watchdog Timer Output Wiring
