Additional Information
You may use a self-made cable.
When you create a self-made cable, use a shielded twisted-pair cable to block the effects of
noise.

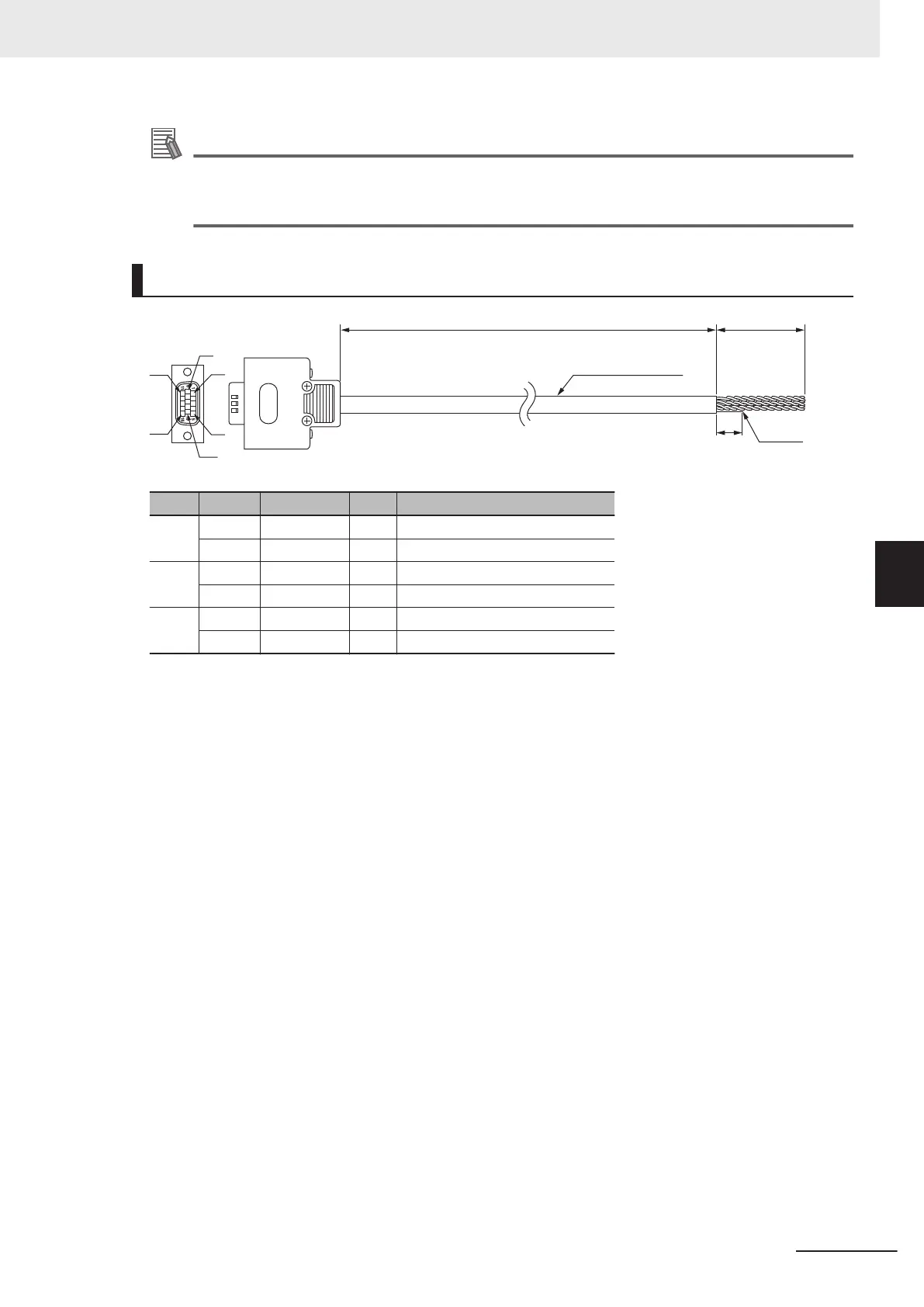

For Serial Encoder
Shield
1
0
3000 35
24AWG x 3 Pairs
6
1
5
10
15
11
Type Pin No. Cable color Mark Signal
Pair 1 11 Blue Black Encoder Power Supply (+5 VDC)
13 Blue Red Encoder Power Supply (GND)
Pair 2 4 Pink Black Encoder CLK+
9 Pink Red Encoder CLK-
Pair 3 5 Green Black Serial Encoder DAT+
10 Green Red Serial Encoder DAT-
Note The cable shield is connected to the connector shell of the encoder connector.
5 Wiring
5-45
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-6 Encoder Input Unit
5
5-6-2 Dedicated Cable
