Omron CK3W-GC 00 Series User Manual

Pulse output
*2
Output signal Output: 2 points/channel
Pulse output
method
Pulse output + directional output, or phase difference output
Pulse output
form
Line driver output
Output voltage EIA standard RS-422A line driver levels
Maximum output
frequency
10 MHz
Cable length 10 m max.
Isolation method Not isolated from internal circuit

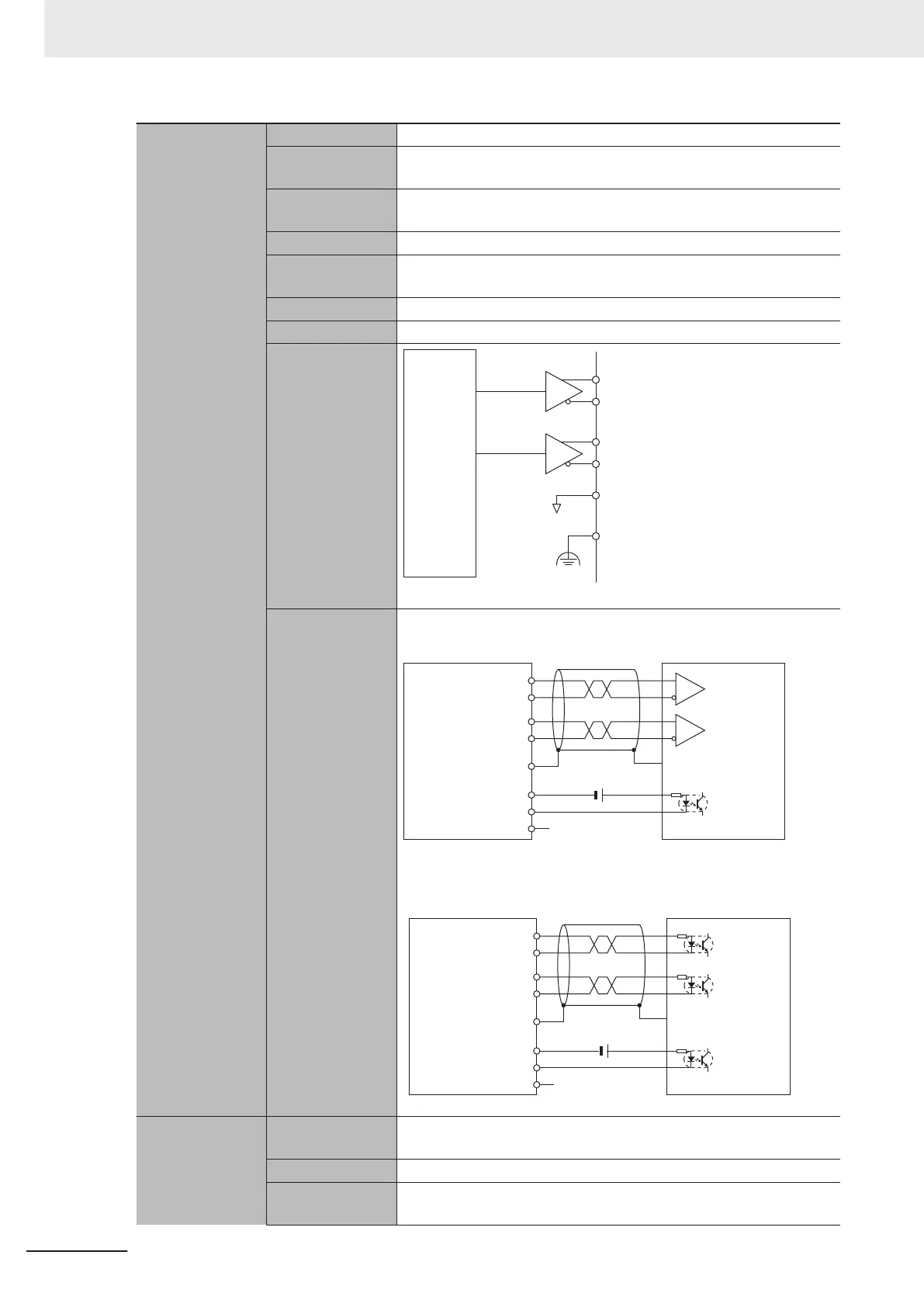

Circuit configura-
tion
Internal
ci
rcuit
Pulse output +
Directional output +
Directional output -
Connector shell
FG
0 V
GND
Pulse output -
Terminal connec-
tion diagram
Connection with a Drive with line receiver input
+
-
+
-
+
-
Drive
Pulse output +
Pulse output -
Directional output +
Directional output -
Connector shell
Amp enable NO
Amp enable NC
Amp enable common
Amp enable input
*3
Connection with a Drive with 5-VDC photocoupler input
*4
+
-
+
-
+
-
Drive
Pulse output +
Pulse output -
Directional output +
Directional output -
Connector shell
A
mp enable input
*3
Amp enable NO
Amp enable NC
Amp enable common
Amp enable out-
put
*2
Number of out-
puts
1 point/channel
Output method Relay output (N.O. + N.C.)
Maximum switch-
ing capacity
24 VDC/0.5 A
3 Configuration Units
3-30
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
