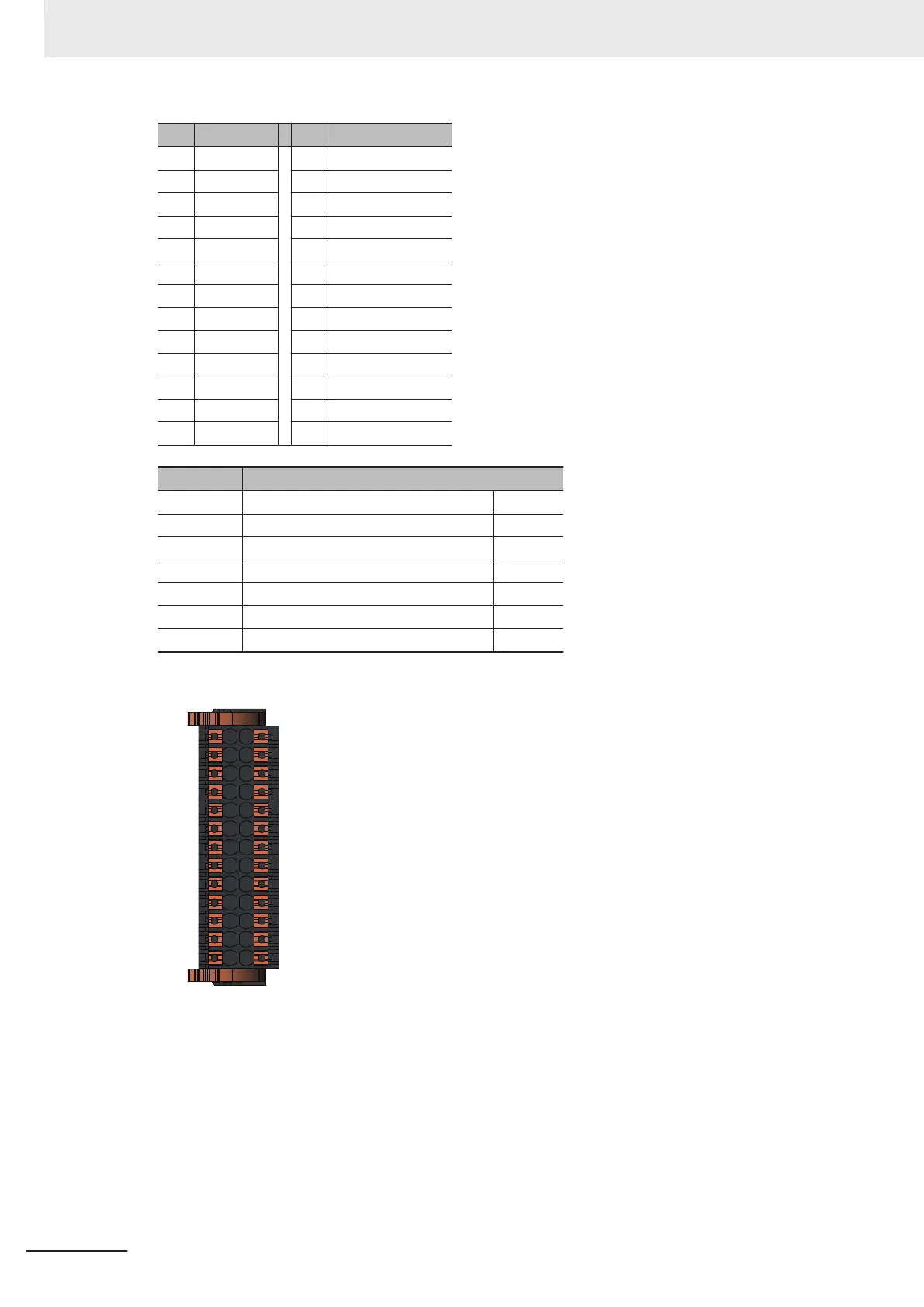

No. Signal No. Signal (4ch type)
1 EQU0 14 EQU2
2 EQU1 15 EQU3
3 COM_EQU 16 COM_EQU
4 HOME0 17 HOME2
5 PLIM0 18 PLIM2
6 NLIM0 19 NLIM2
7 USER0 20 USER2
8 V_FLAG0 21 V_FLAG2
9 HOME1 22 HOME3
10 PLIM1 23 PLIM3
11 NLIM1 24 NLIM3
12 USER1 25 USER3
13 V_FLAG1 26 V_FLAG3
Signal Signal name
EQUn Position comparison output Output
COM_EQU Position comparison output (Common) Common
HOMEn Zero Position Detection Flag Input
PLIMn Positive Limit Flag Input
NLIMn Negative Limit Flag Input
USERn General-purpose Flag Input
V_FLAGn Flag (Common) Common

PNP Type
1
13
14
26
3 Configuration Units
3-34
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
