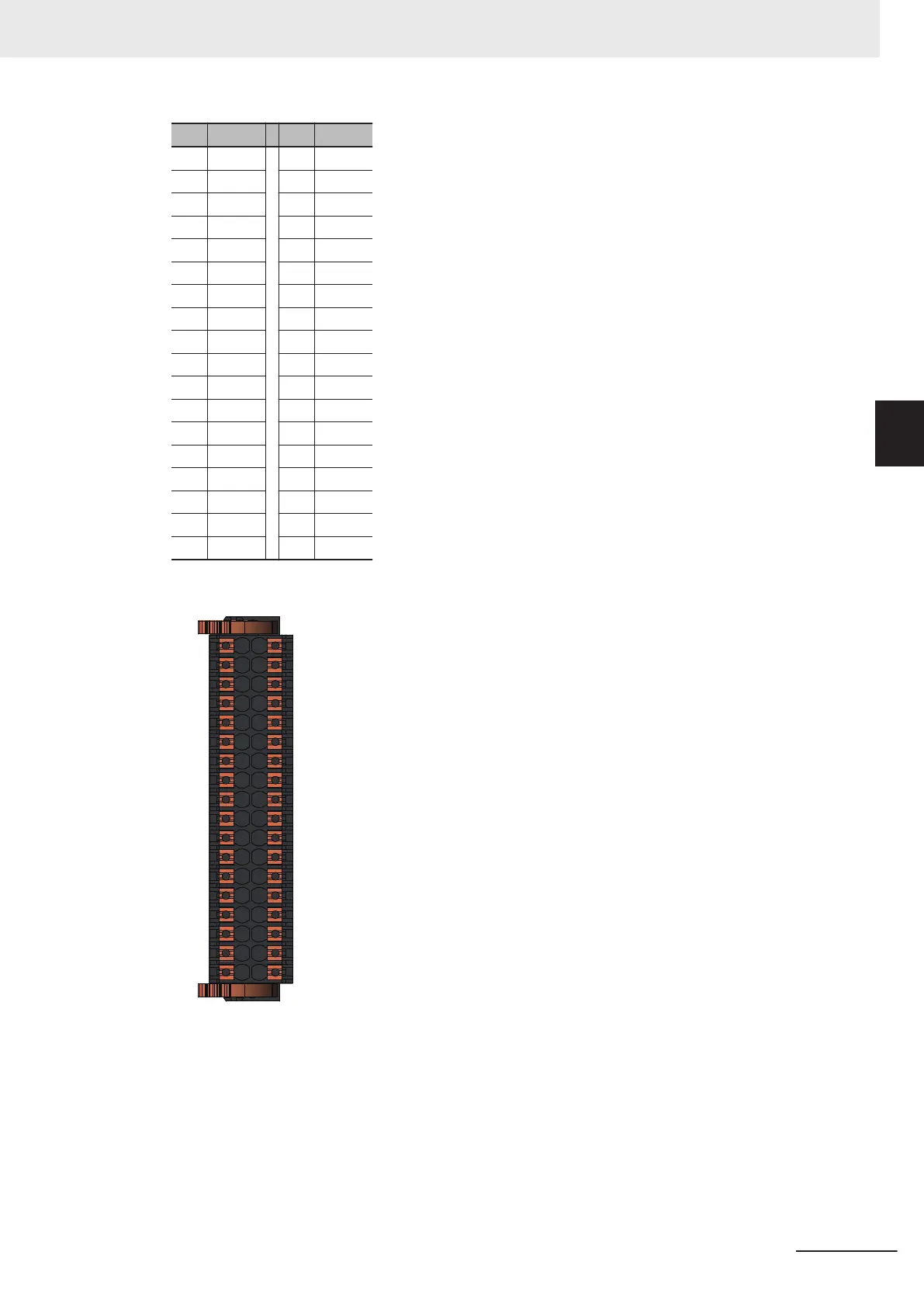

No. Signal No. Signal
1 IN00 19 IN08
2 IN01 20 IN09
3 IN02 21 IN10
4 IN03 22 IN11
5 IN04 23 IN12
6 IN05 24 IN13
7 IN06 25 IN14
8 IN07 26 IN15
9 V1 27 V1
10 OUT00 28 OUT08
11 OUT01 29 OUT09
12 OUT02 30 OUT10
13 OUT03 31 OUT11
14 OUT04 32 OUT12
15 OUT05 33 OUT13
16 OUT06 34 OUT14
17 OUT07 35 OUT15
18 V2 36 G2

PNP Type
1
18
19
38
3 Configuration Units
3-39
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-3 Axis Interface Unit
3
3-3-14 General Digital I/O Connection Terminal Block Specifications
