90
Components and Switch Settings Section 3-3

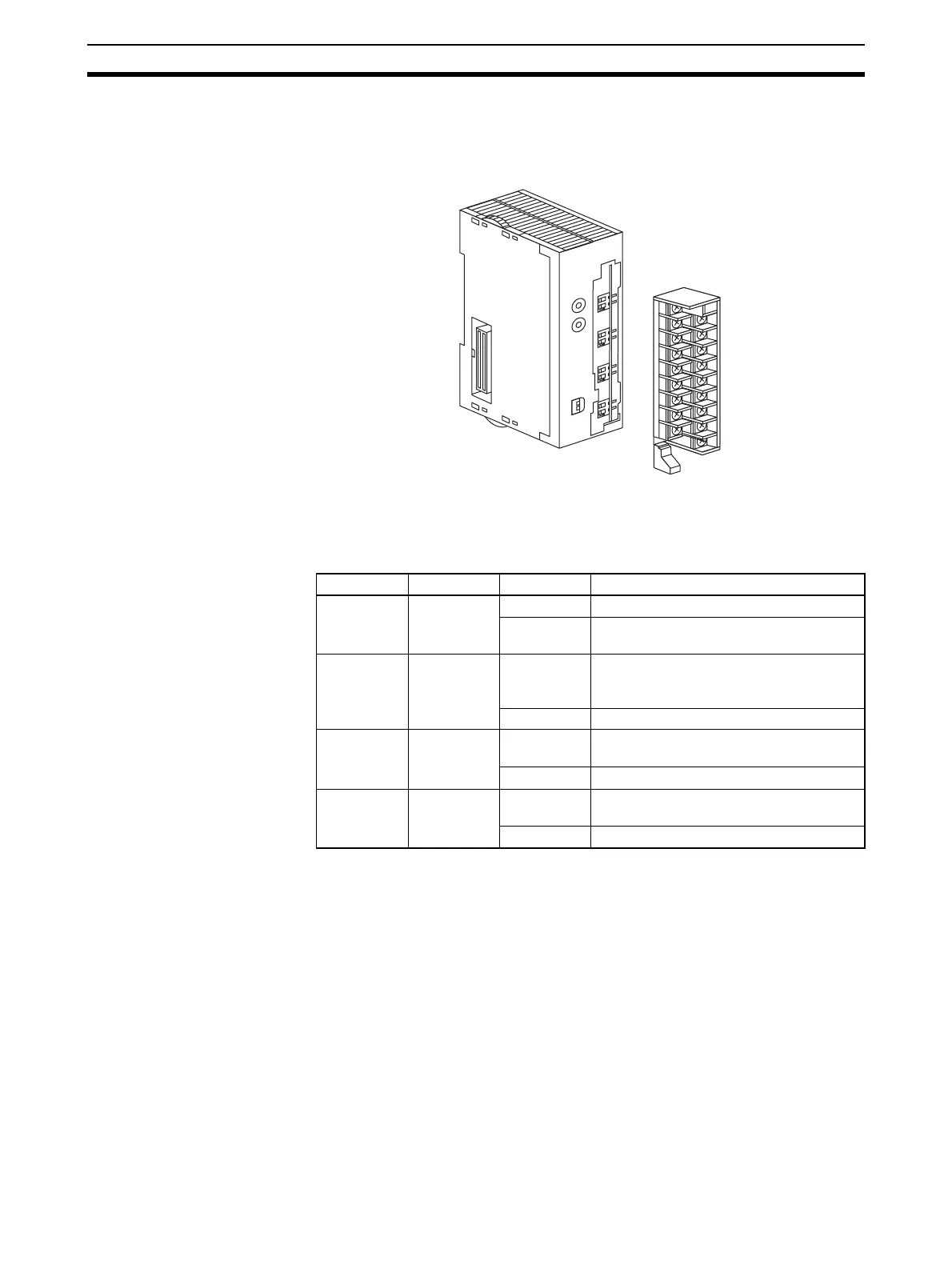

The terminal block is attached using a connector mechanism. It can be
removed by lowering the lever at the bottom of the terminal block.
The lever must normally be in the raised position. Confirm this before opera-
tion.
3-3-1 Indicators
The indicators show the operating status of the Unit. The following table
shows the meanings of the indicators.
3-3-2 Unit Number Switch
The CPU Unit and Analog Input Unit exchange data via the Special I/O Unit
Area and the Special I/O Unit DM Area. The Special I/O Unit Area and Special
I/O Unit DM Area word addresses that each Analog Input Unit occupies are
set by the unit number switch on the front panel of the Unit.
B1 A1
2
1
2
1
2
1
2
1
O
NO
NO
N
O
N
AD081
M
A
C
H
N
o
.
1
0
1
1
0
0
R
U
N
E
RC
E
R
H
A
D
J
M
O
DE
12
LED Meaning Indicator Operating status
RUN (green) Operating Lit Operating in normal mode.
Not lit Unit has stopped exchanging data with
the CPU Unit.
ERC (red) Error
detected by
Unit
Lit Alarm has occurred (such as disconnec-
tion detection) or initial settings are incor-
rect.
Not lit Operating normally.
ERH (red) Error in the
CPU Unit
Lit Error has occurred during data exchange
with the CPU Unit.
Not lit Operating normally.
ADJ (yellow) Adjusting Flashing Operating in offset/gain adjustment
mode.
Not lit Other than the above.
To Next Page
