Wiring Section 2-4

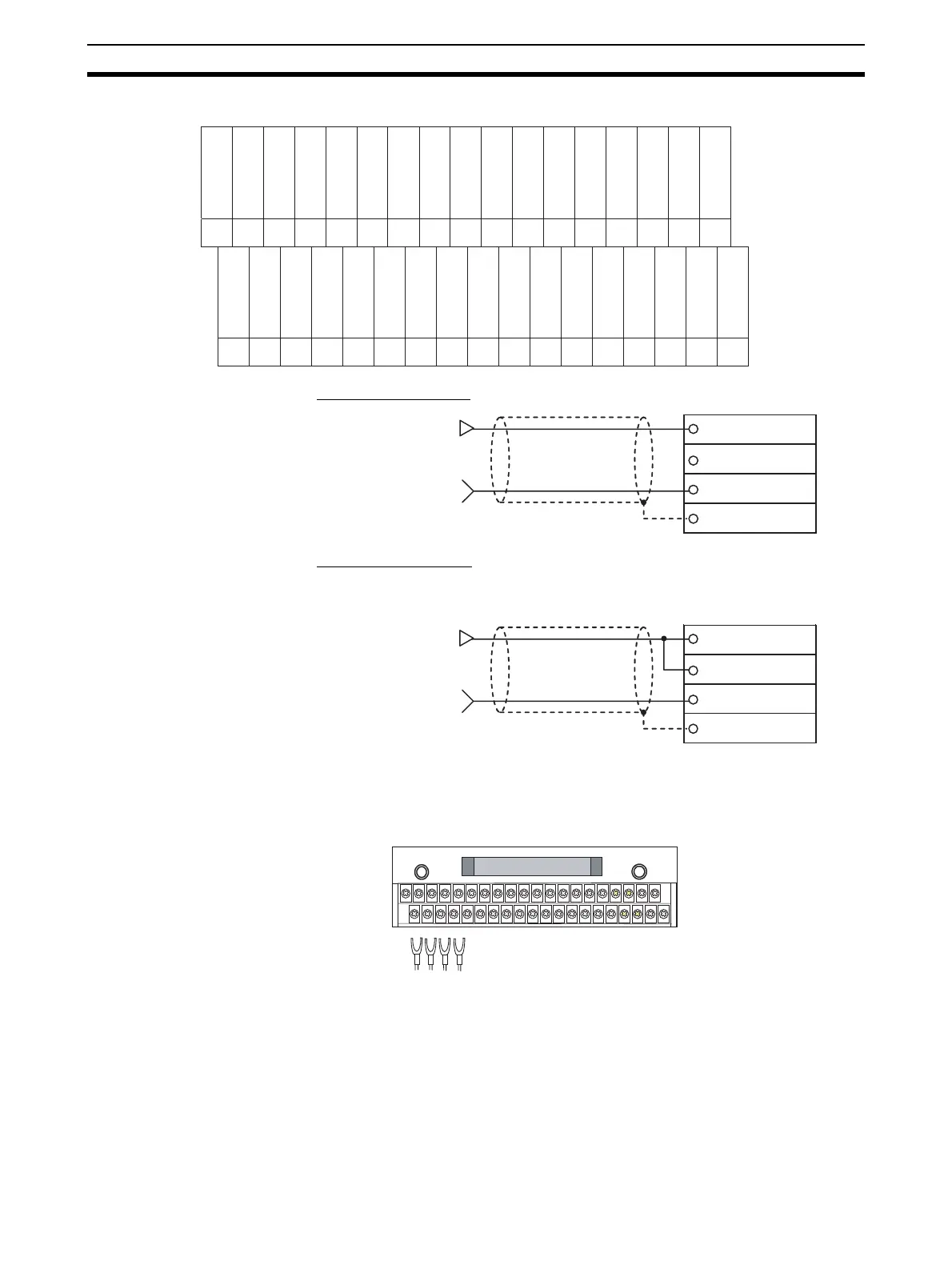

CN2 to Terminal Block Conversion
Voltage Input Wiring
Current Input Wiring
Short-circuit the input(+) and current mode terminals when using current
input.
With the CS1W-AD161, select voltage input or current input by wiring the con-
nector terminals. Voltage and current selection for input ranges 1 to 5 V and 4
to 20 mA, respectively, can also be set in DM word m+52.
Use crimp terminals to wire the terminal block.
2-4-5 Input Wiring Considerations
When wiring inputs, apply the following points to avoid noise interference and
optimize Analog Input Unit performance.
• Use two-core shielded twisted-pair cables for input connections.
• Route input cables separately from the AC cable, and do not run the Unit’s
cables near a main circuit cable, high voltage cable, or a non-PLC load
cable.
AG AG AG AG NC
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17
AG AG AG AG NC
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17
Input 9+ Input 9− Input 11+ Input 11− Input 13+ Input 13− Input 15+ Input 15−
Input 10+ Input 10− Input 12+ Input 12− Input 14+ Input 14− Input 16+ Input 16−
Current mode 9 Current mode 11 Current mode 13 Current mode 15
Current mode 10 Current mode 12 Current mode 14 Current mode 16
+
−
Shield
Input n+
Input n−
AG
Voltage input n
Current mode n
+
−
Shield
Input n+
Input n−
AG
Voltage input n
Current mode n
XW2D-34G6
Terminal Block
Conversion Unit
