Features and Functions Section 1-1

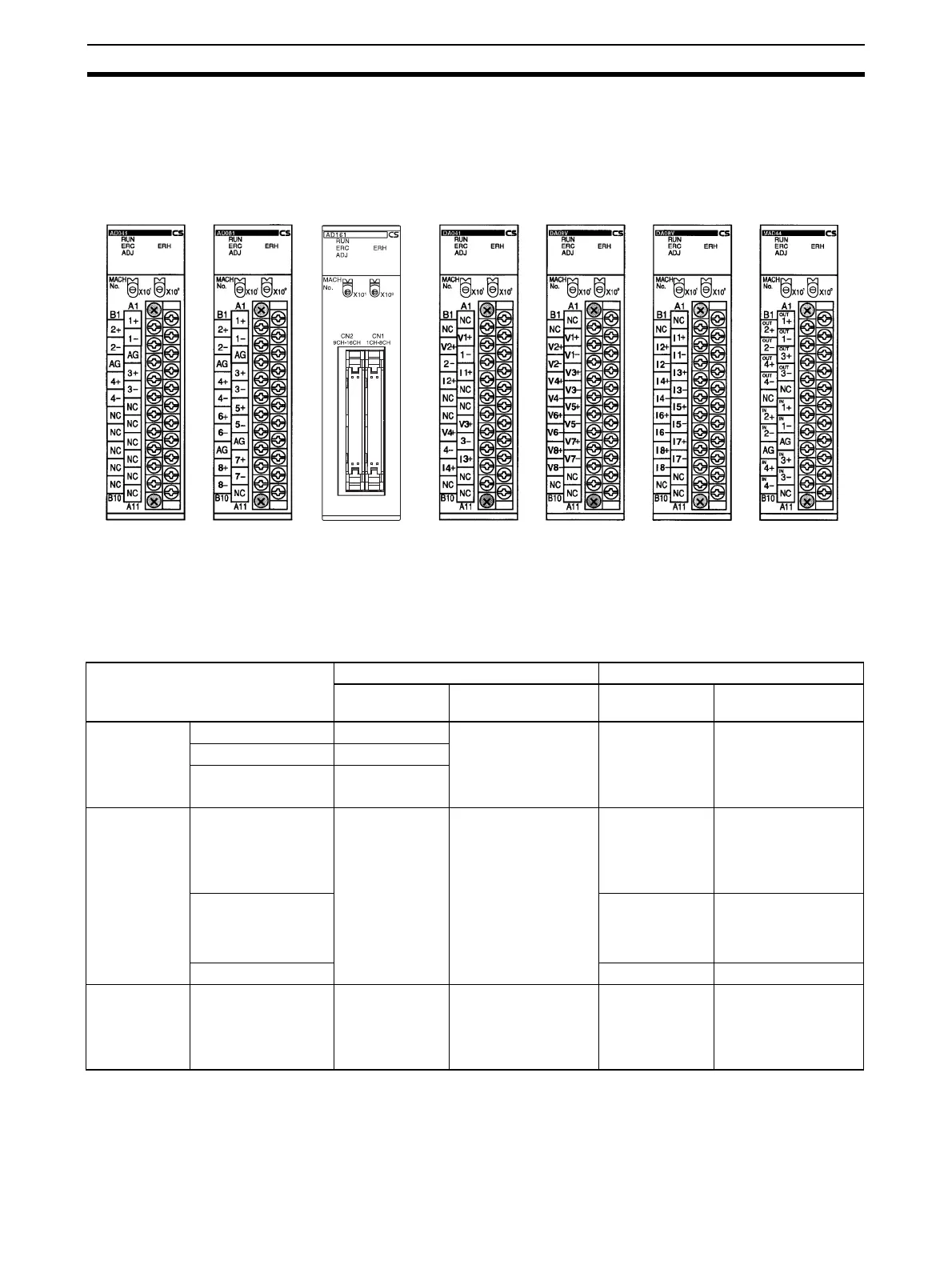

1-1 Features and Functions
CS-series Analog I/O Units
The SYSMAC CS Series includes CS1W-AD041-V1, CS1W-AD081-V1, and
CS1W-AD161 Analog Input Units that convert analog signals to digital signals
and transfer them to CS-series CPU Units, and CS1W-DA041, CS1W-DA08V,
and CS1W-DA08C Analog Output Units for converting digital data in CS-
series CPU Units into analog signals for output, and CS1W-MAD44 Analog I/
O Units that have both analog input and output functions.
CS1W-MAD44
Analog I/O Uni
t
Analog Input Units Analog Output Units
CS1W-AD041-V1 CS1W-AD081-V1 CS1W-DA041 CS1W-DA08V CS1W-DA08C
CS1W-AD161
Unit Analog input Analog output
Maximum input
points
Input signal range Maximum
output points
Output signal range
Analog Input
Units
CS1W-AD041-V1 4 –10 to 10 V
0 to 10 V
0 to 5 V
1 to 5 V
4 to 20 mA
--- ---
CS1W-AD081-V1 8
CS1W-AD161 16
Analog Out-
put Units
CS1W-DA041 --- --- 4 –10 to 10 V
0 to 10 V
0 to 5 V
1 to 5 V
4 to 20 mA
CS1W-DA08V 8 –10 to 10 V
0 to 10 V
0 to 5 V
1 to 5 V
CS1W-DA08C 8 4 to 20 mA
Analog I/O
Units
CS1W-MAD44 4 –10 to 10 V
0 to 10 V
0 to 5 V
1 to 5 V
4 to 20 mA
4 –10 to 10 V
0 to 10 V
0 to 5 V
1 to 5 V
