180
Operating Procedure Section 5-2

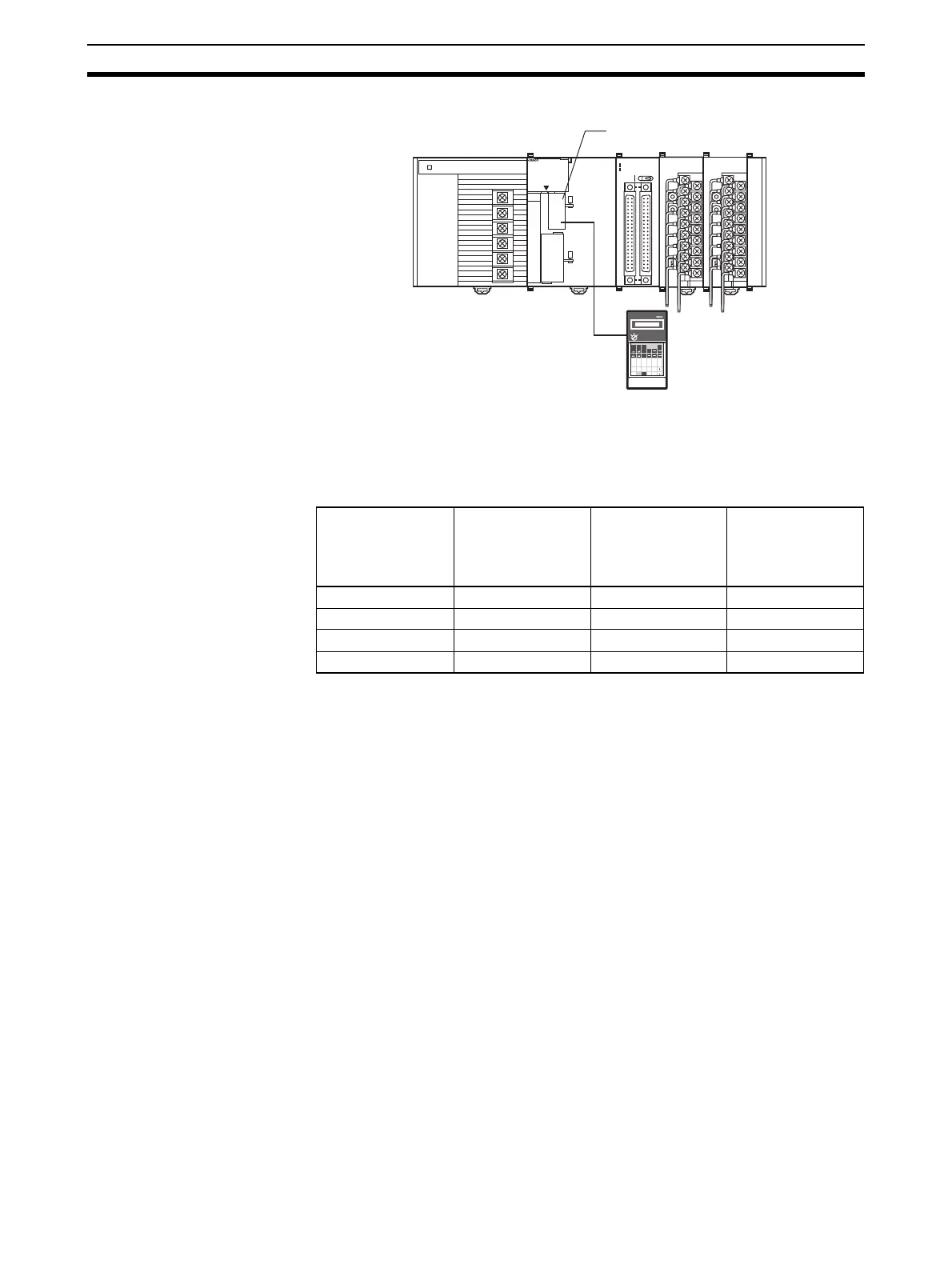

Creating Ladder Programs
The setting address D00200 is stored in words (n + 1) to (n + 3) of the Special
I/O Unit Area (CIO 2011 to CIO 2013) as a signed binary value between 0000
to 0FA0 Hex.
The following table shows the addresses used for analog output.
Note 1. The addresses are set according to the unit number of the Special I/O Unit.
Refer to 5-3-2 Unit Number Switch for further details.
Output number Output signal
range
Output setting
address
(n = CIO 2010)
See note 1.
Original
conversion
address
1 1 to 5 V (n+1) = CIO 2011 D00200
2 0 to 10 V (n+2) = CIO 2012 D00201
3 –10 to 10 V (n+3) = CIO 2013 D00202
4 Not used. --- ---
OD261
SYSMAC
CJ1G-CPU44
PROGRAMMABLE
CONTROLLER
RUN
ERR/ALM
INH
PRPHL
COMM
OPEN
PERIHERAL
PORT
MCPWR
BUSY
01234567
8 9 10 11 12 13 14 15
20
1
CN1
DC24V 0.3A
1
20
CN2
B/A
A/B
0
1
2
3
01234567
8 9 10 11 12 13 14
15
AD081
B1 A1
MACH
No.
x10
1
x10
0
RUN
ERC
ERH
ADJ
MODE
12
DA041
B1 A1
MACH
No.
x10
1
x10
0
RUN
ERC
ERH
ADJ
MODE
12
Peripheral port
Programming Console
To Next Page
