1 Introduction
1 - 2
E5@C Digital Temperature Controllers User’s Manual (H174)
1-1 Appearance, Features, and
Functions of the E5@C
This section compares the features of the E5@C with the previous E5@N Digital Controllers.
Input sampling cycle: 50 ms
Control period: 0.1 s and 0.2 s have been added.
Integral/differential time unit: Setting in increments of 0.1 s has been added.
• Number of event inputs: Increased from 2 to 4 for the E5CC and from 4 to 6 for the E5EC/E5AC.
The E5DC has only 1 event input.
The E5GC has 2 event inputs.
• Number of auxiliary outputs: Increased from 2 to 3 for the E5CC and from 3 to 4 for the E5EC/E5AC.
The E5DC, E5CC-U, or E5GC has 2 auxiliary outputs.
• Remote SP inputs: A remote SP input that treats the external analog signal at the set point
(SP) has been added.
Universal input: The input sensor can be selected freely from the following: Thermocouple, resis-
tance thermometer, ES1B Infrared Temperature Sensor, current, and voltage.
Digit shift: When setting the SP or other parameters, you can use a Shift Key (assigned to the PF Key)
to shift the digit that is being set to aid changing the set values.
This port allows you to change or set parameters from the Setup Tool even when the Digital Controller
is installed in a panel.

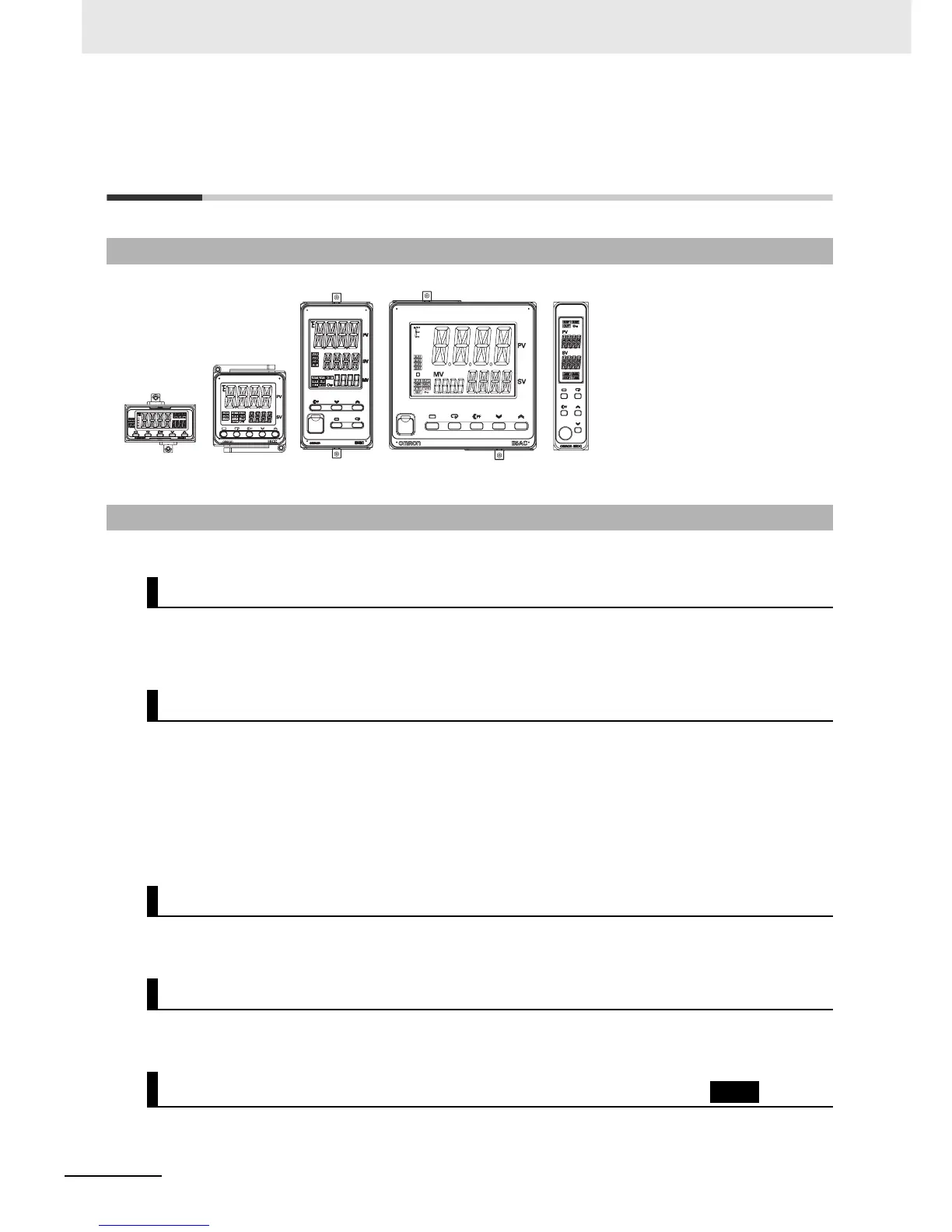

1-1-1 Appearance
• A stylish design that gives a new
look to control panels.
• Large display characters and white
backlight for better visibility.
• A compact size to help downsize
control panels.
• Much faster sampling and greater
expandability than expected in this
class of Digital Controller.
• Even easier to use than previous
models.
1-1-2 Features
High-speed Control Capability
I/O Expandability
Universal Input Capability
Easier Numeric Inputs with a Digit Shift Key
Setup Tool Port on Front Panel of the E5EC/E5AC/E5DC
E5CC/E5CC-U
E5GC
E5EC E5AC E5DC
