A-2 Current Transformer (CT)
*1 The maximum continuous current of the E5@C is 50 A.
• E54-CT1
• E54-CT3
A-2-1 Specifications
Item Specifications
Model number E54-CT1 E54-CT3
Max. continuous current
50 A
120 A
*1
Dielectric strength 1,000 VAC (for 1 min)
Vibration resistance
50 Hz, 98 m/s
2
Weight Approx. 11.5 g Approx. 50 g
Accessories None Armature (2), Plug (2)

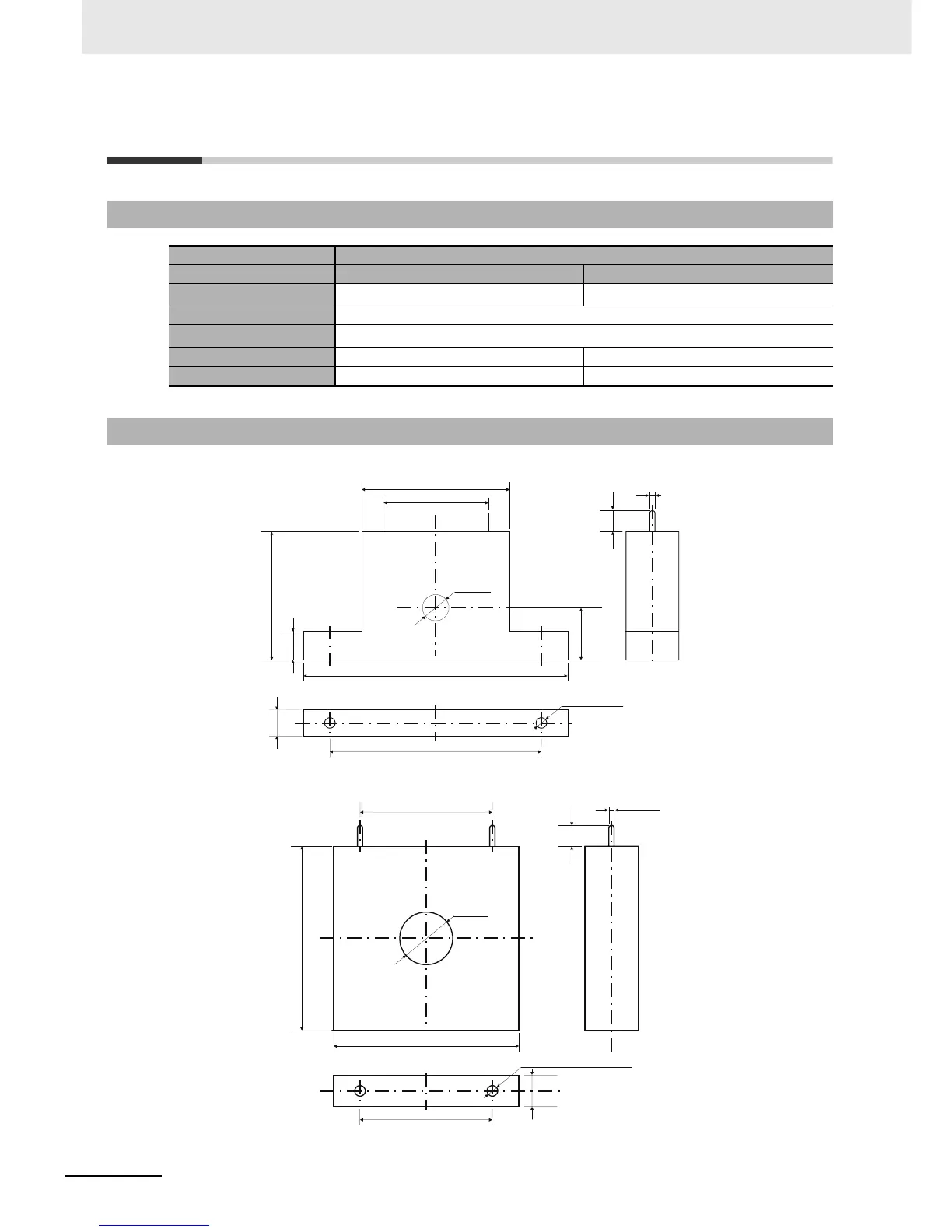

A-2-2 Dimensions (Unit: mm)
21
15
25
3
10
30
40
2.8
5.8 dia.
Two, 3.5 dia.
10.5
7.5
30
40
15
9
12 dia.
Two, M3 holes, depth: 4
2.36 dia.
40
30
