2 - 13
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-1 Installation
2
2-1-3 Mounting

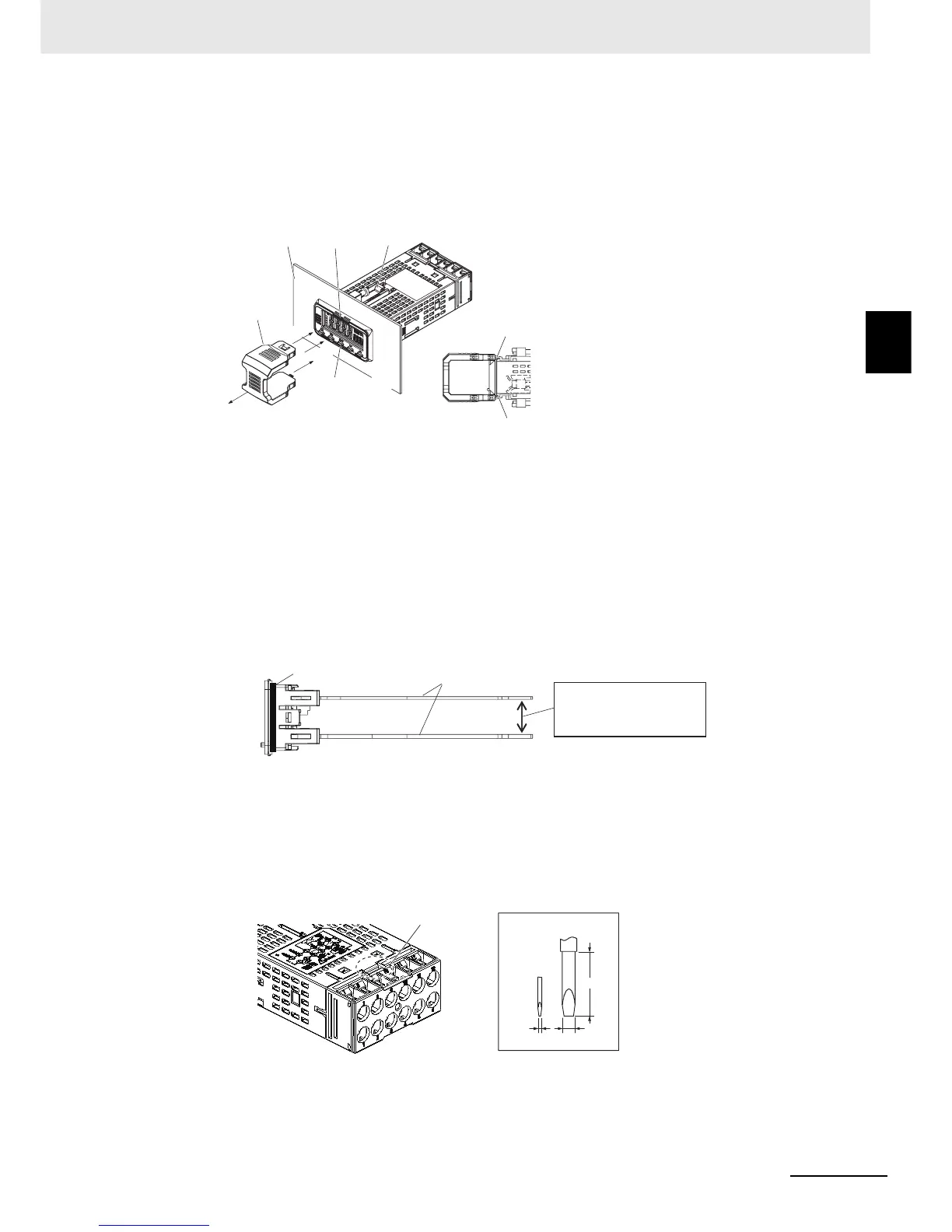

Removing the Digital Controller from the Case
You can use the Y92F-55 Draw-out Jig to remove the interior body of the Digital Controller from the case to
perform maintenance without removing the terminal wiring. This is possible only for the E5GC. It is NOT
possible for the E5CC, E5CC-U, E5EC, E5AC, or E5DC. Check the specifications of the case and Digital
Controller before removing the Digital Controller from the case.
(1) Insert the Y92F-55 Draw-out Jig securely into the Draw-out Jig insertion holes (one hole
each on the top and bottom) and press it in firmly until the hooks engage on the top and
bottom.
(2) Pull out the Y92F-55 Draw-out Jig together with the front panel.
Do not apply unnecessary force.
(3) When inserting the body of the Digital Controller into the case, make sure the PCBs are
parallel to each other, make sure that the sealing rubber is in place, and press the E5GC
toward the rear case into position. While pushing the E5GC into place, push down on the
hooks on the top and bottom surfaces of the rear case so that the hooks are securely
locked in place. Be sure that electronic components do not come into contact with the case.
Removing the Terminal Block
The terminal block can be removed from the E5GC. Doing so is not possible with the E5CC, E5CC-U, E5EC,
E5AC, E5DC, or E5AC.
(1) Insert a flat-blade screwdriver into the tool holes (one on the top and one on the bottom) to
release the hooks. Do not apply excessive force.
(2) Pull the terminal block out while the hooks are released.
Draw-out Jig
insertion hole
Draw-out Jig
insertion hole
1
1
2
Y92F-55
Draw-out Jig
Panel
Mounting Adapter
3
Hook
Hook
Right Side View of the E5GC
Sealing rubber
PCBs
Keep the PCBs parallel to
each other and inset them
into the rear case.
Insert a tool.
2.00.4
20 min.
Flat-blade screwdriver
(unit: mm)
