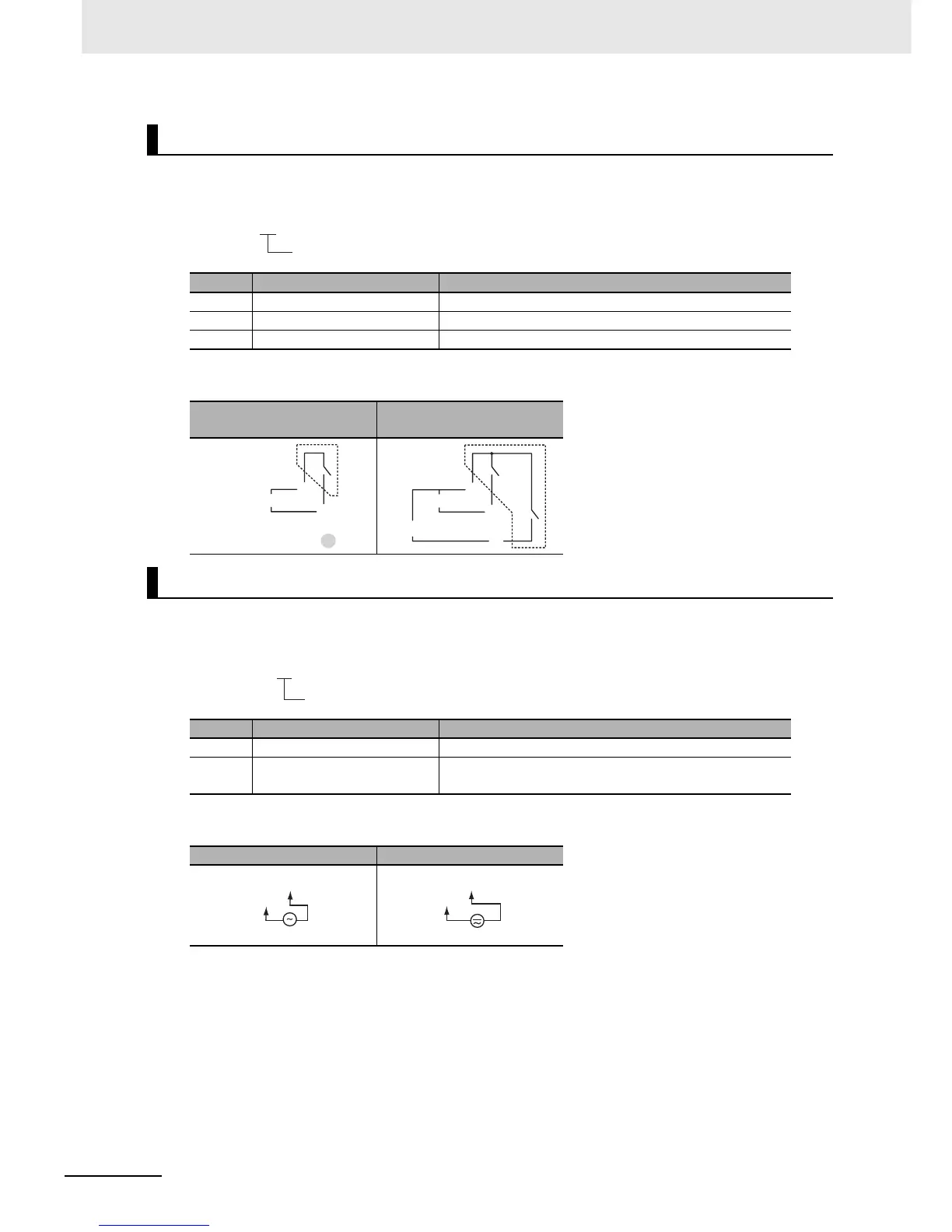

2 Preparations
2 - 22
E5@C Digital Temperature Controllers User’s Manual (H174)
z Model Numbers
The number of auxiliary outputs on the E5CC-U is given in the following location in the model number.
z Terminal Details
z Model Numbers
The input power supply specification of the E5CC-U is given in the following location in the model number.
z Terminal Details
Auxiliary Outputs
Code Auxiliary outputs Specification
0 None None
1 Model with 2 auxiliary outputs SPST-NO, 250 VAC, 3 A
2 Model with 3 auxiliary outputs SPST-NO, 250 VAC, 3 A
Model with 1 auxiliary
output
Model with 2 auxiliary
outputs
Input Power Supply
Code Specification Power consumption
A 100 to 240 VAC, 50/60 Hz 5.2 VA max.
D 24 VAC, 50/60 Hz
24 VDC (no polarity)
3.1 VA max./1.6 W max.
100 to 240 VAC 24 VAC/DC
E5CC-@@ @ @ U M-@@@
No. of auxiliary outputs
G
Auxiliary output 1
H
I
Auxiliary output 2
Auxiliary output 1
H
I
G
E5CC-@@ @ @ U M-@@@
Input power supply
K
J
(No polarity)
K
J
