2 - 25
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-2 Using the Terminals
2

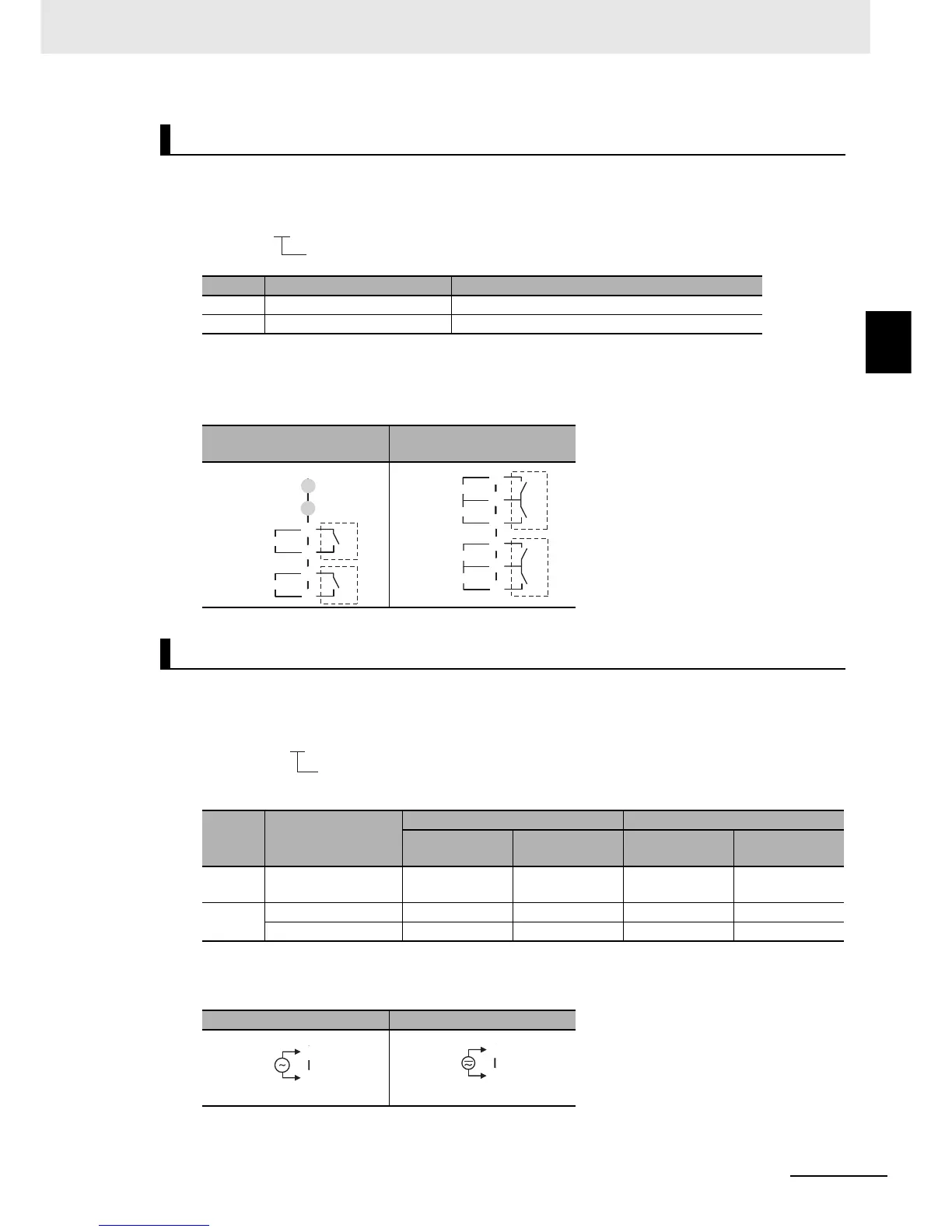

2-2-3 E5EC/E5AC Terminal Block Wiring Example
z Model Numbers
The number of auxiliary outputs is given in the following location in the model number.
* These cannot be selected if 5 (screw terminals with cover) is selected for the terminal type.
z Terminal Details
Do not connect anything to the terminals that are shaded gray.
z Model Numbers
The input power supply specification is given in the following location in the model number.
The codes that are given in the following table show the specification.
z Terminal Details
Details on the input power supply terminals are shown below.
Auxiliary Outputs
Code Auxiliary outputs Specification
2* Model with 2 auxiliary outputs SPST-NO, 250 VAC, 3 A
4 Model with 4 auxiliary outputs SPST-NO, 250 VAC, 2 A
Model with 2 auxiliary
outputs
Model with 4 auxiliary
outputs
Input Power Supply
Code Specification
E5EC power consumption E5AC power consumption
Option number
000
Other option
numbers
Option number
000
Other option
numbers
A 100 to 240 VAC
(50/60 Hz)
6.6 VA max. 8.3 VA max. 7.0 VA max. 9.0 VA max.
D 24 VAC, 50/60 Hz 4.1 VA max. 5.5 VA max. 4.2 VA max. 5.6 VA max.
24 VDC (no polarity) 2.3 W max. 3.2 W max. 2.4 W max. 3.4 W max.
100 to 240 VAC 24 VAC/DC
E5@C-@@ @ @ @ M-@@@
No. of auxiliary outputs
G
H
I
J
K
L
Auxiliary output 2
Auxiliary output 1
J
K
L
Auxiliary output 2
Auxiliary output 1
G
H
I
Auxiliary output 4
Auxiliary output 3
E5@C-@@ @ @ @ M-@@@
Input power supply
A
B
(no polarity)
A
B
