* Control output 1 and control output 2 are not isolated.
E5CC-U
QQ* 2 voltage outputs (for driving SSRs) PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)
CQ* Linear current output
(control output 1)
4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:
Approx. 10,000
Voltage output (for driving SSR)
(control output 2)
PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)

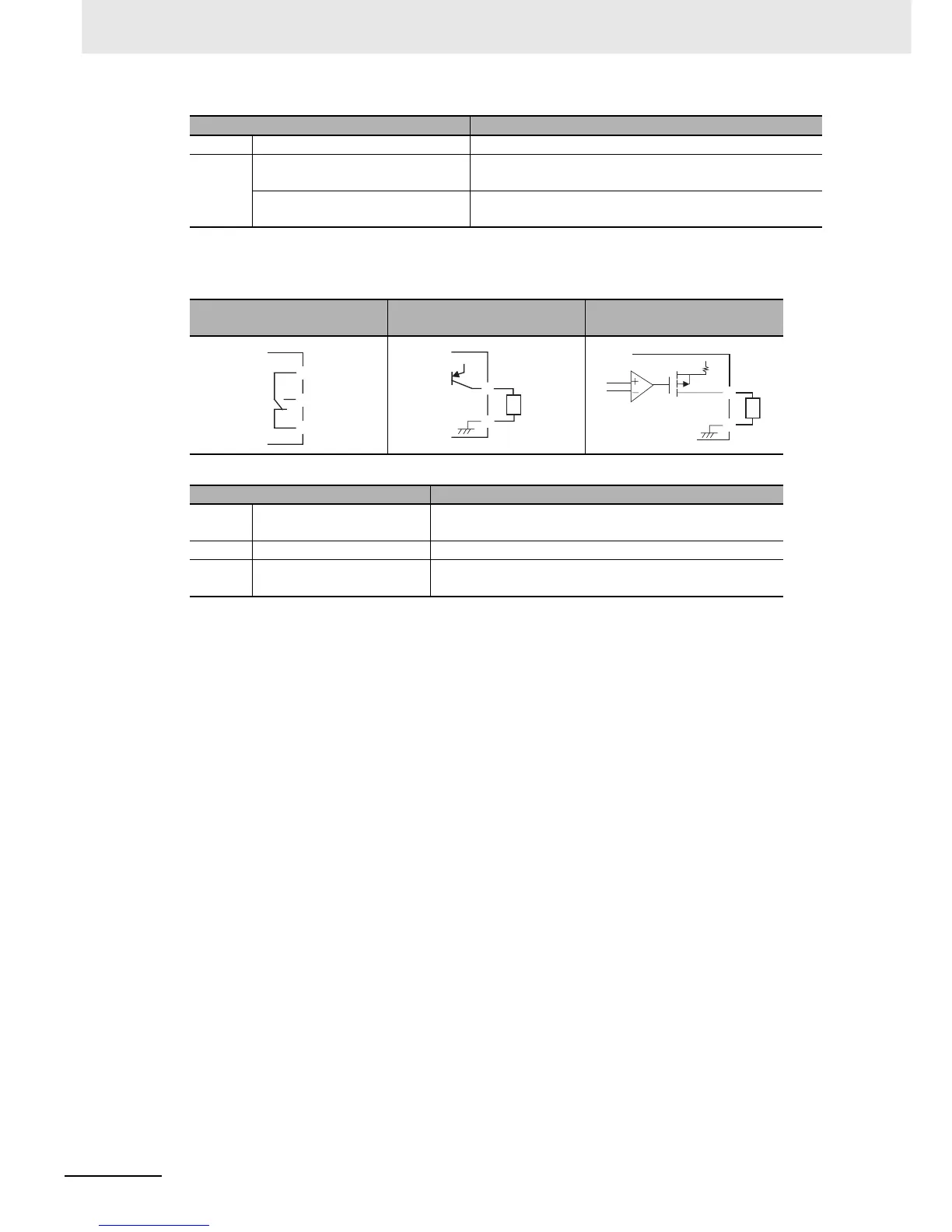

RW (relay, SPDT)
QX (voltage output (for
driving SSR))
CX (linear current)
Output type Specification
RW Relay (SPDT) SPDT, 250 VAC, 3 A (resistive load), electrical life: 100,000
operations
QX Voltage (for driving SSR) PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)
CX Linear current 4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω max.
Resolution: Approx. 10,000
Output type Specification
E
F
D
+v
+
−
L
E
D
+v
+
L
−
E
D
